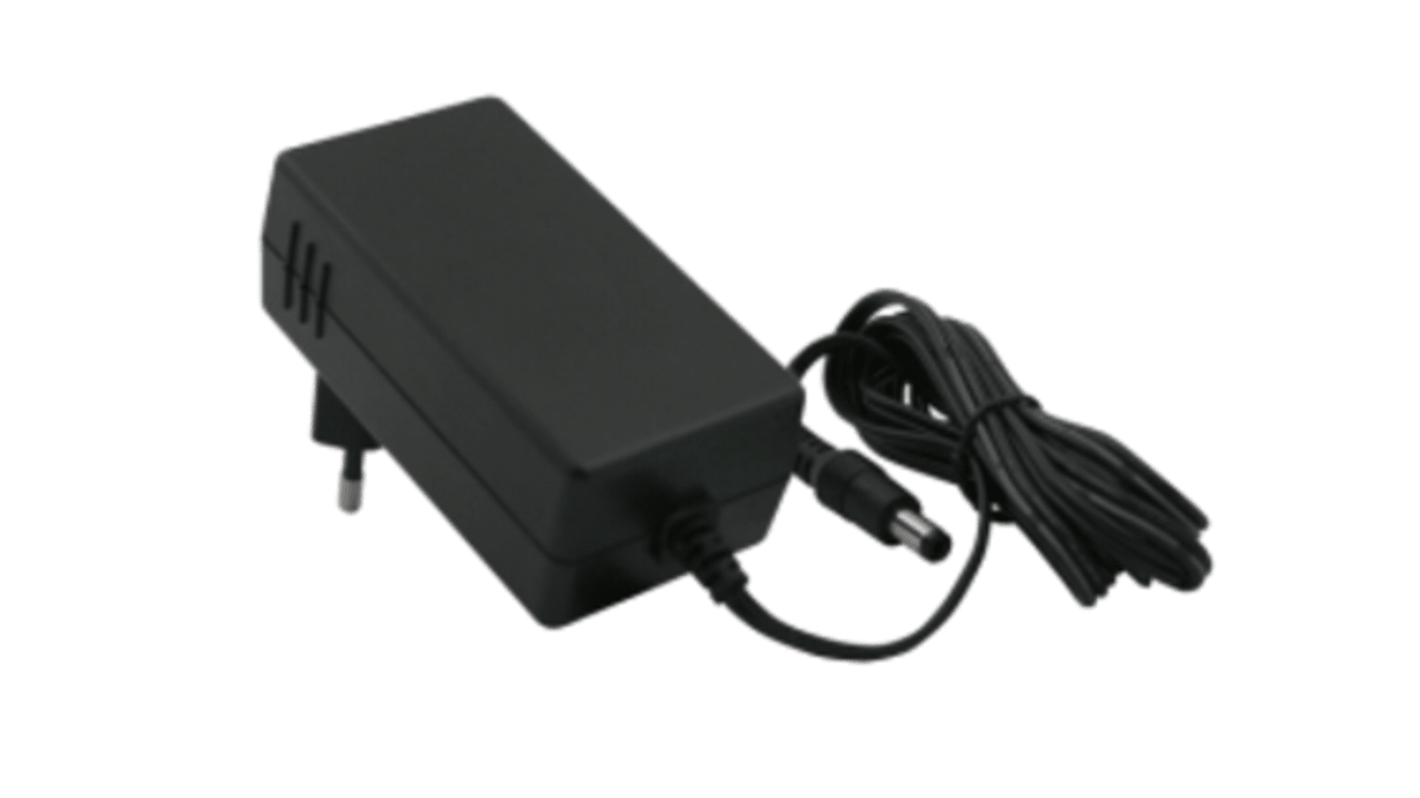

RS PRO 42W Plug-In AC/DC Adapter 12V dc Output, 3.5A Output
- RS Stock No.:
- 206-4932
- Distrelec Article No.:
- 304-05-451
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£32.61
(exc. VAT)
£39.13
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 62 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £32.61 |
5 - 9 | £31.63 |
10 - 24 | £30.65 |
25 - 49 | £29.67 |
50 + | £28.70 |
*price indicative
- RS Stock No.:
- 206-4932
- Distrelec Article No.:
- 304-05-451
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Adapter Type | Plug-In Adapter | |
Plug Type | 2-Pin Euro | |
Output Voltage | 12V dc | |
Input Voltage | 90 → 264V ac | |
Output Current | 3.5A | |
Maximum Temperature | +40°C | |
Output Connector | 5.5 x 2.1 x 12mm DC Jack | |
Input Connector | EU Plug | |
Number of Outputs | 1 | |
Power Rating | 42W | |
Regulated/Unregulated | Regulated | |
Cable Length | 1.5m | |
Medical Approved | No | |
Efficiency | 88.47% | |
MTBF | 40,000h | |
Length | 83mm | |
Energy Efficiency Level | VI | |
Minimum Temperature | -10°C | |
Depth | 46.6mm | |
Type | AC/DC Adapter | |
Width | 68.6mm | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Adapter Type Plug-In Adapter | ||
Plug Type 2-Pin Euro | ||
Output Voltage 12V dc | ||
Input Voltage 90 → 264V ac | ||
Output Current 3.5A | ||
Maximum Temperature +40°C | ||
Output Connector 5.5 x 2.1 x 12mm DC Jack | ||
Input Connector EU Plug | ||
Number of Outputs 1 | ||
Power Rating 42W | ||
Regulated/Unregulated Regulated | ||
Cable Length 1.5m | ||
Medical Approved No | ||
Efficiency 88.47% | ||
MTBF 40,000h | ||
Length 83mm | ||
Energy Efficiency Level VI | ||
Minimum Temperature -10°C | ||
Depth 46.6mm | ||
Type AC/DC Adapter | ||
Width 68.6mm | ||
- COO (Country of Origin):
- CN
RS PRO 12 Vdc AC / DC Adapter and Plug-in Power Supply
Introducing the RS PRO Universal Plug-in Power Supply a high-quality, low-cost switching plug-in power supply unit suitable for generic use. The power supply comes with a European 2 Pin Plug and a 5.5mm x 2.1mm x 12mm DC Jack output connector, making this a multi-use supply that can be used in a wide range of applications and features an overload and circuit proof function for additional protection. This RS PRO power supply is cost-effective, highly reliable and designed for use in multiple countries, making it the first choice for your needs.
Features and Benefits:
- This cost-effective and reliable RS PRO plug-in power supply is a universal power supply suited to a wide range of applications
- The ultra-slim switching adapter offers double insulation for added protection, ErP Step 2 compliance and low standby power consumption
- It comes with a European 2 Pin Plug and a 5.5mm x 2.1mm x 12mm DC Jack output connector
- Equipped with overload and short circuit protection
Applications:
Universal power adapters are very useful accessories that can be used for a wide range of PSU and battery charger applications and in a variety of environments. They often offer a multi-use or all in one solution to provide a convenient external power supply for the user and can often be used to power or charge electronic devices:
- Single-board computers and peripherals
- Gaming machines
- Network equipment
- Point of Sale equipment
- Telecommunications
- Wireless communications
- Tablets / Smartphones
Universal input voltage of 90VAC to 264VAC
Output current rating is 3.5A
42W power rating
Double insulated Small low profile package
Overload, short circuit protection
Lowest standby power consumption
EU CoC V5 tier 2/ Energy Star DOE VI
Output current rating is 3.5A
42W power rating
Double insulated Small low profile package
Overload, short circuit protection
Lowest standby power consumption
EU CoC V5 tier 2/ Energy Star DOE VI
