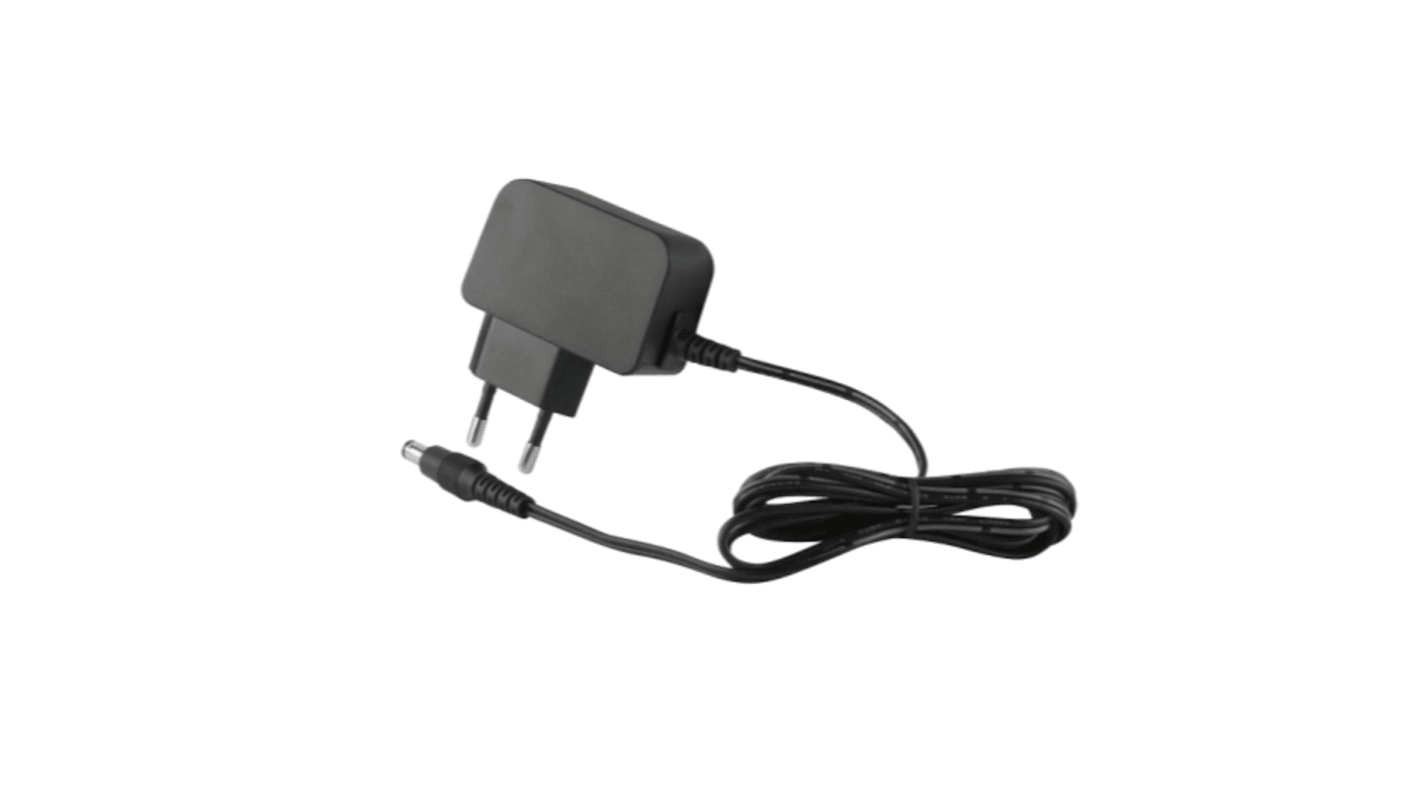

RS PRO 18W Plug-In AC/DC Adapter 12V dc Output, 1.5A Output
- RS Stock No.:
- 206-4922
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£13.27
(exc. VAT)
£15.92
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship
- Plus 94 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £13.27 |
| 5 - 9 | £12.86 |
| 10 - 24 | £12.47 |
| 25 - 49 | £12.07 |
| 50 + | £11.67 |
*price indicative
- RS Stock No.:
- 206-4922
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Adapter Type | Plug-In Adapter | |
| Plug Type | 2-Pin Euro | |
| Output Voltage | 12V dc | |
| Input Voltage | 90 → 264V ac | |
| Output Current | 1.5A | |
| Maximum Temperature | +40°C | |
| Output Connector | 5.5 x 2.1 x 12mm DC Jack | |
| Input Connector | EU Plug | |
| Number of Outputs | 1 | |
| Power Rating | 18W | |
| Regulated/Unregulated | Regulated | |
| Cable Length | 1.5m | |
| Medical Approved | No | |
| MTBF | 40,000h | |
| Efficiency | 85.63% | |
| Energy Efficiency Level | VI | |
| Length | 73mm | |
| Width | 30mm | |
| Type | AC/DC Adapter | |
| Depth | 56mm | |
| Minimum Temperature | -10°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Adapter Type Plug-In Adapter | ||
Plug Type 2-Pin Euro | ||
Output Voltage 12V dc | ||
Input Voltage 90 → 264V ac | ||
Output Current 1.5A | ||
Maximum Temperature +40°C | ||
Output Connector 5.5 x 2.1 x 12mm DC Jack | ||
Input Connector EU Plug | ||
Number of Outputs 1 | ||
Power Rating 18W | ||
Regulated/Unregulated Regulated | ||
Cable Length 1.5m | ||
Medical Approved No | ||
MTBF 40,000h | ||
Efficiency 85.63% | ||
Energy Efficiency Level VI | ||
Length 73mm | ||
Width 30mm | ||
Type AC/DC Adapter | ||
Depth 56mm | ||
Minimum Temperature -10°C | ||
- COO (Country of Origin):
- CN
RS PRO 12 Vdc AC / DC Adapter and Plug-in Power Supply
Introducing the RS PRO Universal Plug-in Power Supply a high-quality, low-cost switching plug-in power supply unit suitable for generic use. The power supply comes with a European 2 Pin Plug and a 5.5mm x 2.1mm x 12mm DC Jack output connector, making this a multi-use supply that can be used in a wide range of applications and features an overload and circuit proof function for additional protection. This RS PRO power supply is cost-effective, highly reliable and designed for use in multiple countries, making it the first choice for your needs.
Features and Benefits:
- This cost-effective and reliable RS PRO plug-in power supply is a universal power supply suited to a wide range of applications
- The ultra-slim switching adapter offers double insulation for added protection, ErP Step 2 compliance and low standby power consumption
- It comes with a European 2 Pin Plug and a 5.5mm x 2.1mm x 12mm DC Jack output connector
- Equipped with overload and short circuit protection
Applications:
Universal power adapters are very useful accessories that can be used for a wide range of PSU and battery charger applications and in a variety of environments. They often offer a multi-use or all in one solution to provide a convenient external power supply for the user and can often be used to power or charge electronic devices:
- Single-board computers and peripherals
- Gaming machines
- Network equipment
- Point of Sale equipment
- Telecommunications
- Wireless communications
- Tablets / Smartphones
Universal input voltage of 100VAC to 264VAC
Output current rating is 1.5A
18W power rating
Two-pin Euro Plug style casing
Lightweight and portable with a low profile, compact design of 56mm x 27mm x 73mm
1.5m cable length
Class II double insulation - the DC output wires are isolated from the AC input
Low standby power consumption of just 0.075 W
Overload and short circuit protection
Meets the EU CoC Tier 2 efficiency standard and Energy Star DOE (Department of Energy) VI specifications
Output current rating is 1.5A
18W power rating
Two-pin Euro Plug style casing
Lightweight and portable with a low profile, compact design of 56mm x 27mm x 73mm
1.5m cable length
Class II double insulation - the DC output wires are isolated from the AC input
Low standby power consumption of just 0.075 W
Overload and short circuit protection
Meets the EU CoC Tier 2 efficiency standard and Energy Star DOE (Department of Energy) VI specifications
