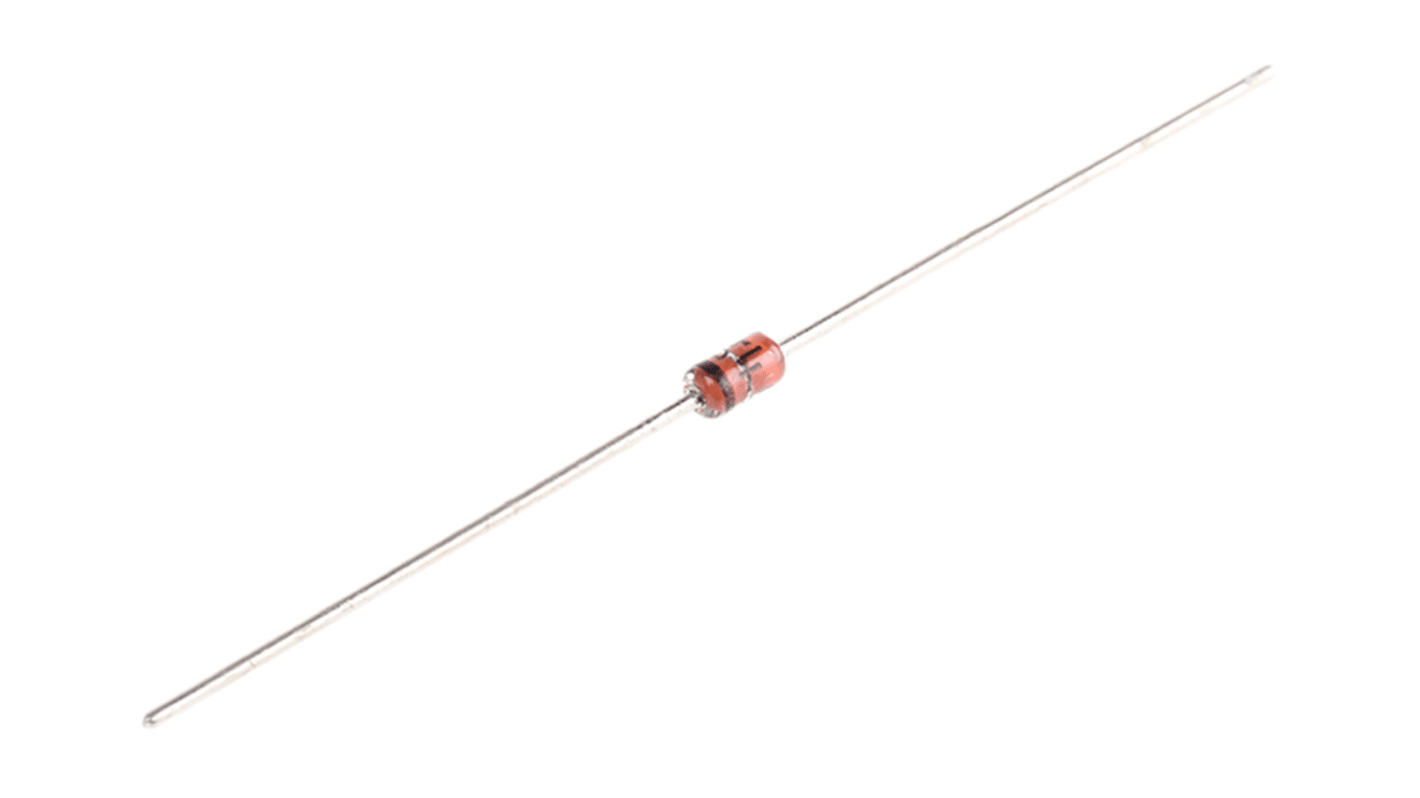

onsemi, 6.2V Zener Diode 5% 1 W Through Hole 2-Pin DO-41
- RS Stock No.:
- 805-0056
- Mfr. Part No.:
- 1N4735ATR
- Brand:
- onsemi
Available to back order for despatch 05/11/2024
Added
Price Each (In a Pack of 200)
£0.076
(exc. VAT)
£0.091
(inc. VAT)
| Units | Per unit | Per Pack* |
| 200 + | £0.076 | £15.20 |
| *price indicative | ||
- RS Stock No.:
- 805-0056
- Mfr. Part No.:
- 1N4735ATR
- Brand:
- onsemi
Technical Reference
Legislation and Compliance
Product Details
Zener Diodes 1W, 1N4728A - 1N4758A Series, Fairchild Semiconductor
This is a complete series of 1 Watt Zener diode with limits and excellent operating characteristics that reflect the superior capabilities of silicon-oxide passivated junctions. All this in an axial-lead hermetically sealed glass package that offers protection in all common environmental conditions.
Zener Voltage Range - 3.3 V to 91 V
ESD Rating of Class 3 (>16 KV) per Human Body Model
DO-41 (DO-204AL) Package
Double Slug Type Construction
Metallurgical Bonded Construction
Oxide Passivated Die
Mechanical Characteristics:
CASE: Double slug type, hermetically sealed glass
FINISH: All external surfaces are corrosion resistant and leads are readily solderable
MAXIMUM LEAD TEMPERATURE FOR SOLDERING PURPOSES: 230°C, 1/16" from the case for 10 seconds
POLARITY: Cathode indicated by polarity band
MOUNTING POSITION: Any
ESD Rating of Class 3 (>16 KV) per Human Body Model
DO-41 (DO-204AL) Package
Double Slug Type Construction
Metallurgical Bonded Construction
Oxide Passivated Die
Mechanical Characteristics:
CASE: Double slug type, hermetically sealed glass
FINISH: All external surfaces are corrosion resistant and leads are readily solderable
MAXIMUM LEAD TEMPERATURE FOR SOLDERING PURPOSES: 230°C, 1/16" from the case for 10 seconds
POLARITY: Cathode indicated by polarity band
MOUNTING POSITION: Any
Zener Diodes, Fairchild Semiconductor
Specifications
Attribute | Value |
|---|---|
| Nominal Zener Voltage | 6.2V |
| Diode Configuration | Single |
| Mounting Type | Through Hole |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation | 1 W |
| Package Type | DO-41 |
| Zener Type | General Purpose |
| Zener Voltage Tolerance | 5% |
| Pin Count | 2 |
| Test Current | 41mA |
| Maximum Zener Impedance | 2Ω |
| Maximum Reverse Leakage Current | 10µA |
| Dimensions | 2.72 (Dia.) x 5.2mm |
| Maximum Operating Temperature | +200 °C |
| Minimum Operating Temperature | -65 °C |
