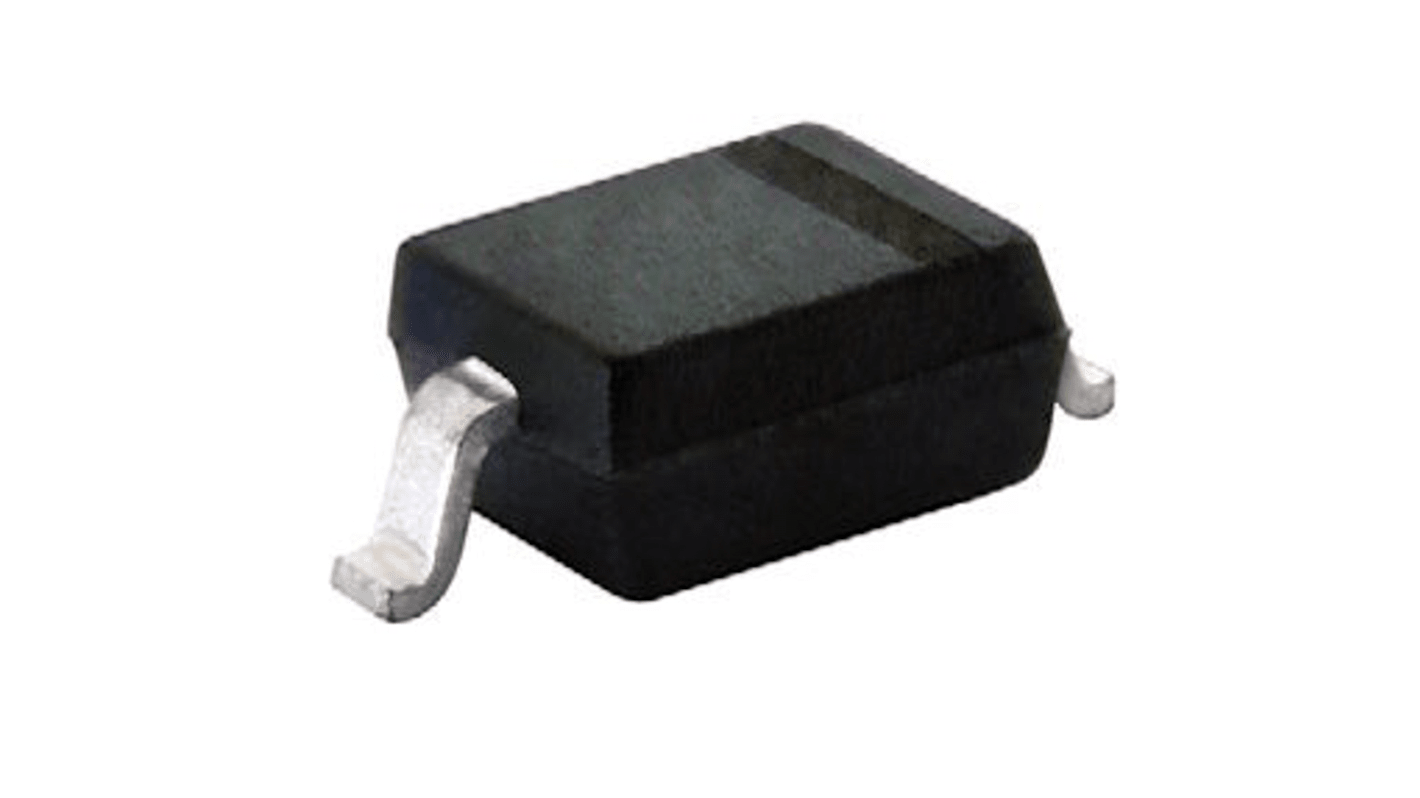

Vishay, 75V Zener Diode ± 5% 200 mW SMT 2-Pin SOD-323
- RS Stock No.:
- 233-0855
- Mfr. Part No.:
- BZX384C75-HG3-08
- Brand:
- Vishay
Price Each (On a Reel of 3000)
£0.052
(exc. VAT)
£0.062
(inc. VAT)
15141 In stock - FREE next working day delivery available
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 - 3000 | £0.052 | £156.00 |
| 6000 - 12000 | £0.051 | £153.00 |
| 15000 + | £0.049 | £147.00 |
*price indicative
- RS Stock No.:
- 233-0855
- Mfr. Part No.:
- BZX384C75-HG3-08
- Brand:
- Vishay
Technical Reference
Legislation and Compliance
Product Details
The Vishay small signal silicon planar zener diode has ESD capability according to AEC-Q101, for human body model it is > 8 kV and for machine model it is > 800 V. It has 75V nominal zener voltage. Zener voltage is graded according to the international E24 standard. It is RoHS compliant and lead free.
± 5% zener voltage tolerance
Specifications
Attribute | Value |
|---|---|
| Diode Configuration | Single |
| Nominal Zener Voltage | 75V |
| Mounting Type | Surface Mount |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation | 200 mW |
| Package Type | SOD-323 |
| Zener Type | Small Signal |
| Zener Voltage Tolerance | ± 5% |
| Pin Count | 2 |
