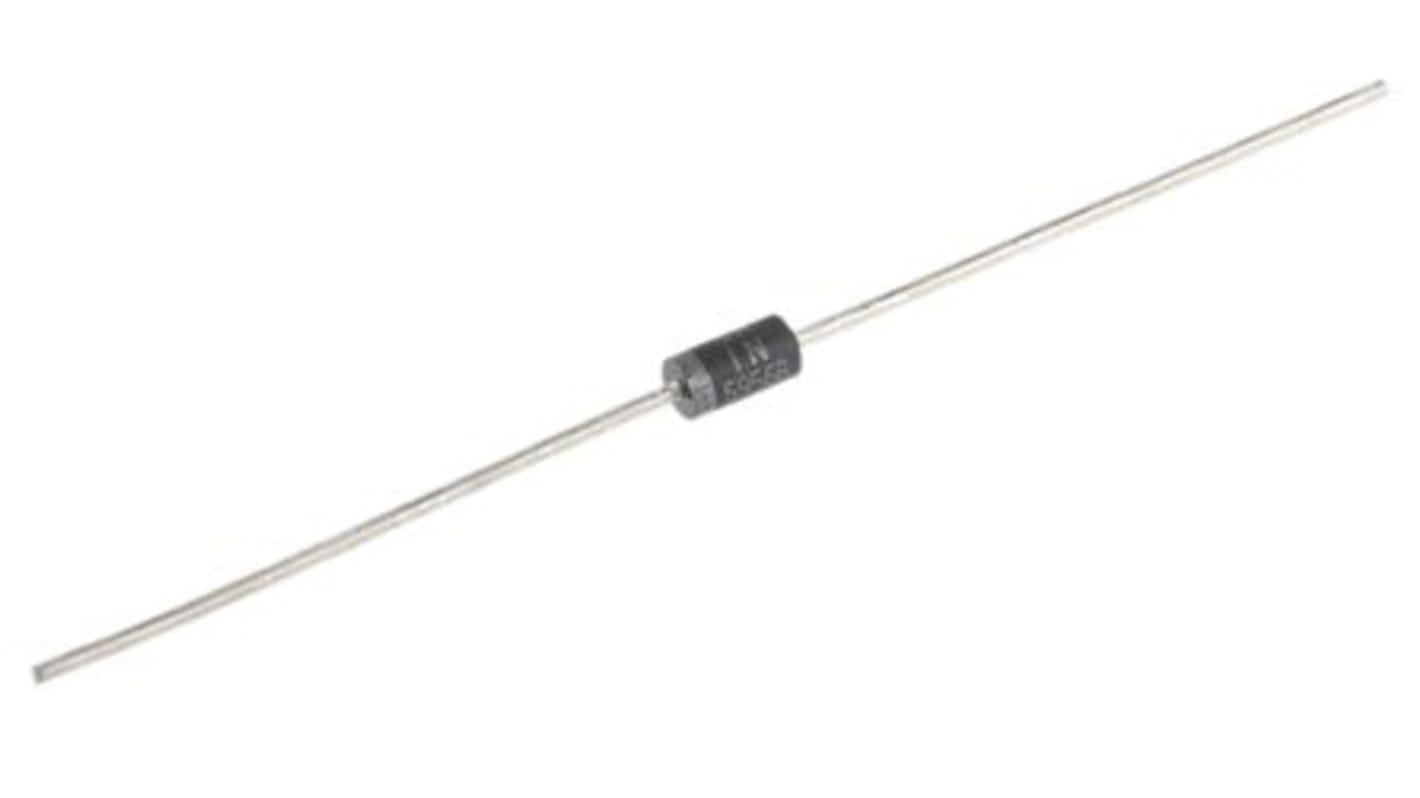

onsemi 1, 24 V Zener Diode, Single 3 W 5 % Through Hole 2-Pin Case 017AA
- RS Stock No.:
- 186-9441
- Mfr. Part No.:
- 1N5934BG
- Brand:
- onsemi
Bulk discount available
Subtotal (1 pack of 25 units)*
£6.075
(exc. VAT)
£7.30
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 525 unit(s) shipping from 04 May 2026
- Plus 825 unit(s) shipping from 11 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 75 | £0.243 | £6.08 |
| 100 - 225 | £0.21 | £5.25 |
| 250 - 475 | £0.182 | £4.55 |
| 500 - 975 | £0.16 | £4.00 |
| 1000 + | £0.145 | £3.63 |
*price indicative
- RS Stock No.:
- 186-9441
- Mfr. Part No.:
- 1N5934BG
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Product Type | Zener Diode | |
| Nominal Zener Voltage Vz | 24V | |
| Diode Configuration | Single | |
| Mount Type | Through Hole | |
| Number of Elements per Chip | 1 | |
| Maximum Power Dissipation Pd | 3W | |
| Package Type | Case 017AA | |
| Zener Type | Voltage Regulator | |
| Pin Count | 2 | |
| Test Current It | 15.6mA | |
| Maximum Zener Impedance | 700Ω | |
| Zener Voltage Tolerance ± | 5% | |
| Maximum Reverse Leakage Current | 1μA | |
| Minimum Operating Temperature | -65°C | |
| Maximum Operating Temperature | 200°C | |
| Series | 1N5934B | |
| Length | 5.2mm | |
| Height | 2.7mm | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Product Type Zener Diode | ||
Nominal Zener Voltage Vz 24V | ||
Diode Configuration Single | ||
Mount Type Through Hole | ||
Number of Elements per Chip 1 | ||
Maximum Power Dissipation Pd 3W | ||
Package Type Case 017AA | ||
Zener Type Voltage Regulator | ||
Pin Count 2 | ||
Test Current It 15.6mA | ||
Maximum Zener Impedance 700Ω | ||
Zener Voltage Tolerance ± 5% | ||
Maximum Reverse Leakage Current 1μA | ||
Minimum Operating Temperature -65°C | ||
Maximum Operating Temperature 200°C | ||
Series 1N5934B | ||
Length 5.2mm | ||
Height 2.7mm | ||
Standards/Approvals No | ||
Automotive Standard No | ||
This is a complete series of 3.0 Watt Zener Diode Voltage Regulators with tight limits and better operating characteristics that reflect the superior capabilities of silicon-oxide passivated junctions. All this is in an axial-lead, transfer-molded plastic package that offers protection in all common environmental conditions.
Zener Voltage Range - 3.3 V to 200 V
ESD Rating of Class 3 (>16 KV) per Human Body Model
Surge Rating of 98 Watts @ 1 ms
Maximum Limits Guaranteed On Up To Six Electrical Parameters
Package No Larger Than the Conventional 1 Watt Package
Mechanical Characteristics:
CASE: Void free, transfer-molded, thermosetting plastic
FINISH: All external surfaces are corrosion resistant and leads are readily solderable
MAXIMUM LEAD TEMPERATURE FOR SOLDERING PURPOSES:230°C, 1/16, from the case for 10 seconds
POLARITY: Cathode indicated by polarity band
MOUNTING POSITION: Any
Pb-Free Packages are Available
End Products
Power Supply
