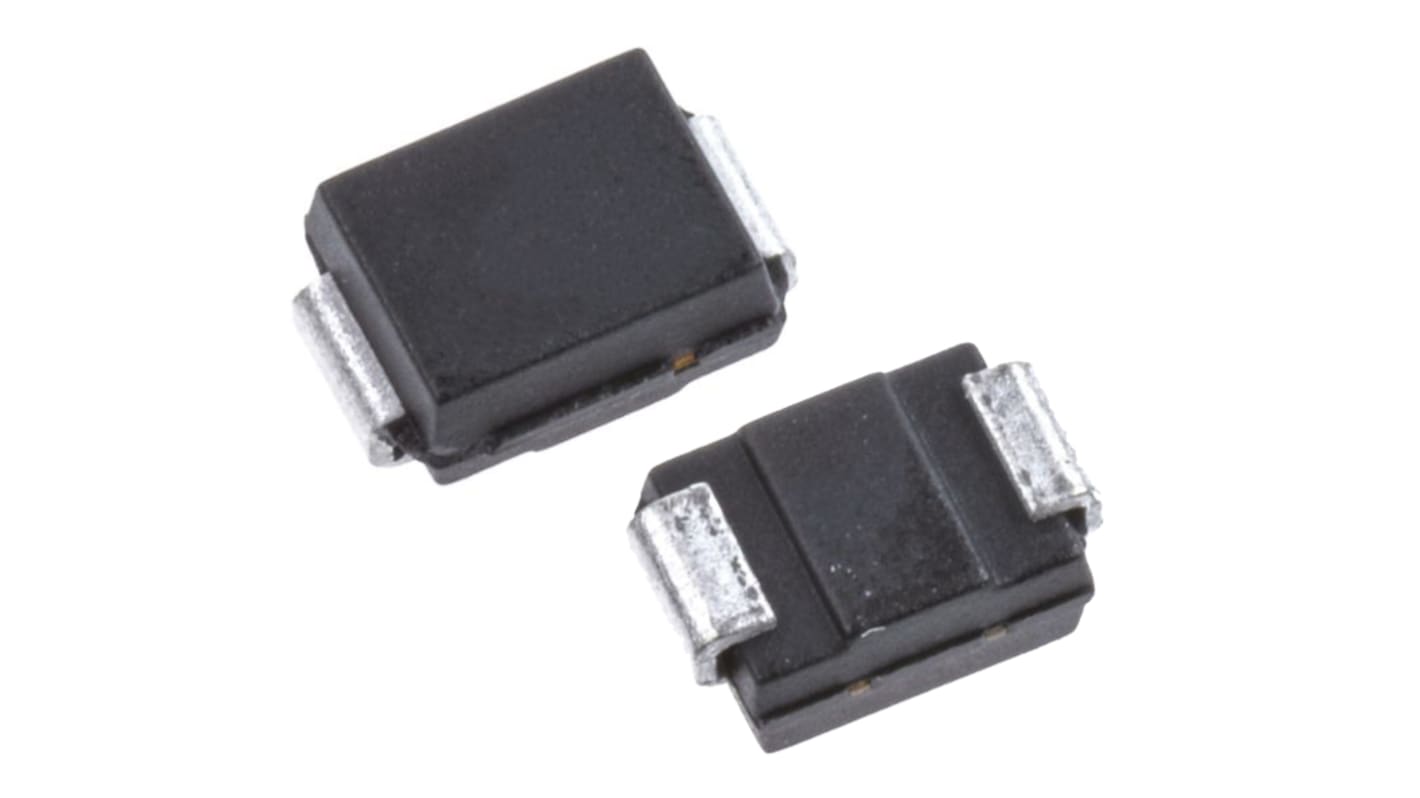

onsemi, 62V Zener Diode ±5% 3 W SMT 2-Pin CASE 403A
- RS Stock No.:
- 186-8790
- Mfr. Part No.:
- 1SMB5944BT3G
- Brand:
- onsemi
Bulk discount available
Subtotal (1 reel of 2500 units)*
£175.00
(exc. VAT)
£200.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,500 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
---|---|---|
2500 - 7500 | £0.07 | £175.00 |
10000 - 22500 | £0.064 | £160.00 |
25000 - 47500 | £0.062 | £155.00 |
50000 - 97500 | £0.061 | £152.50 |
100000 + | £0.059 | £147.50 |
*price indicative
- RS Stock No.:
- 186-8790
- Mfr. Part No.:
- 1SMB5944BT3G
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | onsemi | |
Diode Configuration | Single | |
Nominal Zener Voltage | 62V | |
Number of Elements per Chip | 1 | |
Mounting Type | Surface Mount | |
Maximum Power Dissipation | 3 W | |
Package Type | CASE 403A | |
Zener Type | Voltage Regulator | |
Zener Voltage Tolerance | ±5% | |
Pin Count | 2 | |
Test Current | 6mA | |
Maximum Zener Impedance | 1500Ω | |
Maximum Reverse Leakage Current | 1µA | |
Dimensions | 4.6 x 3.95 x 2.27mm | |
Minimum Operating Temperature | -65 °C | |
Automotive Standard | AEC-Q101 | |
Maximum Operating Temperature | +150 °C | |
Forward Current | 200mA | |
Forward Voltage | 1.5V | |
Select all | ||
---|---|---|
Brand onsemi | ||
Diode Configuration Single | ||
Nominal Zener Voltage 62V | ||
Number of Elements per Chip 1 | ||
Mounting Type Surface Mount | ||
Maximum Power Dissipation 3 W | ||
Package Type CASE 403A | ||
Zener Type Voltage Regulator | ||
Zener Voltage Tolerance ±5% | ||
Pin Count 2 | ||
Test Current 6mA | ||
Maximum Zener Impedance 1500Ω | ||
Maximum Reverse Leakage Current 1µA | ||
Dimensions 4.6 x 3.95 x 2.27mm | ||
Minimum Operating Temperature -65 °C | ||
Automotive Standard AEC-Q101 | ||
Maximum Operating Temperature +150 °C | ||
Forward Current 200mA | ||
Forward Voltage 1.5V | ||
This 3.0 W Zener diode is designed for general purpose voltage regulation applications.
Zener Voltage Range - 3.3 V to 200 V
ESD Rating of Class 3 (>16 KV) per Human Body Model
Flat Handling Surface for Accurate Placement
Package Design for Top Side or Bottom Circuit Board Mounting
Mechanical Characteristics:
CASE: Void-free, transfer-molded plastic
FINISH: All external surfaces are corrosion resistant with readily solderable leads
MAXIMUM CASE TEMPERATURE FOR SOLDERING PURPOSES: 260°C for 10 seconds
LEADS: Modified L-Bend providing more contact area to bond pads
POLARITY: Cathode indicated by molded polarity notch.
PPAP capable
SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
ESD Rating of Class 3 (>16 KV) per Human Body Model
Flat Handling Surface for Accurate Placement
Package Design for Top Side or Bottom Circuit Board Mounting
Mechanical Characteristics:
CASE: Void-free, transfer-molded plastic
FINISH: All external surfaces are corrosion resistant with readily solderable leads
MAXIMUM CASE TEMPERATURE FOR SOLDERING PURPOSES: 260°C for 10 seconds
LEADS: Modified L-Bend providing more contact area to bond pads
POLARITY: Cathode indicated by molded polarity notch.
PPAP capable
SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
