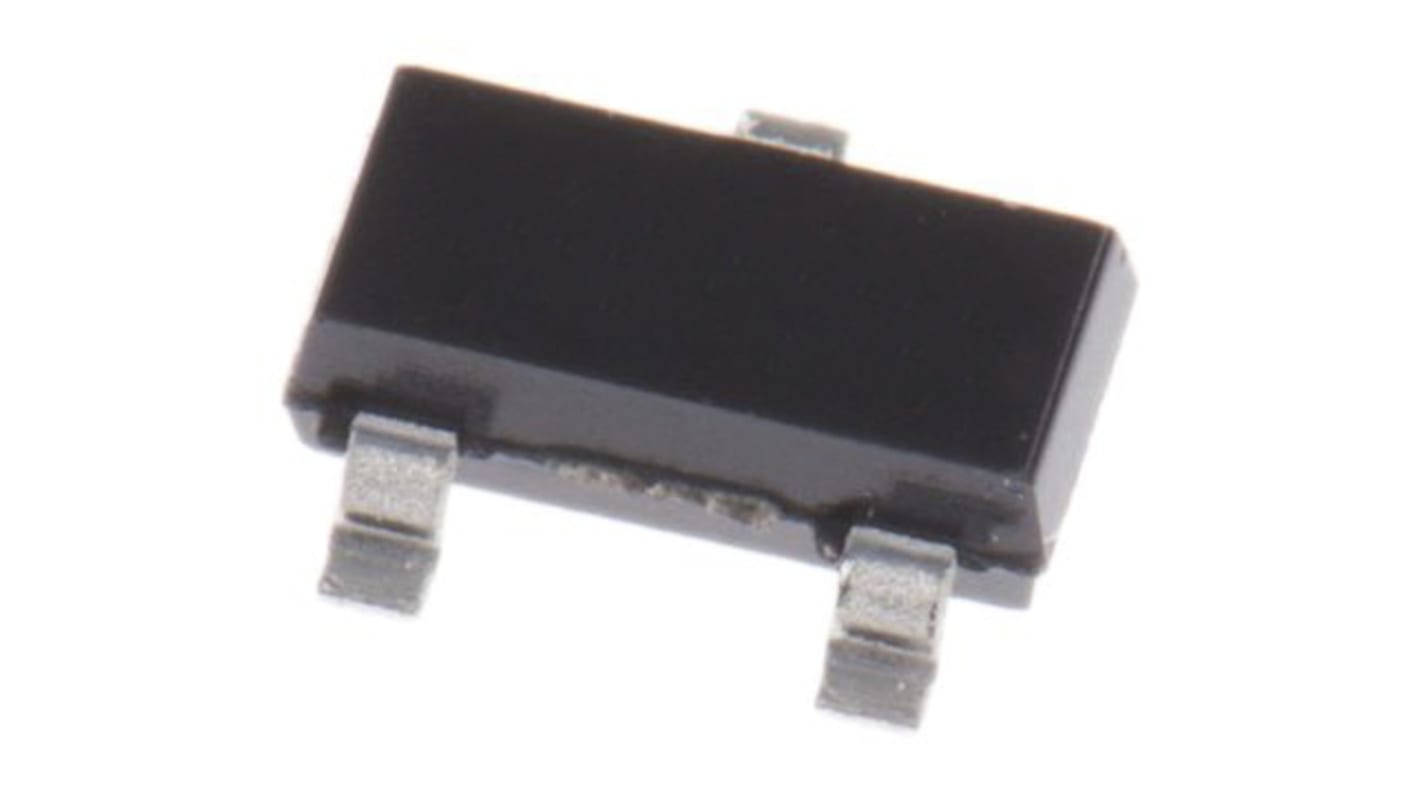

onsemi, 18V Zener Diode ±5% 300 mW SMT 3-Pin SOT-23
- RS Stock No.:
- 184-4947
- Mfr. Part No.:
- BZX84C18LT1G
- Brand:
- onsemi
16500 In stock - FREE next working day delivery available
Price Each (In a Pack of 250)
£0.034
(exc. VAT)
£0.041
(inc. VAT)
Units | Per unit | Per Pack* |
|---|---|---|
| 250 - 750 | £0.034 | £8.50 |
| 1000 - 2750 | £0.024 | £6.00 |
| 3000 - 8750 | £0.018 | £4.50 |
| 9000 - 23750 | £0.016 | £4.00 |
| 24000 + | £0.015 | £3.75 |
*price indicative
- RS Stock No.:
- 184-4947
- Mfr. Part No.:
- BZX84C18LT1G
- Brand:
- onsemi
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
This series of Zener diodes is offered in the convenient, surface mount plastic SOT-23 package. These devices are designed to provide voltage regulation with minimum space requirement. They are well suited for applications such as cellular phones, hand held portables, and high density PC boards.
254 mW Rating on FR-4 or FR-5 Board
Zener Breakdown Voltage Range - 2.4 V to 75 V
Package Designed for Optimal Automated Board Assembly
Small Package Size for High Density Applications
ESD Rating of Class 3 (>16 KV) per Human Body Model
Mechanical Charact
Zener Breakdown Voltage Range - 2.4 V to 75 V
Package Designed for Optimal Automated Board Assembly
Small Package Size for High Density Applications
ESD Rating of Class 3 (>16 KV) per Human Body Model
Mechanical Charact
Specifications
Attribute | Value |
|---|---|
| Diode Configuration | Single |
| Nominal Zener Voltage | 18V |
| Number of Elements per Chip | 1 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 300 mW |
| Package Type | SOT-23 |
| Zener Type | Voltage Regulator |
| Zener Voltage Tolerance | ±5% |
| Pin Count | 3 |
| Test Current | 5mA |
| Maximum Zener Impedance | 45Ω |
| Maximum Reverse Leakage Current | 50nA |
| Dimensions | 3.04 x 1.4 x 1.01mm |
| Forward Voltage | 0.9V |
| Minimum Operating Temperature | -65 °C |
| Typical Voltage Temperature Coefficient | 16mV/K |
| Forward Current | 10mA |
| Automotive Standard | AEC-Q101 |
| Maximum Operating Temperature | +150 °C |
