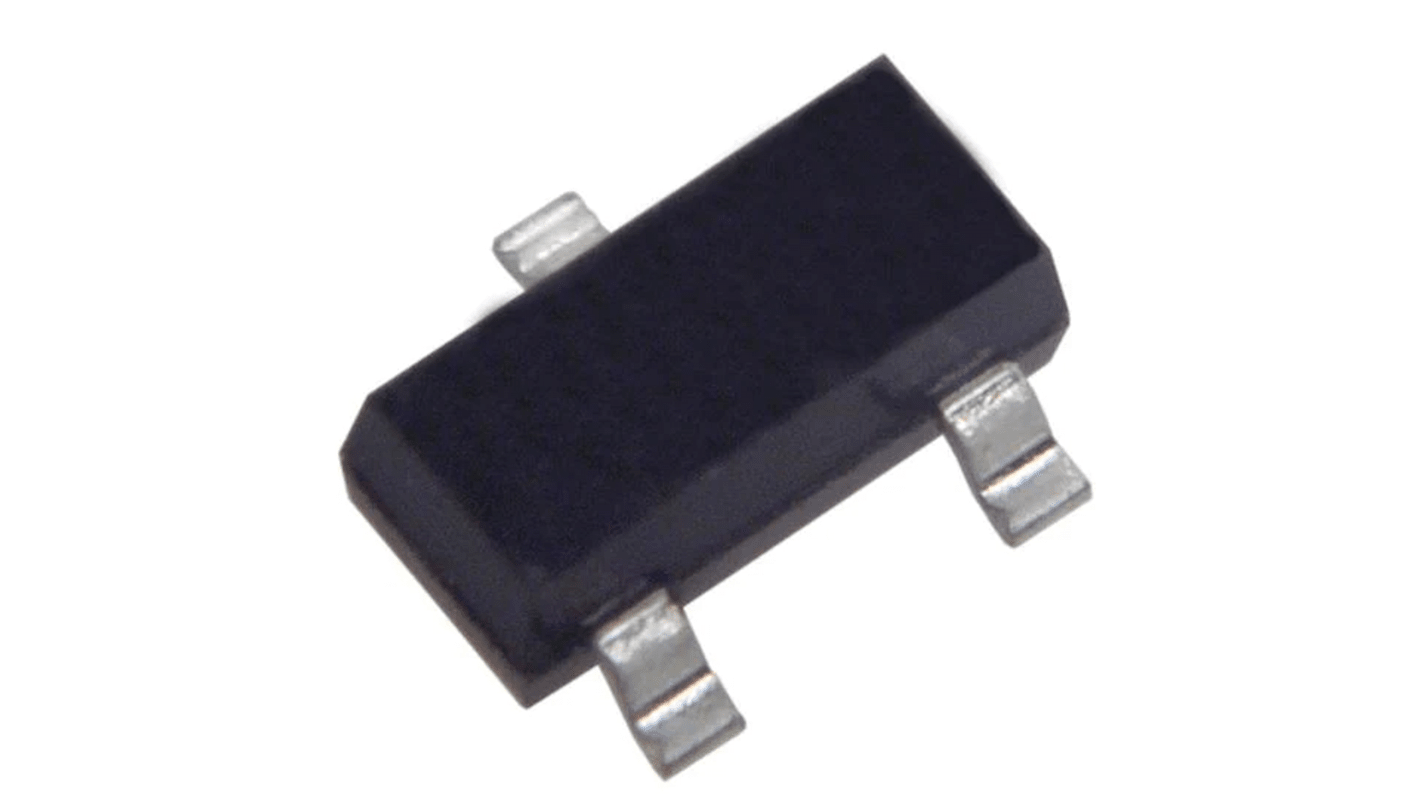

Vishay, 5.6 V Zener Diode, Single 0.42 W 2 % Surface 3-Pin SOT-23

Get a bulk buy discount

Add 6000 more to save 9%

View bulk pricing options

Subtotal (1 reel of 3000 units)*

£126.00

(exc. VAT)

£150.00

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 15,000 unit(s), ready to ship

Units
Per unit
Per Reel*
Saving
3000 - 3000£0.042£126.00-
6000 - 12000£0.038£114.009%
15000 +£0.034£102.0019%

*price indicative

RS Stock No.:
180-8244
Mfr. Part No.:
BZX84C5V6-E3-08
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Product Type

Zener Diode

Nominal Zener Voltage Vz

5.6V

Diode Configuration

Single

Mount Type

Surface

Maximum Power Dissipation Pd

0.42W

Package Type

SOT-23

Zener Type

Small Signal

Pin Count

3

Test Current It

5mA

Minimum Operating Temperature

-55°C

Zener Voltage Tolerance ±

2%

Maximum Reverse Leakage Current

1μA

Maximum Operating Temperature

150°C

Series

BZX84

Length

3.1mm

Height

1.43mm

Standards/Approvals

RoHS

Automotive Standard

AEC-Q101

Typical Voltage Temperature Coefficient

0.0006ppm/°C

COO (Country of Origin):
CN

Vishay Zener Diode


The Vishay SOT-23 small signal Zener diode has a voltage rating of 5.6VDC and power rating of 300mW at 5% voltage tolerance. The Zener current of the diode is 1μA and reverse current rating is 1μA.

Features and Benefits


• ESD capability according to AEC-Q101: human body model > 8kV and machine model > 800V

• Lead (Pb) free component

• Operating junction temperature ranges between -55°C and 150°C

• Replace C with B for ±2% tolerance

• Silicon planar Zener diode

• The Zener voltages are graded according to the international standard

Applications


• Voltage regulators

• Voltage stabilization

Certifications


• AEC-Q101 qualified

• Automotive Grade

• e3

• J-STD-020

• UL94 listed
