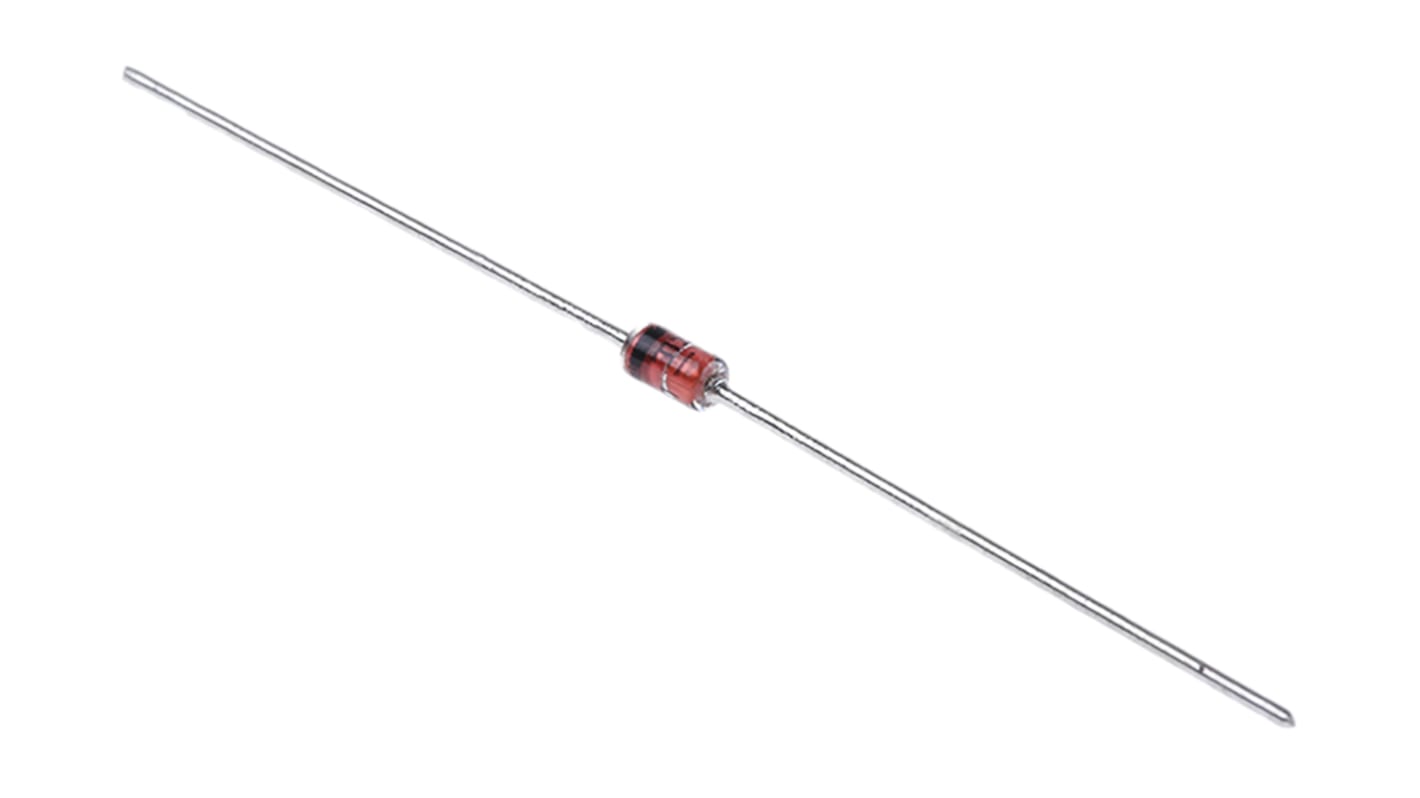

onsemi, 15V Zener Diode 5% 1 W Through Hole 2-Pin DO-41
- RS Stock No.:
- 178-7620
- Mfr. Part No.:
- 1N4744ATR
- Brand:
- onsemi
Bulk discount available
Subtotal (1 reel of 3000 units)*
£105.00
(exc. VAT)
£126.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 20 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 - 3000 | £0.035 | £105.00 |
| 6000 + | £0.033 | £99.00 |
*price indicative
- RS Stock No.:
- 178-7620
- Mfr. Part No.:
- 1N4744ATR
- Brand:
- onsemi
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Diode Configuration | Single | |
| Nominal Zener Voltage | 15V | |
| Mounting Type | Through Hole | |
| Number of Elements per Chip | 1 | |
| Maximum Power Dissipation | 1 W | |
| Package Type | DO-41 | |
| Zener Type | General Purpose | |
| Zener Voltage Tolerance | 5% | |
| Pin Count | 2 | |
| Test Current | 17mA | |
| Maximum Zener Impedance | 14Ω | |
| Maximum Reverse Leakage Current | 5µA | |
| Dimensions | 2.72 (Dia.) x 5.2mm | |
| Maximum Operating Temperature | +200 °C | |
| Minimum Operating Temperature | -65 °C | |
Select all | ||
|---|---|---|
Brand onsemi | ||
Diode Configuration Single | ||
Nominal Zener Voltage 15V | ||
Mounting Type Through Hole | ||
Number of Elements per Chip 1 | ||
Maximum Power Dissipation 1 W | ||
Package Type DO-41 | ||
Zener Type General Purpose | ||
Zener Voltage Tolerance 5% | ||
Pin Count 2 | ||
Test Current 17mA | ||
Maximum Zener Impedance 14Ω | ||
Maximum Reverse Leakage Current 5µA | ||
Dimensions 2.72 (Dia.) x 5.2mm | ||
Maximum Operating Temperature +200 °C | ||
Minimum Operating Temperature -65 °C | ||
