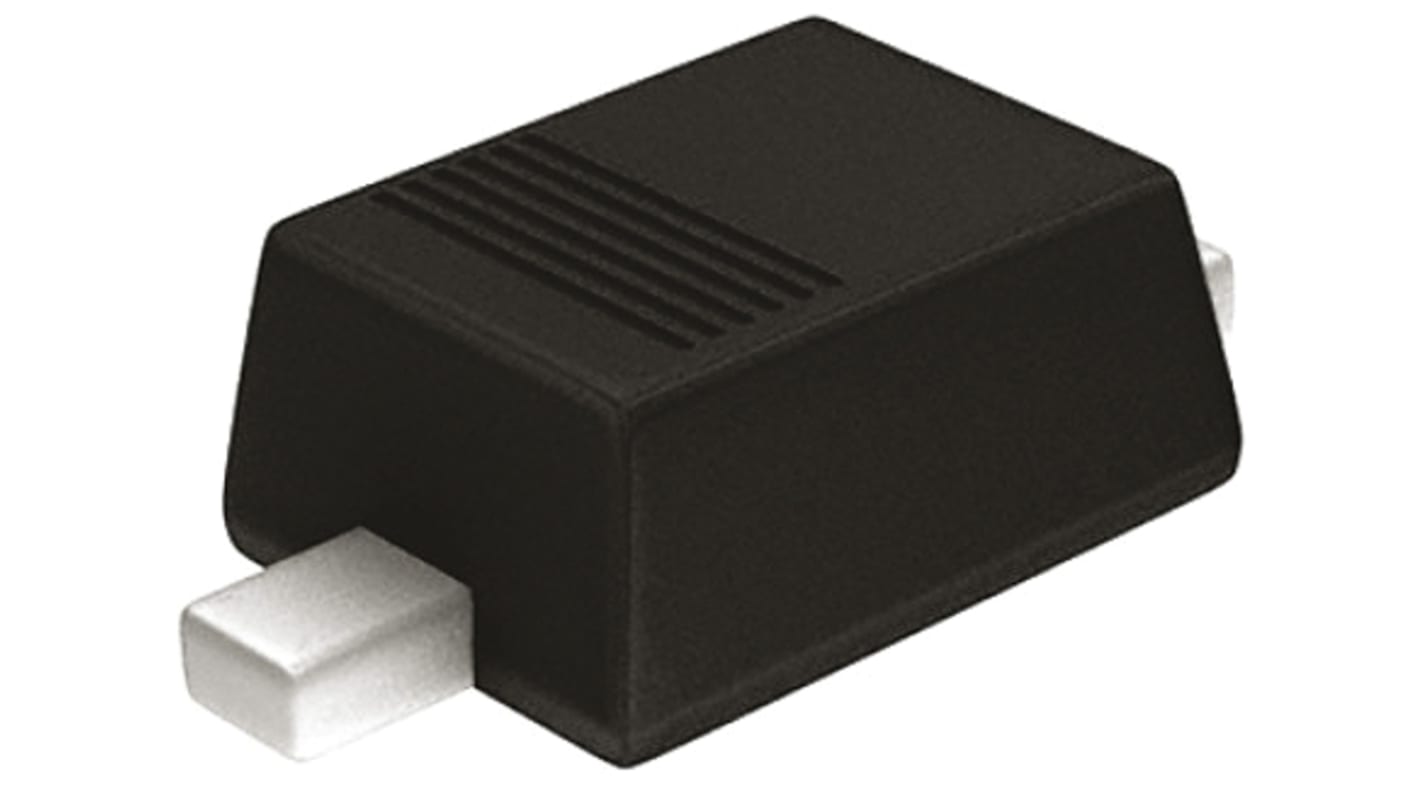

Nexperia, 3V Zener Diode 5% 550 mW SMT 2-Pin SOD-323F

View all Zener Diodes

Subtotal (1 reel of 3000 units)*

£78.00

(exc. VAT)

£93.00

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 3,000 unit(s) shipping from 06 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
3000 +£0.026£78.00

*price indicative

RS Stock No.:
165-9971
Mfr. Part No.:
BZX84J-C3V3,115
Brand:
Nexperia
Find similar products by selecting one or more attributes.
Select all

Brand

Nexperia

Diode Configuration

Single

Nominal Zener Voltage

3V

Mounting Type

Surface Mount

Number of Elements per Chip

1

Maximum Power Dissipation

550 mW

Package Type

SOD-323F

Zener Type

General Purpose

Zener Voltage Tolerance

5%

Pin Count

2

Test Current

5mA

Maximum Reverse Leakage Current

5µA

Dimensions

1.8 x 1.35 x 0.8mm

Minimum Operating Temperature

-55 °C

Maximum Operating Temperature

+150 °C

Typical Voltage Temperature Coefficient

-3.5 → 0mV/K

COO (Country of Origin):
CN

Zener Diodes 550mW, BZX84J Series, Nexperia


The BZX84J series of Zener diodes, from NXP, are general purpose devices. These single Zener diodes are in a SOD323F (SC-90) package. This plastic package is very small and flat lead surface mount (SMD). The BZX84J series are ideal for general regulation functions.

- Non-repetitive peak reverse power dissipation: 40mW
- Total power dissipation: 550mW
- Small plastic package for suface-mount designs
- Wide working voltage range: nominal 2.4V to 75V (E24 range)
- Two tolerance series: 2% and 5%
- Low differential resistance
