Nexperia, 15V Zener Diode ±2% 550 mW SMT 2-Pin SC-90, SOD-323F
- RS Stock No.:
- 152-5523
- Mfr. Part No.:
- BZX84J-B15,115
- Brand:
- Nexperia
54500 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 100)
£0.127
(exc. VAT)
£0.152
(inc. VAT)
| Units | Per unit | Per Pack* |
| 100 - 100 | £0.127 | £12.70 |
| 200 - 400 | £0.121 | £12.10 |
| 500 - 900 | £0.115 | £11.50 |
| 1000 - 2400 | £0.096 | £9.60 |
| 2500 + | £0.091 | £9.10 |
| *price indicative | ||
- RS Stock No.:
- 152-5523
- Mfr. Part No.:
- BZX84J-B15,115
- Brand:
- Nexperia
Technical Reference
Legislation and Compliance
Product Details

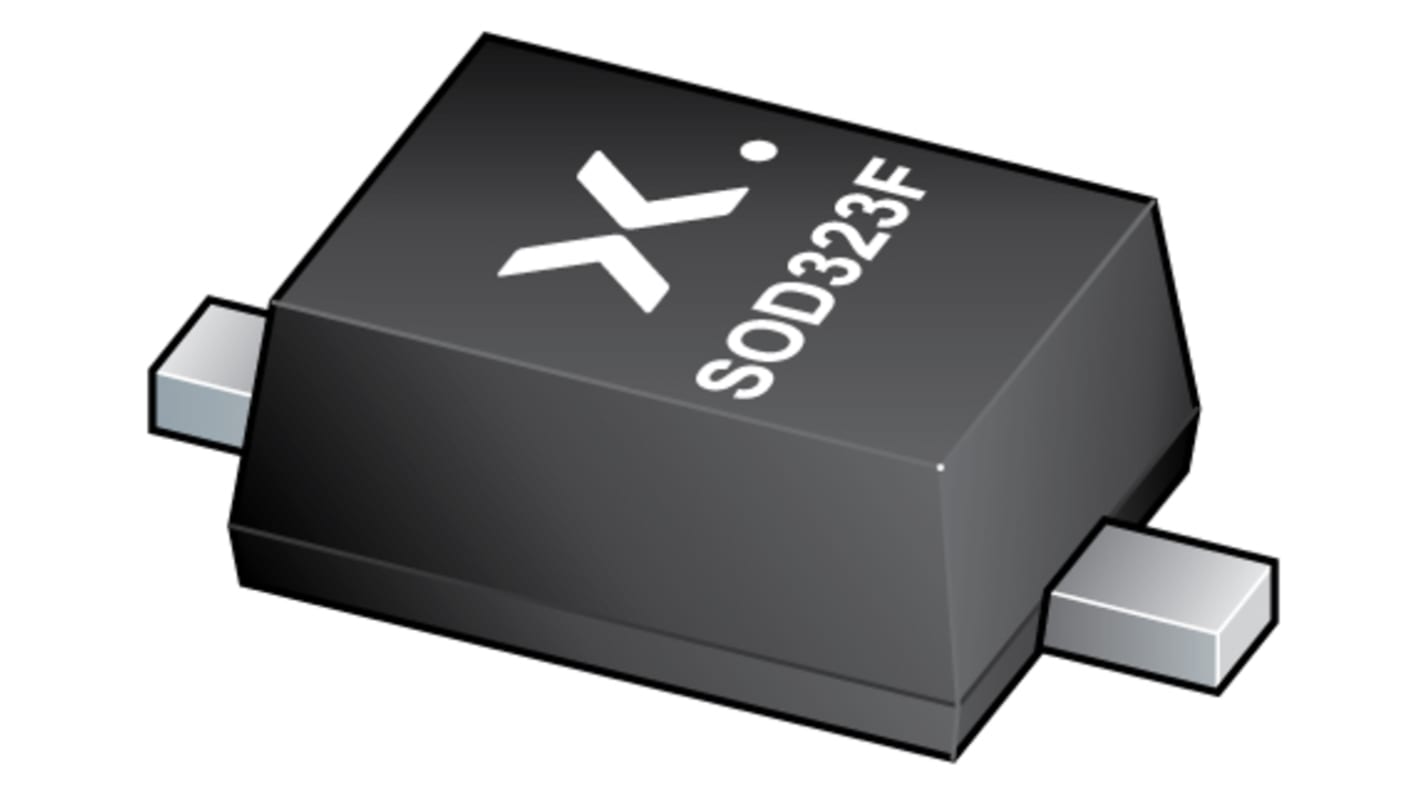

Single Zener diodes, General-purpose Zener diodes in a SOD323F (SC-90) very small and flat lead Surface-Mounted Device (SMD) plastic package.
Non-repetitive peak reverse power dissipation: ≤ 40 W
Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
Total power dissipation: ≤ 550 mW
Two tolerance series: ±2 % and ±5 %
AEC-Q101 qualified
Low differential resistance
Small plastic package suitable for surface-mounted design
General regulation functions
Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
Total power dissipation: ≤ 550 mW
Two tolerance series: ±2 % and ±5 %
AEC-Q101 qualified
Low differential resistance
Small plastic package suitable for surface-mounted design
General regulation functions
Specifications
Attribute | Value |
|---|---|
| Diode Configuration | Single |
| Nominal Zener Voltage | 15V |
| Number of Elements per Chip | 1 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 550 mW |
| Package Type | SC-90, SOD-323F |
| Zener Type | General Purpose |
| Zener Voltage Tolerance | ±2% |
| Pin Count | 2 |
| Test Current | 5mA |
| Dimensions | 1.8 x 1.35 x 0.8mm |
| Typical Voltage Temperature Coefficient | 13mV/K |
| Minimum Operating Temperature | -55 °C |
| Forward Current | 250mA |
| Maximum Operating Temperature | +150 °C |
| Automotive Standard | AEC-Q101 |
| Forward Voltage | 1.1V |
