Nexperia 1, 13 V Zener Diode, Single 550 mW 2 % Surface 2-Pin SOD-323
- RS Stock No.:
- 153-2900
- Mfr. Part No.:
- BZX84J-B13,115
- Brand:
- Nexperia
Bulk discount available
Subtotal (1 pack of 100 units)*
£10.30
(exc. VAT)
£12.40
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 3,000 unit(s) shipping from 06 May 2026
- Plus 3,000 unit(s) shipping from 21 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 100 - 200 | £0.103 | £10.30 |
| 300 - 500 | £0.077 | £7.70 |
| 600 - 1100 | £0.062 | £6.20 |
| 1200 - 2400 | £0.056 | £5.60 |
| 2500 + | £0.052 | £5.20 |
*price indicative
- RS Stock No.:
- 153-2900
- Mfr. Part No.:
- BZX84J-B13,115
- Brand:
- Nexperia
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nexperia | |
| Nominal Zener Voltage Vz | 13V | |
| Diode Configuration | Single | |
| Product Type | Zener Diode | |
| Mount Type | Surface | |
| Number of Elements per Chip | 1 | |
| Maximum Power Dissipation Pd | 550mW | |
| Package Type | SOD-323 | |
| Zener Type | General Purpose | |
| Pin Count | 2 | |
| Test Current It | 5mA | |
| Maximum Zener Impedance | 10Ω | |
| Zener Voltage Tolerance ± | 2% | |
| Maximum Reverse Leakage Current | 0.1μA | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 150°C | |
| Length | 2.7mm | |
| Series | BZX84J | |
| Standards/Approvals | No | |
| Height | 0.8mm | |
| Automotive Standard | AEC-Q101 | |
| Typical Voltage Temperature Coefficient | 11mV/K | |
| Select all | ||
|---|---|---|
Brand Nexperia | ||
Nominal Zener Voltage Vz 13V | ||
Diode Configuration Single | ||
Product Type Zener Diode | ||
Mount Type Surface | ||
Number of Elements per Chip 1 | ||
Maximum Power Dissipation Pd 550mW | ||
Package Type SOD-323 | ||
Zener Type General Purpose | ||
Pin Count 2 | ||
Test Current It 5mA | ||
Maximum Zener Impedance 10Ω | ||
Zener Voltage Tolerance ± 2% | ||
Maximum Reverse Leakage Current 0.1μA | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 150°C | ||
Length 2.7mm | ||
Series BZX84J | ||
Standards/Approvals No | ||
Height 0.8mm | ||
Automotive Standard AEC-Q101 | ||
Typical Voltage Temperature Coefficient 11mV/K | ||

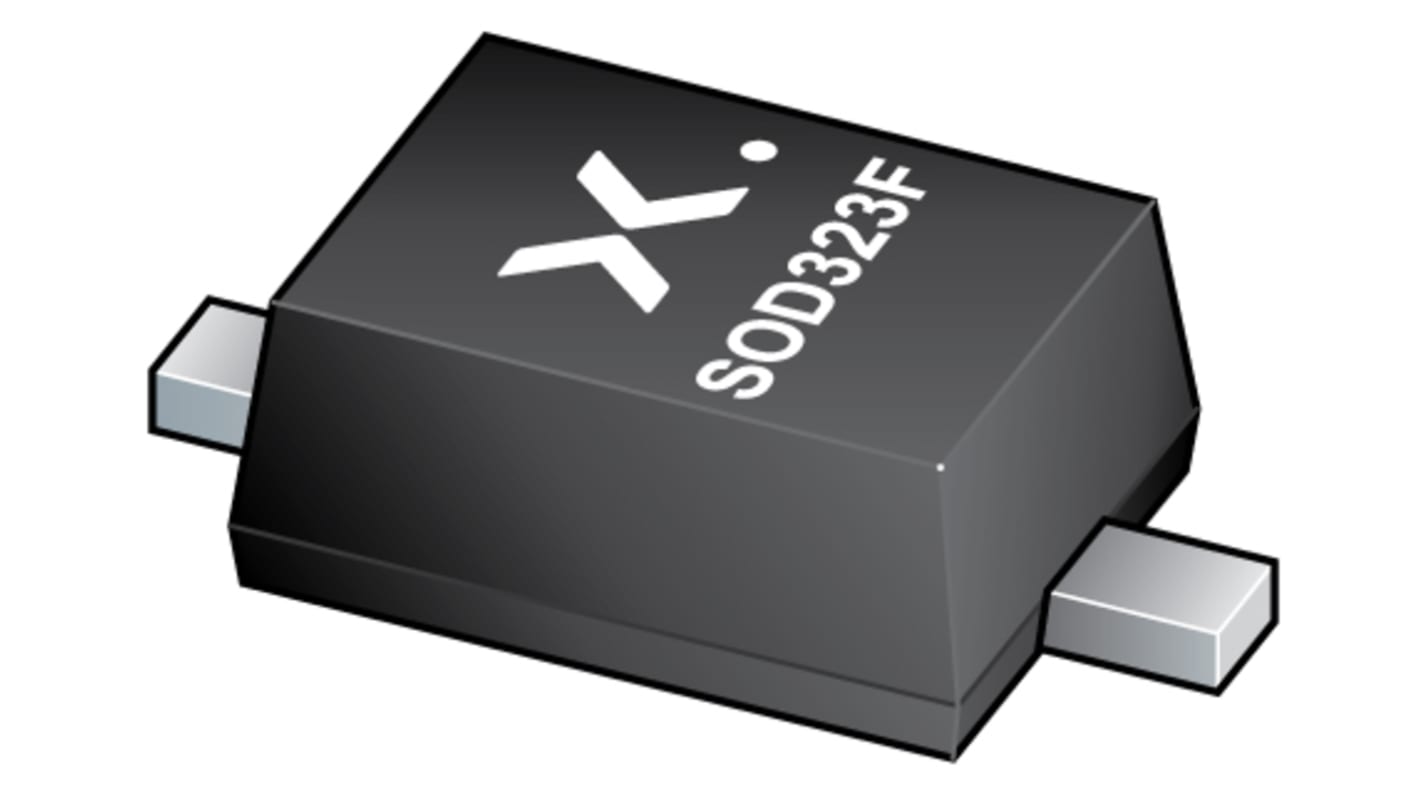

Single Zener diodes, General-purpose Zener diodes in a SOD323F (SC-90) very small and flat lead Surface-Mounted Device (SMD) plastic package.
Non-repetitive Peak reverse power dissipation: ≤ 40 W
Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
Total power dissipation: ≤ 550 mW
Two tolerance series: ±2 % and ±5 %
AEC-Q101 qualified
Low differential resistance
Small plastic package suitable for surface-mounted design
General regulation functions
