onsemi 1, 3.3 V Zener Diode, Single 1.5 W 5 % Surface 2-Pin DO-214AC
- RS Stock No.:
- 124-9929
- Mfr. Part No.:
- 1SMA5913BT3G
- Brand:
- onsemi

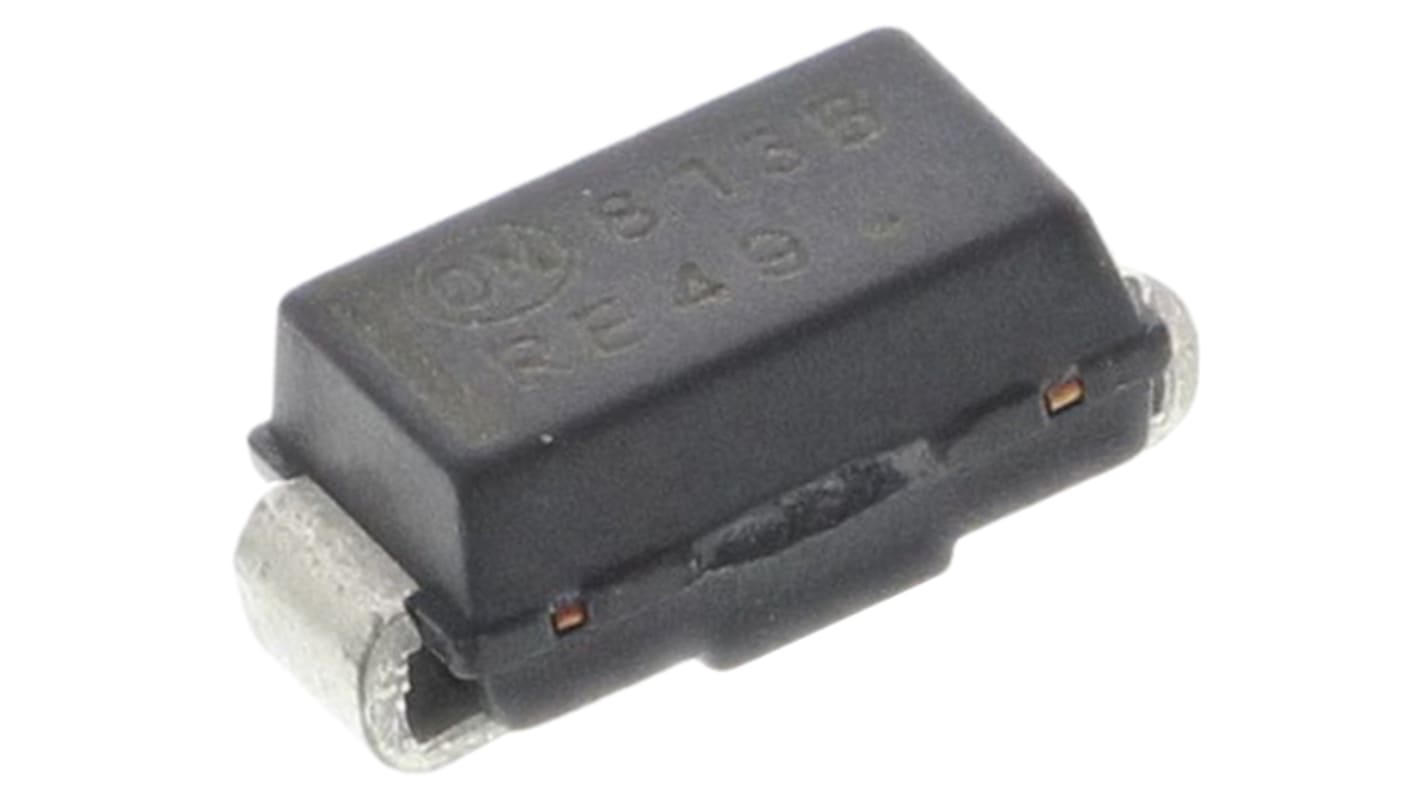

Image representative of range
Subtotal (1 reel of 5000 units)*
£360.00
(exc. VAT)
£430.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 20,000 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 5000 + | £0.072 | £360.00 |
*price indicative
- RS Stock No.:
- 124-9929
- Mfr. Part No.:
- 1SMA5913BT3G
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Product Type | Zener Diode | |
| Nominal Zener Voltage Vz | 3.3V | |
| Diode Configuration | Single | |
| Mount Type | Surface | |
| Number of Elements per Chip | 1 | |
| Maximum Power Dissipation Pd | 1.5W | |
| Package Type | DO-214AC | |
| Zener Type | Voltage Regulator | |
| Pin Count | 2 | |
| Test Current It | 113.6mA | |
| Maximum Zener Impedance | 10Ω | |
| Maximum Reverse Leakage Current | 50μA | |
| Zener Voltage Tolerance ± | 5% | |
| Minimum Operating Temperature | -65°C | |
| Maximum Operating Temperature | 150°C | |
| Height | 2.2mm | |
| Series | 1SMA59xxBT3G | |
| Length | 5.59mm | |
| Standards/Approvals | RoHS | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Product Type Zener Diode | ||
Nominal Zener Voltage Vz 3.3V | ||
Diode Configuration Single | ||
Mount Type Surface | ||
Number of Elements per Chip 1 | ||
Maximum Power Dissipation Pd 1.5W | ||
Package Type DO-214AC | ||
Zener Type Voltage Regulator | ||
Pin Count 2 | ||
Test Current It 113.6mA | ||
Maximum Zener Impedance 10Ω | ||
Maximum Reverse Leakage Current 50μA | ||
Zener Voltage Tolerance ± 5% | ||
Minimum Operating Temperature -65°C | ||
Maximum Operating Temperature 150°C | ||
Height 2.2mm | ||
Series 1SMA59xxBT3G | ||
Length 5.59mm | ||
Standards/Approvals RoHS | ||
Automotive Standard AEC-Q101 | ||
Zener Diodes 1.5W, 1SMA59xxBT, SZ1SMA59xxBT Series, ON Semiconductor
Zener Diodes, ON Semiconductor
