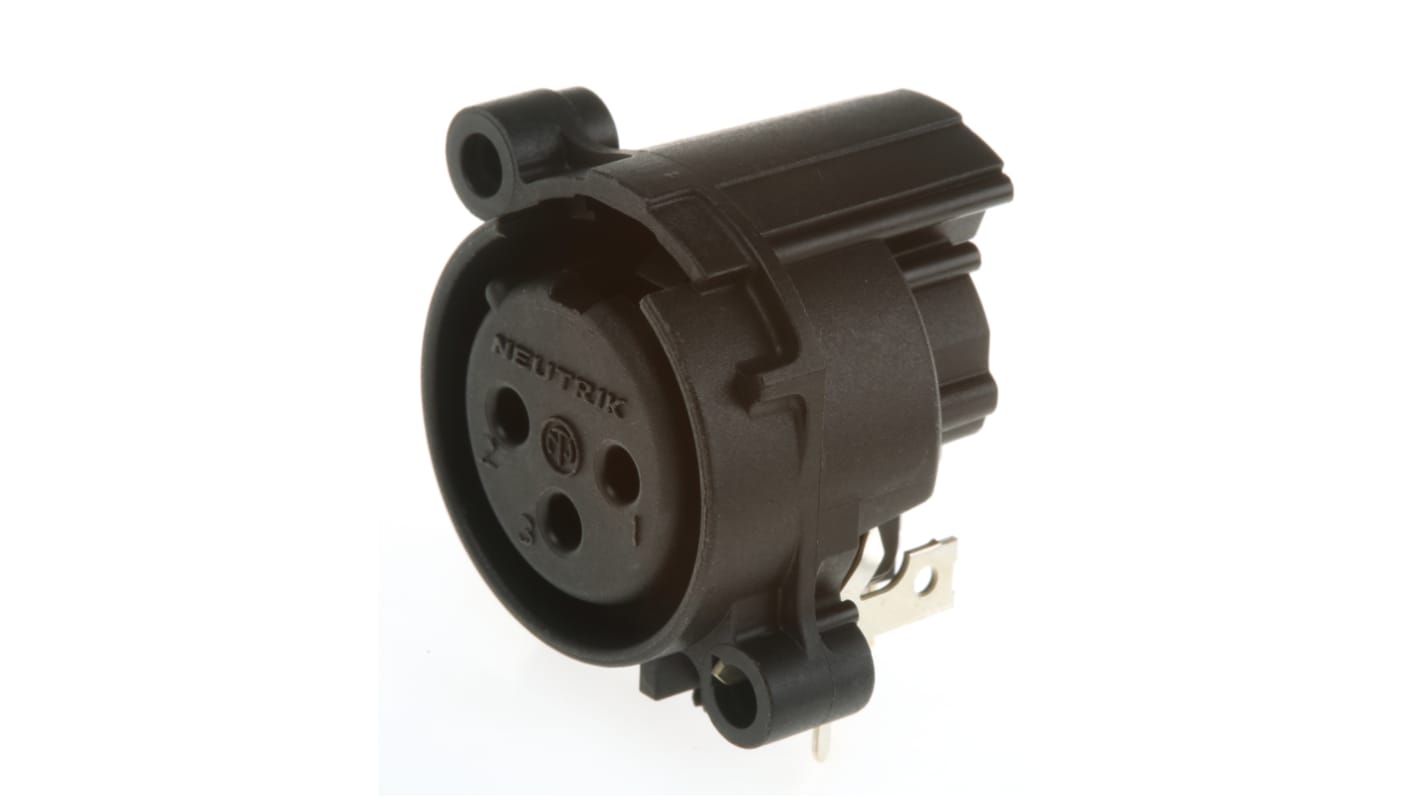

Neutrik PCB Mount XLR Connector, Right Angle, Female, 50 V, 3 Way, Gold Cobalt over Enickel Plating
- RS Stock No.:
- 725-9552
- Mfr. Part No.:
- NC3FAH2-0
- Brand:
- Neutrik
Bulk discount available
Subtotal (1 unit)*
£1.84
(exc. VAT)
£2.21
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 296 unit(s) ready to ship
- Plus 93 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 14 | £1.84 |
| 15 - 49 | £1.64 |
| 50 + | £1.42 |
*price indicative
- RS Stock No.:
- 725-9552
- Mfr. Part No.:
- NC3FAH2-0
- Brand:
- Neutrik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Neutrik | |
| Number of Contacts | 3 | |
| Gender | Female | |
| Mounting Type | PCB Mount | |
| Body Orientation | Right Angle | |
| Colour | Black | |
| Contact Plating | Gold Cobalt over Enickel | |
| Housing Material | Polyamide | |
| Termination Method | Solder | |
| Current Rating | 6A | |
| Voltage Rating | 50 V | |
| Contact Material | Bronze | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | +80°C | |
Select all | ||
|---|---|---|
Brand Neutrik | ||
Number of Contacts 3 | ||
Gender Female | ||
Mounting Type PCB Mount | ||
Body Orientation Right Angle | ||
Colour Black | ||
Contact Plating Gold Cobalt over Enickel | ||
Housing Material Polyamide | ||
Termination Method Solder | ||
Current Rating 6A | ||
Voltage Rating 50 V | ||
Contact Material Bronze | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature +80°C | ||
- COO (Country of Origin):
- LI
A Series Chassis Connector
Smallest size chassis mount connector to enable the highest packing density
Plastic housing with a steel latch lock or a retention spring
Fork type contacts with hard gold plating and polished contact areas
Plastic housing with a steel latch lock or a retention spring
Fork type contacts with hard gold plating and polished contact areas
