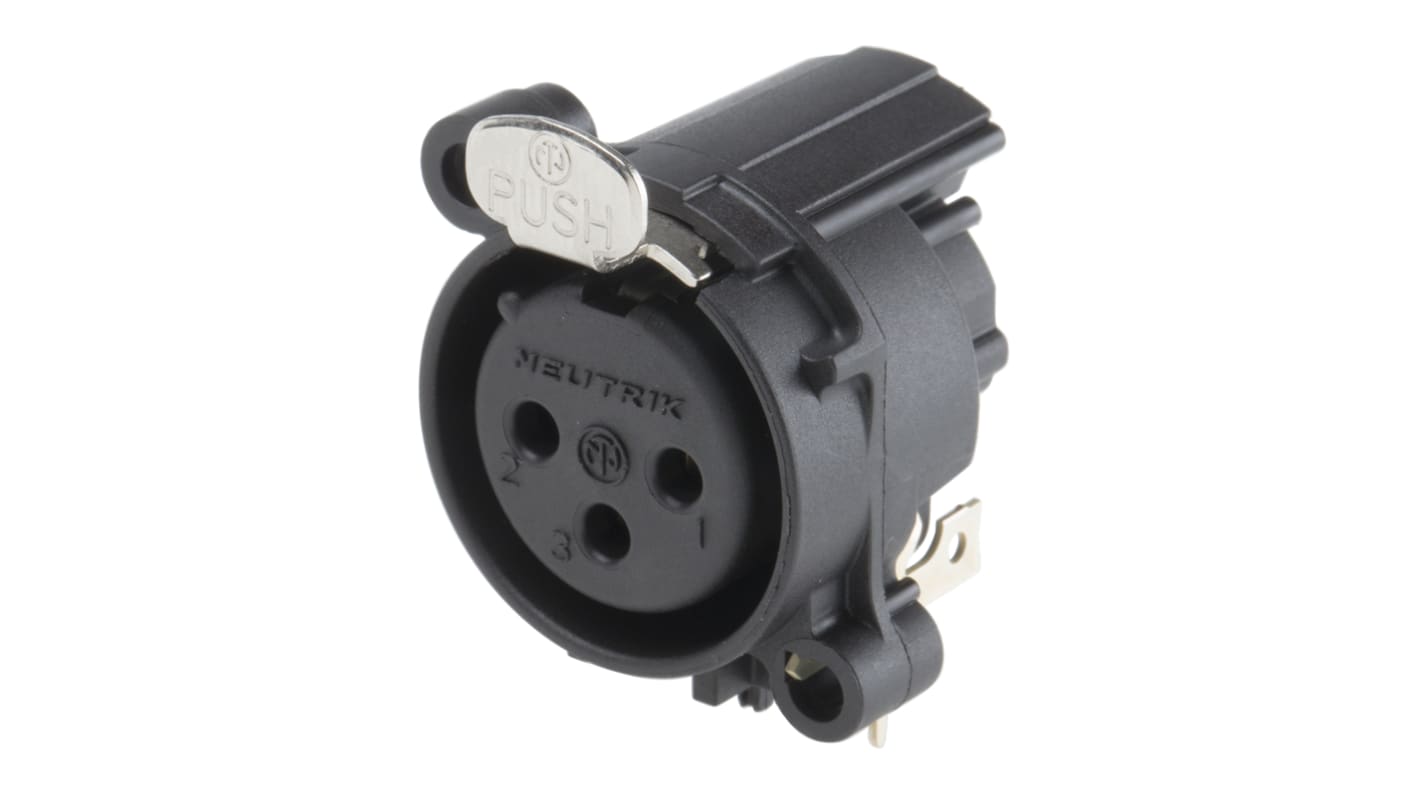

Neutrik PCB Mount XLR Connector, Right Angle, Female, 50 V, 3 Way, Gold Cobalt over Enickel Plating
- RS Stock No.:
- 725-9543
- Mfr. Part No.:
- NC3FAH2
- Brand:
- Neutrik
405 In stock - FREE next working day delivery available
57 available from Europe for delivery within 2 working day(s).
Price Each
£2.12
(exc. VAT)
£2.54
(inc. VAT)
Units | Per unit |
---|---|
1 - 14 | £2.12 |
15 - 49 | £1.93 |
50 + | £1.62 |
- RS Stock No.:
- 725-9543
- Mfr. Part No.:
- NC3FAH2
- Brand:
- Neutrik
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- LI
Product Details
A Series Chassis Connector
Smallest size chassis mount connector to enable the highest packing density
Plastic housing with a steel latch lock or a retention spring
Fork type contacts with hard gold plating and polished contact areas
Plastic housing with a steel latch lock or a retention spring
Fork type contacts with hard gold plating and polished contact areas
Specifications
Attribute | Value |
---|---|
Number of Contacts | 3 |
Gender | Female |
Mounting Type | PCB Mount |
Body Orientation | Right Angle |
Colour | Black |
Contact Plating | Gold Cobalt over Enickel |
Housing Material | Polyamide |
Termination Method | Solder |
Current Rating | 6A |
Voltage Rating | 50 V |
Contact Material | Bronze |
Minimum Operating Temperature | -30°C |
Maximum Operating Temperature | +80°C |
