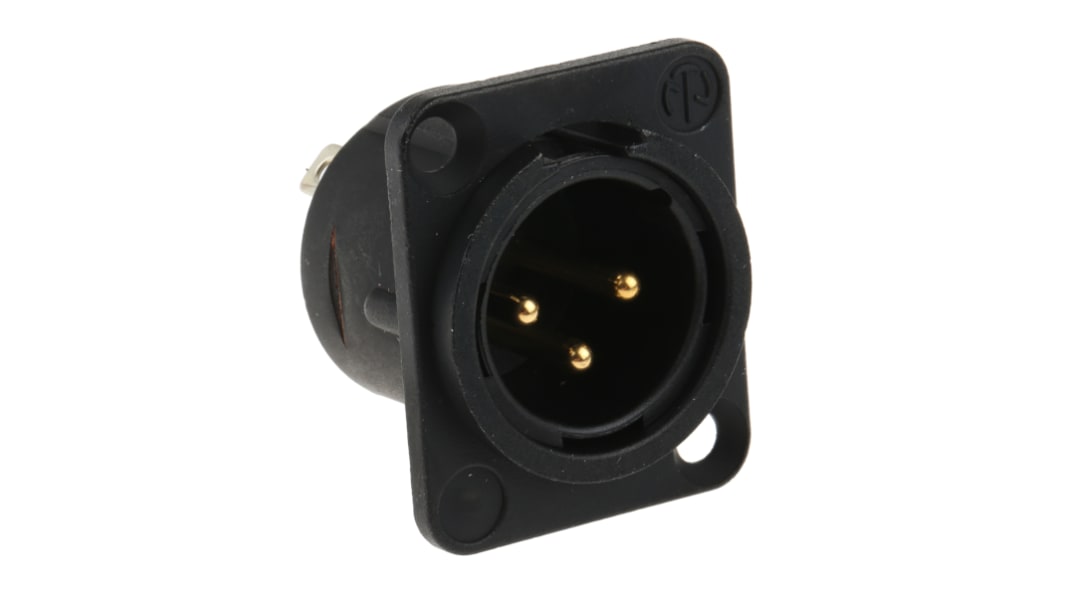

Neutrik Panel Mount XLR Connector, Male, 50 V, 3 Way, Gold over Nickel Plating
- RS Stock No.:
- 719-1863
- Distrelec Article No.:
- 142-33-268
- Mfr. Part No.:
- NC3MD-L-B-1
- Brand:
- Neutrik
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£5.00
(exc. VAT)
£6.00
(inc. VAT)
- RS Stock No.:
- 719-1863
- Distrelec Article No.:
- 142-33-268
- Mfr. Part No.:
- NC3MD-L-B-1
- Brand:
- Neutrik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Neutrik | |
Number of Contacts | 3 | |
Gender | Male | |
Mounting Type | Panel Mount | |
Body Orientation | Straight | |
Colour | Black Metallic | |
Contact Plating | Gold over Nickel | |
Housing Material | Zinc | |
Termination Method | Solder | |
Current Rating | 16A | |
Voltage Rating | 50 V | |
Contact Material | Brass | |
Minimum Operating Temperature | -30°C | |
Maximum Operating Temperature | +80°C | |
Select all | ||
---|---|---|
Brand Neutrik | ||
Number of Contacts 3 | ||
Gender Male | ||
Mounting Type Panel Mount | ||
Body Orientation Straight | ||
Colour Black Metallic | ||
Contact Plating Gold over Nickel | ||
Housing Material Zinc | ||
Termination Method Solder | ||
Current Rating 16A | ||
Voltage Rating 50 V | ||
Contact Material Brass | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature +80°C | ||

Neutrik XLR Connector
The Neutrik DL series male XLR connector has three contacts with gold over nickel plating. It has a current rating is 16A and the voltage rating is 50V. This panel-mount XLR connector can be mounted in either the front or rear of a panel. With a simple screw mount frame, this XLR connector is easy to install and features a locking mechanism that ensures reliable mating.
Features and Benefits
Black metal shell offers RF protection
Robust "D" metal shell
Solder cups for easy termination
Standardized D size 24mm panel cut out
Housing material is zinc
Operating temperature ranging between -30°C and 80°C
Robust "D" metal shell
Solder cups for easy termination
Standardized D size 24mm panel cut out
Housing material is zinc
Operating temperature ranging between -30°C and 80°C
Certifications
UL approved
UL 94 HB approved
IP40 rated
IEC 61076-2-103
IEC 68-2-20
UL 94 HB approved
IP40 rated
IEC 61076-2-103
IEC 68-2-20
