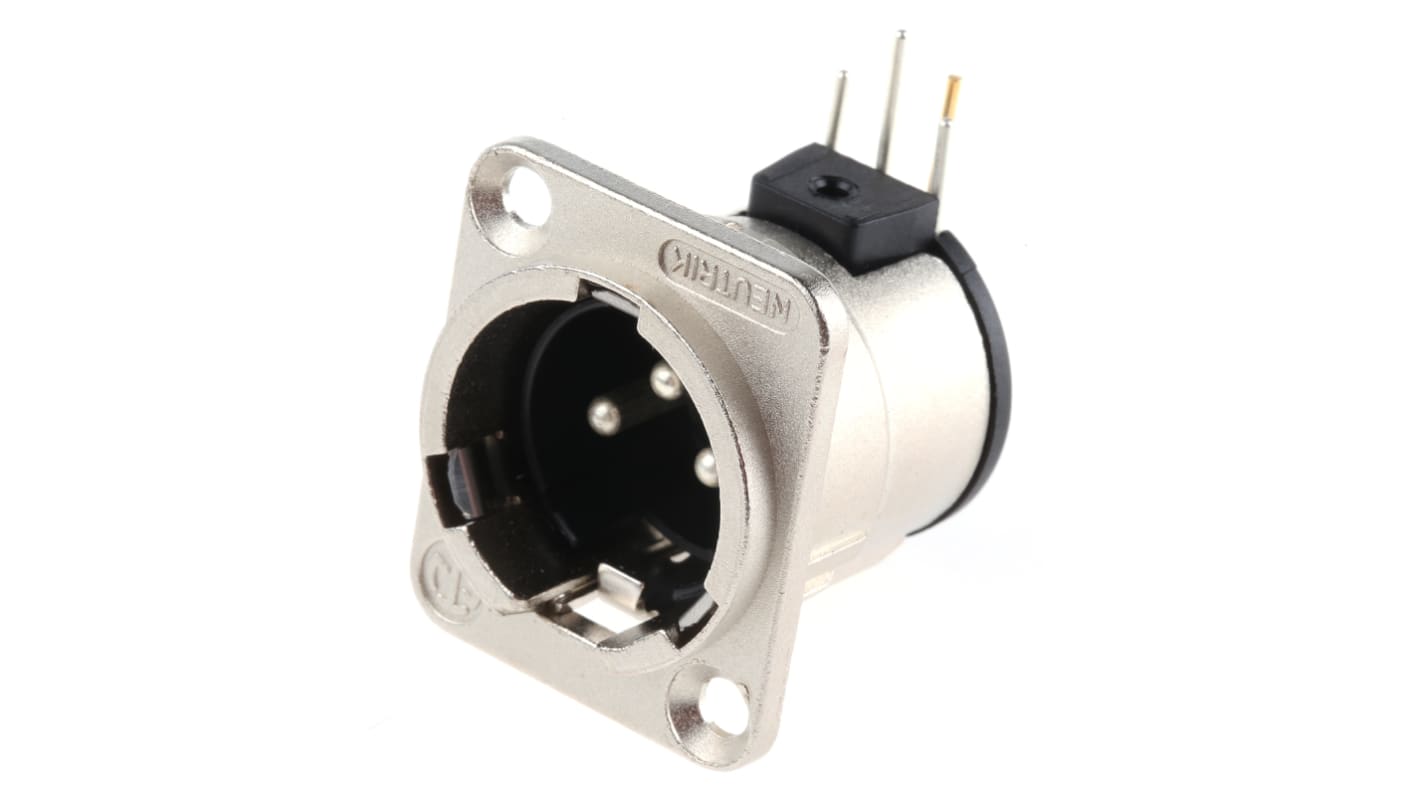

Neutrik Panel XLR Connector, Right Angle, 50V Male, 3 Way, Silver over Nickel Plating

View all XLR Connectors
Bulk discount available

Subtotal (1 unit)*

£6.14

(exc. VAT)

£7.37

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 54 unit(s) ready to ship
  • Plus 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 14£6.14
15 - 49£5.85
50 - 99£5.42
100 +£5.24

*price indicative

RS Stock No.:
448-238
Mfr. Part No.:
NC3MD-H
Brand:
Neutrik
Find similar products by selecting one or more attributes.
Select all

Brand

Neutrik

Number of Contacts

3

Product Type

XLR Connector

Mount Type

Panel

Current

6A

Orientation

Right Angle

Colour

Natural

Connector Gender

Male

Contact Plating

Silver over Nickel

Housing Material

Zinc

Termination Type

Solder

Voltage

50V

Minimum Operating Temperature

-30°C

Contact Gender

Male

Maximum Operating Temperature

80°C

Contact Material

Brass

Standards/Approvals

No

Series

NC3MD

D Series XLR PCB Mount Chassis Connectors


3-pole ’AXR/XLR’ compatible chassis plugs and sockets are designed for PCB mounting applications. The connectors feature a convenient method of removing the moulded plastic inserts from the connector bodies thereby permitting assembly, testing and servicing of PCBs without the removal of connector housings from the panel. The removable insert is locked into the connector housing by means of a 45° turn internal latch activated by a small flat blade screwdriver, stock no. 574-983. The connectors are available with straight or right angle pins for either vertical or horizontal PCB mounting.

H=30, W=26, D=26.7 Panel cut-out=24 dia. Fixing centres=24x19x3.5 dia.

Warning

Not to be used as mains connectors
