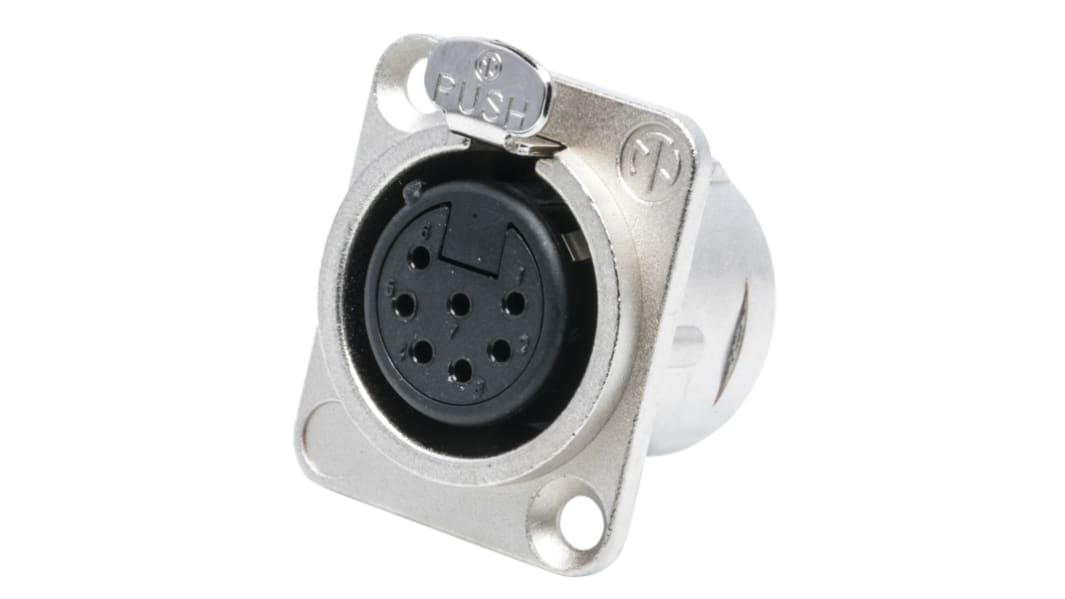

Neutrik Panel Mount XLR Connector, Female, 50 V, 7 Way, Silver over Nickel Plating

View all XLR Connectors
Bulk discount available

Subtotal (1 unit)*

£21.10

(exc. VAT)

£25.32

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • 80 left, ready to ship
  • Plus 37 left, ready to ship from another location
Units
Per unit
1 - 14£21.10
15 - 49£19.88
50 - 99£19.25
100 +£18.22

*price indicative

RS Stock No.:
448-7215
Distrelec Article No.:
142-33-045
Mfr. Part No.:
NC7FD-L-1
Brand:
Neutrik
Find similar products by selecting one or more attributes.
Select all

Brand

Neutrik

Number of Contacts

7

Gender

Female

Mounting Type

Panel Mount

Body Orientation

Straight

Colour

Natural

Contact Plating

Silver over Nickel

Housing Material

Zinc

Termination Method

Solder

Current Rating

5A

Voltage Rating

50 V

Contact Material

Brass

Minimum Operating Temperature

-30°C

Maximum Operating Temperature

+80°C

COO (Country of Origin):
LI

Neutrik XLR Connector


The Neutrik DL series female XLR connector has 7-pole with silver over Nickle-plating. It has a current rating of 7.5A with a voltage rating of 50V. This panel mount XLR connector can be mounted in either front or rear of a panel. With a simple screw mount frame, this XLR connector is to install and features a locking mechanism that ensures a reliable mating.
Warning:
Not to be used as mains connectors.

Features and Benefits


Robust "D" metal shell
Solder cups for easy termination
Standardized D sized 24mm panel cut out
Operating temperature ranging between -30°C and 80°C

Certifications


IEC 61076-2-103
IEC 68-2-20
IP40 rated
UL 94 HB approved
UL approved
