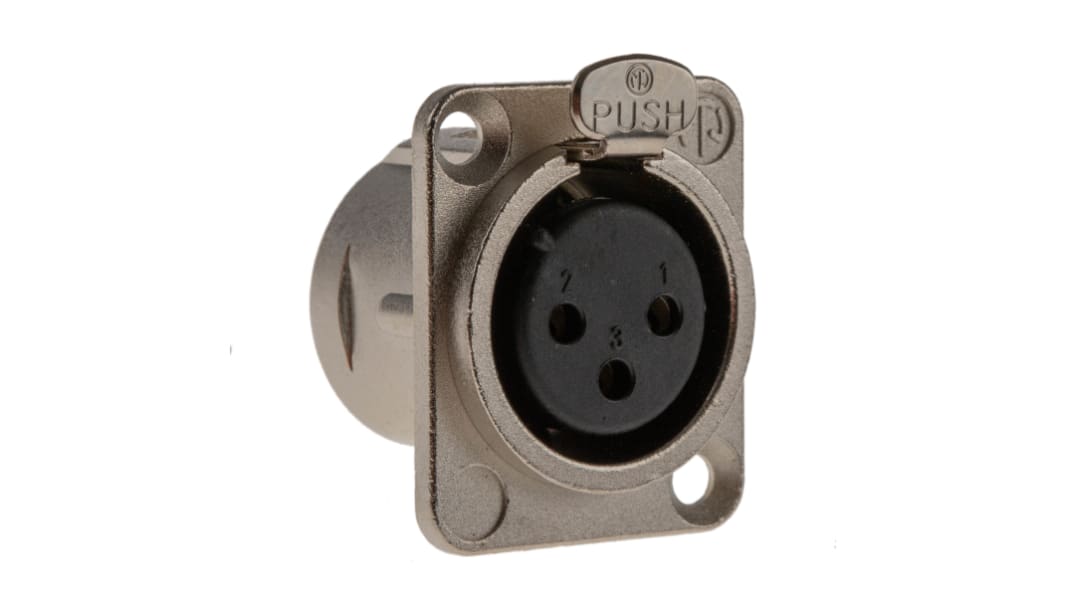

Neutrik Panel Mount XLR Connector, Female, 50 V, 3 Way, Silver over Nickel Plating

View all XLR Connectors
Bulk discount available

Subtotal (1 unit)*

£4.00

(exc. VAT)

£4.80

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • 6,744 left, ready to ship
  • Plus 10 left, ready to ship from another location
  • Plus 196 left, ready to ship from another location
Units
Per unit
1 - 14£4.00
15 - 49£3.89
50 - 99£3.78
100 +£3.69

*price indicative

RS Stock No.:
464-713
Distrelec Article No.:
142-33-003
Mfr. Part No.:
NC3FD-L-1
Brand:
Neutrik
Find similar products by selecting one or more attributes.
Select all

Brand

Neutrik

Number of Contacts

3

Gender

Female

Mounting Type

Panel Mount

Body Orientation

Straight

Contact Plating

Silver over Nickel

Housing Material

Nylon

Termination Method

Solder

Current Rating

16A

Voltage Rating

50 V

Contact Material

Bronze

Minimum Operating Temperature

-30°C

Maximum Operating Temperature

+80°C

Neutrik XLR Connector


The Neutrik DL series female XLR connector has three contacts with silver over nickel plating. It has a current rating is 16A and the voltage rating is 50V. This panel-mount XLR connector can be mounted in either front or rear of a panel. With a simple screw mount frame, this XLR connector is easy to install and features a locking mechanism that ensures a reliable mating.
Warning:
Not to be used as mains connectors.

Features and Benefits


Delivers balanced microphone and line-level signals over long distances,
Metal shell offers RF protection
Robust "D" metal shell
Solder cups for easy termination
Standardized D sized 24mm panel cut out
Housing material is nylon
Operating temperature ranging between -30°C and 80°C

Certifications


UL approved
