RS PRO Panel Mount XLR Connector, Female, 50 V, 4 Way, Silver Plating
- RS Stock No.:
- 208-5197
- Brand:
- RS PRO
66 In stock - FREE next working day delivery available
1 available from Europe for delivery within 1 working day(s).
Added
Price Each
£8.60
(exc. VAT)
£10.32
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £8.60 |
| 10 - 49 | £8.44 |
| 50 - 99 | £8.10 |
| 100 + | £7.57 |
- RS Stock No.:
- 208-5197
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

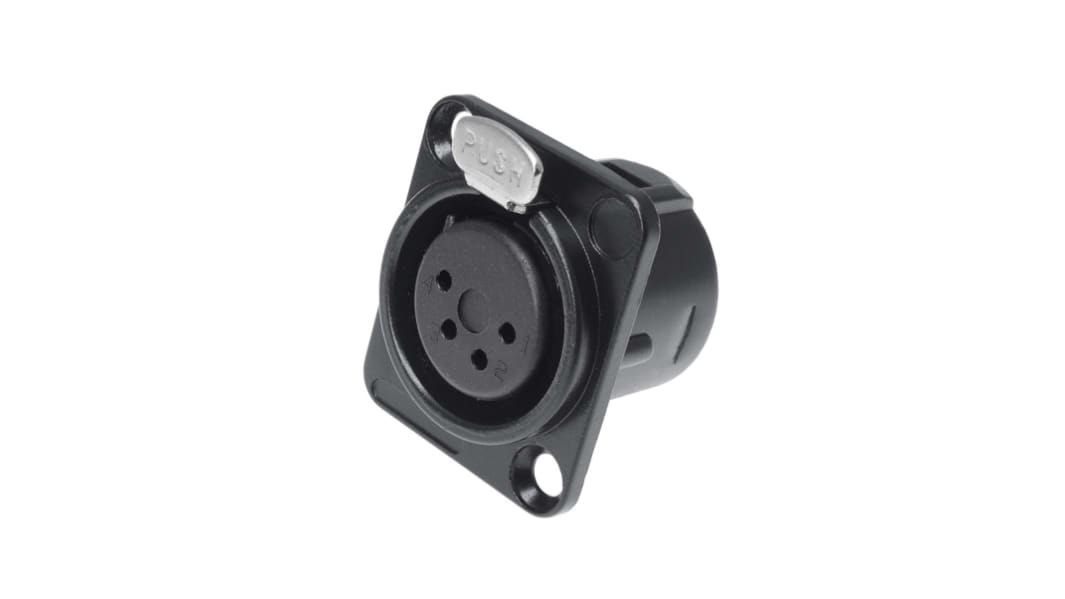

RS PRO Female Panel Mount XLR Connectors
The RS PRO range of XLR connectors keeps on improving. We are pleased to introduce a new range of female XLR panel-mount connectors perfect for creating a custom input /output system for home studios, PA system, or mobile recording equipment. These input connectors are made from high-quality materials, has a voltage rating of 50 V, a 7.5A current rating, and a handy locking mechanism.
Why would you need a XLR panel mount connector?
These XLR connectors are commonly found within a panel mount configuration, each XLR input should be terminated with the opposite XLR output connector. This setup is ideal for amplifiers, microphones, and audio equipment. When an XLR cable plug assembly connects to a male XLR connector it sends signals to a female XLR which carries a balanced signal which is best for rejecting noise.
Features and Benefits
• XLR Female
• Panel Mount
• Front or rear mountable
• Current rating: 7.5A
• Voltage rating: 50 V
• Number of contacts: 3, 4, 5, 6, and 7 pole are available
• Nickel or gold-plated contacts
• Solder Termination
Female XLR Panel Mount Options
• 3 contacts, 7.5A, 50 V, Silver plated, RS stock no: 2085185
• 5 contacts, 7.5A, 50 V, Gold plated, RS stock no: 2085195
• 4 contacts, 7.5A, 50 V, Silver plated, RS stock no: 2085197
• 6 contacts, 7.5A, 50 V, Nickel plated, RS stock no: 2085183
• 7 contacts, 7.5A, 50 V, Nickel plated, RS stock no: 2085184
Things to consider
Compatible Audio & Video Patch Panels
Application
Audio
Consumer Electronics
How to clean XLR Connectors safely and correctly?
The tolerance to dirt or contamination for XLR Connectors are extremely low. Therefore, to keep it free from dust, it is vital to use the appropriate equipment. We are recommending our own branded RS PRO electrical contact cleaning equipment RS stock no: 917-5914 or RS stock no: 554-298.
It is not good practice to use swabs or cloths as they could potentially leave threads which could result in decreasing contact performance and lifetime.
What is the difference between XLR Male and XLR Female Connectors?
An XLR Male connector has solid pins (usually between 3-pin to 7-pins) whereas the XLR Female is a socket input connector that is paired with a male output.
Why would you choose RS PRO for XLR Connectors?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
Specifications
Attribute | Value |
|---|---|
| Connector Type | XLR |
| Number of Contacts | 4 |
| Gender | Female |
| Mounting Type | Panel Mount |
| Body Orientation | Straight |
| Colour | Black |
| Contact Plating | Silver |
| Termination Method | Solder |
| Current Rating | 7.5A |
| Voltage Rating | 50 V |
