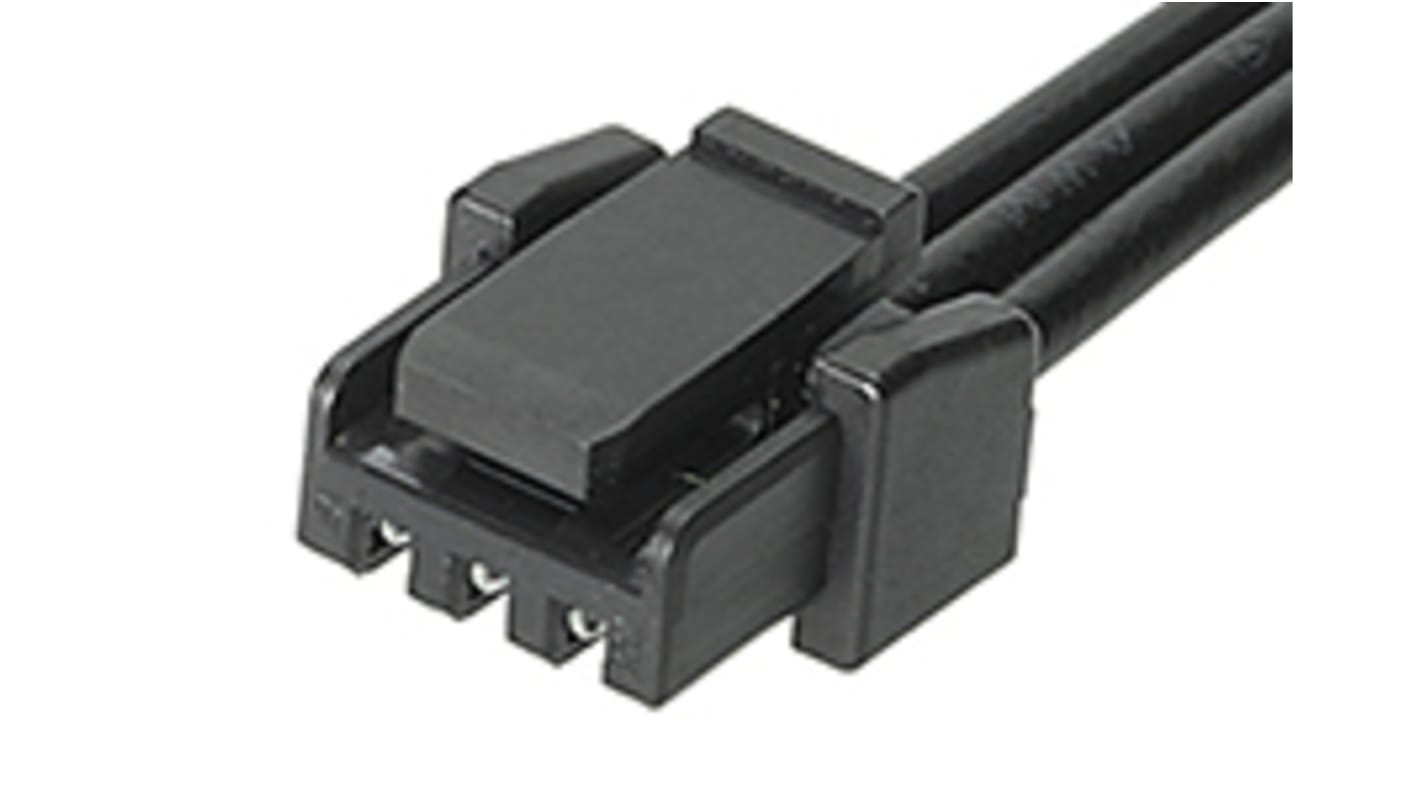

Molex 3 Way Female Micro-Lock Plus to 3 Way Female Micro-Lock Plus Wire to Board Cable, 600mm
- RS Stock No.:
- 162-4482
- Mfr. Part No.:
- 45111-0306
- Brand:
- Molex
Bulk discount available
Subtotal (1 bag of 250 units)*
£432.50
(exc. VAT)
£520.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,750 unit(s) shipping from 28 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 250 - 250 | £1.73 | £432.50 |
| 500 - 1000 | £1.643 | £410.75 |
| 1250 - 2250 | £1.521 | £380.25 |
| 2500 - 6000 | £1.46 | £365.00 |
| 6250 + | £1.384 | £346.00 |
*price indicative
- RS Stock No.:
- 162-4482
- Mfr. Part No.:
- 45111-0306
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Series | Micro-Lock Plus | |
| Connector 1 | Micro-Lock Plus | |
| Series Number | 45111 | |
| Connector 2 | Micro-Lock Plus | |
| Connector 1 Gender | Female | |
| Connector 2 Gender | Female | |
| Connector 1 Number of Contacts | 3 | |
| Connector 2 Number of Contacts | 3 | |
| Connector 1 Housing Gender | Male | |
| Connector 2 Housing Gender | Male | |
| Pitch | 1.25mm | |
| Sheath Colour | Black | |
| Cable Length | 600mm | |
| Voltage Rating | 50 V dc, 50 V ac | |
| Current Rating | 1.5 A | |
| Contact Plating | Tin | |
| Operating Temperature Range | -40 → +105 °C | |
Select all | ||
|---|---|---|
Brand Molex | ||
Series Micro-Lock Plus | ||
Connector 1 Micro-Lock Plus | ||
Series Number 45111 | ||
Connector 2 Micro-Lock Plus | ||
Connector 1 Gender Female | ||
Connector 2 Gender Female | ||
Connector 1 Number of Contacts 3 | ||
Connector 2 Number of Contacts 3 | ||
Connector 1 Housing Gender Male | ||
Connector 2 Housing Gender Male | ||
Pitch 1.25mm | ||
Sheath Colour Black | ||
Cable Length 600mm | ||
Voltage Rating 50 V dc, 50 V ac | ||
Current Rating 1.5 A | ||
Contact Plating Tin | ||
Operating Temperature Range -40 → +105 °C | ||
UL 1061 discrete wires for micro cable assemblies, UL 1007 discrete wires for other assemblies
Decreases engineering time and resources
Pin-to-pin mapping from receptacle to PCB header
Micro-Lock Plus Cable Assembly offers 1.25mm-pitch form factor and carries 1.5A with positive lock
Decreases engineering time and resources
Pin-to-pin mapping from receptacle to PCB header
Micro-Lock Plus Cable Assembly offers 1.25mm-pitch form factor and carries 1.5A with positive lock
Micro-Lock PLUS-to-Micro-Lock PLUS Off-the-Shelf (OTS) Cable Assembly, 1.25mm Pitch, Single Row, 600.00mm Length, 3 Circuits, Black
