- RS Stock No.:
- 162-4495
- Mfr. Part No.:
- 45111-0506
- Brand:
- Molex
Available to back order for despatch 03/12/2024
Added
Price Each (In a Bag of 250)
£1.694
(exc. VAT)
£2.033
(inc. VAT)
Units | Per unit | Per Bag* |
250 - 250 | £1.694 | £423.50 |
500 + | £1.61 | £402.50 |
*price indicative |
- RS Stock No.:
- 162-4495
- Mfr. Part No.:
- 45111-0506
- Brand:
- Molex
Technical Reference
Legislation and Compliance
Product Details
UL 1061 discrete wires for micro cable assemblies, UL 1007 discrete wires for other assemblies
Decreases engineering time and resources
Pin-to-pin mapping from receptacle to PCB header
Micro-Lock Plus Cable Assembly offers 1.25mm-pitch form factor and carries 1.5A with positive lock
Decreases engineering time and resources
Pin-to-pin mapping from receptacle to PCB header
Micro-Lock Plus Cable Assembly offers 1.25mm-pitch form factor and carries 1.5A with positive lock

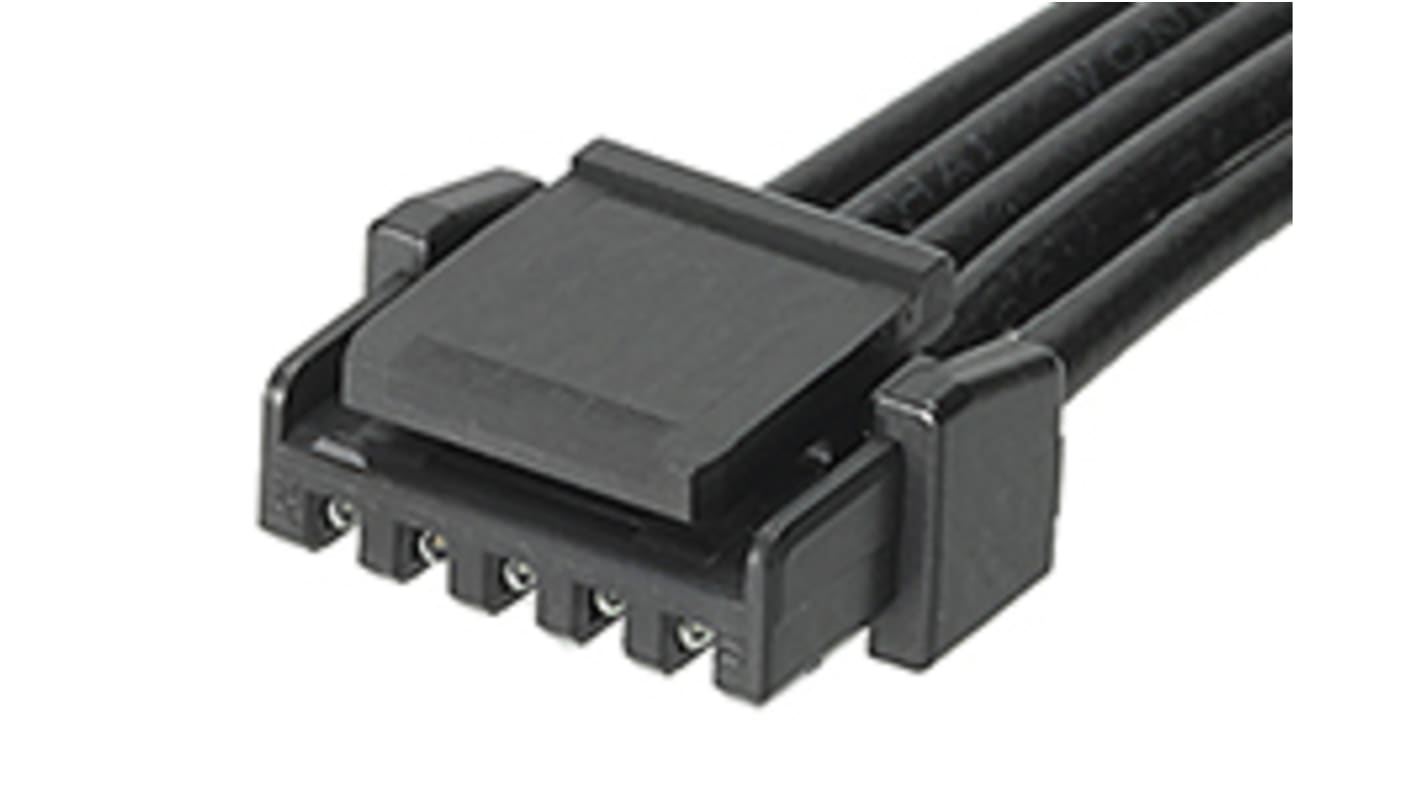

Micro-Lock PLUS-to-Micro-Lock PLUS Off-the-Shelf (OTS) Cable Assembly, 1.25mm Pitch, Single Row, 600.00mm Length, 5 Circuits, Black
Specifications
Attribute | Value |
---|---|
Connector 1 | Micro-Lock Plus |
Series | Micro-Lock Plus |
Series Number | 45111 |
Connector 2 | Micro-Lock Plus |
Connector 1 Gender | Female |
Connector 2 Gender | Female |
Connector 1 Number of Contacts | 5 |
Connector 2 Number of Contacts | 5 |
Connector 1 Housing Gender | Male |
Connector 2 Housing Gender | Male |
Pitch | 1.25mm |
Sheath Colour | Black |
Cable Length | 600mm |
Voltage Rating | 50 V ac, 50 V dc |
Current Rating | 1.5 A |
Operating Temperature Range | -40 → +105 °C |
Contact Plating | Tin |
