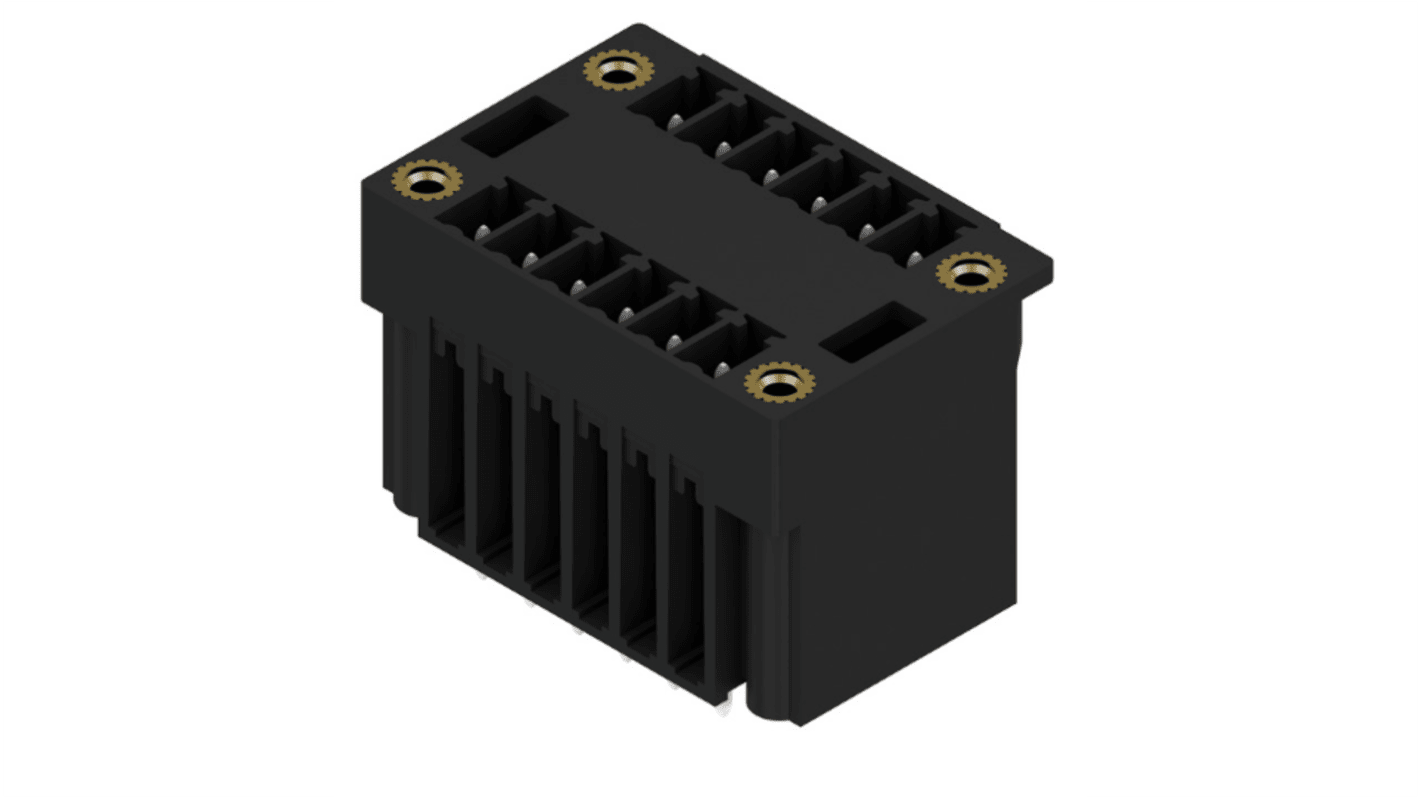

Weidmuller, SCD-THR Male PCB Header, 3.81mm Pitch, 12 Way, 2 Row
- RS Stock No.:
- 255-8143
- Mfr. Part No.:
- 1031520000
- Brand:
- Weidmüller
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 255-8143
- Mfr. Part No.:
- 1031520000
- Brand:
- Weidmüller
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Weidmüller | |
| Number of Contacts | 12 | |
| Number of Rows | 2 | |
| Pitch | 3.81mm | |
| Gender | Male | |
| Mounting Type | PCB | |
| Series | SCD-THR | |
| Width | 33.25mm | |
| Termination Method | PCB | |
Select all | ||
|---|---|---|
Brand Weidmüller | ||
Number of Contacts 12 | ||
Number of Rows 2 | ||
Pitch 3.81mm | ||
Gender Male | ||
Mounting Type PCB | ||
Series SCD-THR | ||
Width 33.25mm | ||
Termination Method PCB | ||
- COO (Country of Origin):
- CN
Weidmuller SCD-THR Series PCB Header, 12 Contacts, 3.81mm Pitch - 1031520000
This PCB header is a high-temperature-resistant component designed for reliable connections on printed circuit boards. With a dual-row configuration featuring 12 contacts, this male PCB header has a 3.81mm pitch that allows for efficient installation in various applications. It is built to facilitate a streamlined workflow by enabling two interfaces on a single surface.
Features & Benefits
• High-temperature resistance suitable for reflow soldering
• Allows dual interface connections on one surface
• Flush access connections enhance space utilisation
• Designed with space for labelling and coding
• Fits standard layouts for easy integration
• Packed securely in a cardboard box for protection
• Allows dual interface connections on one surface
• Flush access connections enhance space utilisation
• Designed with space for labelling and coding
• Fits standard layouts for easy integration
• Packed securely in a cardboard box for protection
Applications
• Used for circuit design in automation systems
• Ideal for connections in electronic devices
• Suitable for mechanical assembly
• Ideal for electrical panel designs
• Recommended for various connector requiring high reliability
• Ideal for connections in electronic devices
• Suitable for mechanical assembly
• Ideal for electrical panel designs
• Recommended for various connector requiring high reliability
What temperatures can be handled during operation and storage?
It can operate in temperatures ranging from -50 to 120 °C for normal use. Storage temperatures can vary between -40 to 70 °C, ensuring versatility in different environments.
How does the design promote efficient workflow?
The PCB header's dual-row layout enables two interfaces on a single surface, minimising assembly steps and enhancing overall productivity during circuit board assembly.
What is the significance of the 3.81 mm pitch dimension?
The 3.81 mm pitch allows compatibility with standard PCB layouts, facilitating straightforward integration into existing designs while ensuring reliable connections across the board.
What are the benefits of the tinned copper alloy contact material?
The tinned copper alloy enhances conductivity, improving electrical performance while ensuring durability and resistance against oxidation, thus extending the product's service life.
What safety features are incorporated into the design?
The design includes touch-safe protection according to DIN VDE standards, making it suitable for various applications where user safety is a priority.
