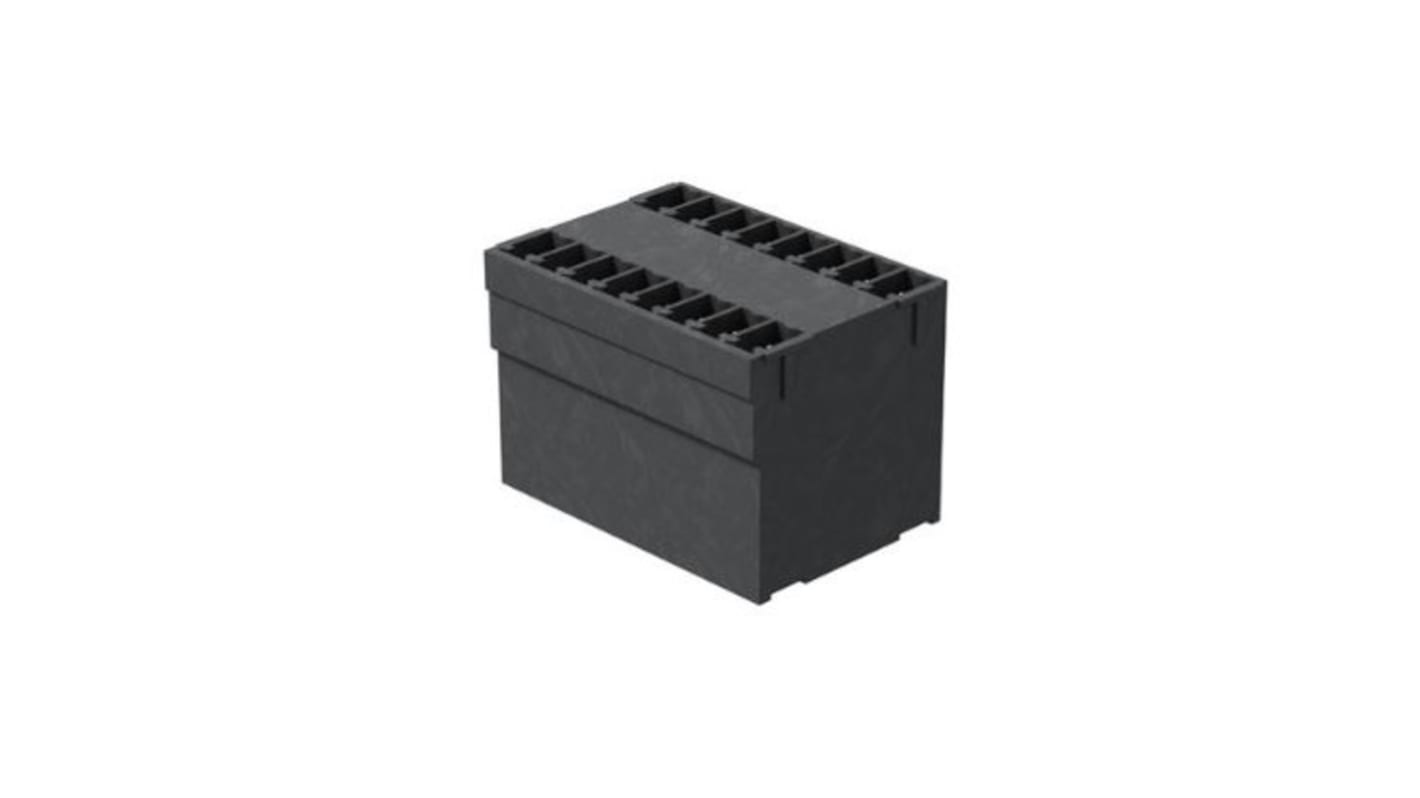

Weidmuller, SCD-THR Male PCB Header, 3.81mm Pitch, 8 Way, 2 Row
- RS Stock No.:
- 255-8134
- Mfr. Part No.:
- 1030970000
- Brand:
- Weidmüller
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 255-8134
- Mfr. Part No.:
- 1030970000
- Brand:
- Weidmüller
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Weidmüller | |
| Number of Contacts | 8 | |
| Number of Rows | 2 | |
| Pitch | 3.81mm | |
| Gender | Male | |
| Mounting Type | PCB | |
| Series | SCD-THR | |
| Width | 16.63mm | |
| Termination Method | PCB | |
Select all | ||
|---|---|---|
Brand Weidmüller | ||
Number of Contacts 8 | ||
Number of Rows 2 | ||
Pitch 3.81mm | ||
Gender Male | ||
Mounting Type PCB | ||
Series SCD-THR | ||
Width 16.63mm | ||
Termination Method PCB | ||
- COO (Country of Origin):
- CN
Weidmuller SCD-THR Series PCB Header, 8 Contacts, 2 Rows - 1030970000
This PCB header is a robust solution designed specifically for electronic applications that require reliable connections. With a compact dual-row configuration, it features 8 contacts in a space-efficient arrangement. This high-temperature-resistant component measures 16.63mm in width and is built for PCB mounting, ensuring durability and performance in demanding environments.
Features & Benefits
• High temperature resistance allows for reflow soldering process
• Dual-row configuration enables dual interface usage
• 3.81mm pitch supports standard connector layouts
• Space available for easy labelling and coding
• Consistent performance with a rated current of 17.5A
• Compatible with THT/THR solder connections for versatility
• Dual-row configuration enables dual interface usage
• 3.81mm pitch supports standard connector layouts
• Space available for easy labelling and coding
• Consistent performance with a rated current of 17.5A
• Compatible with THT/THR solder connections for versatility
Applications
• Ideal for industrial automation systems
• Used for robotics for secure electrical connections
• Suitable for telecommunications equipment assemblies
• Recommended for consumer electronics for reliable interfaces
• Used for robotics for secure electrical connections
• Suitable for telecommunications equipment assemblies
• Recommended for consumer electronics for reliable interfaces
What is the operational voltage range for this connector?
The connector has a rated voltage of 320V for pollution degree II and 160V for pollution degree III, accommodating various application requirements.
What are the specifications regarding solder pin dimensions?
The solder pins are octagonal with a diameter of 1.0mm and a length of 3.2mm, designed for secure and effective connections on PCB layouts.
How does the design support ease of assembly?
The 90° outlet direction allows for flush connections at the same level on the front board, simplifying the assembly process and enhancing accessibility during installation.
What materials are used in the construction of this PCB header?
The header is constructed from a copper alloy with a tinned surface for conductivity, while its insulating material is LCP GF, ensuring durability in challenging environments.
Can this component be used in outdoor applications?
While it performs well in many settings, the operational temperature ranges from -50 to 120 °C, ensuring suitability for various indoor applications
however, the specific environmental factors should be considered for outdoor use.
