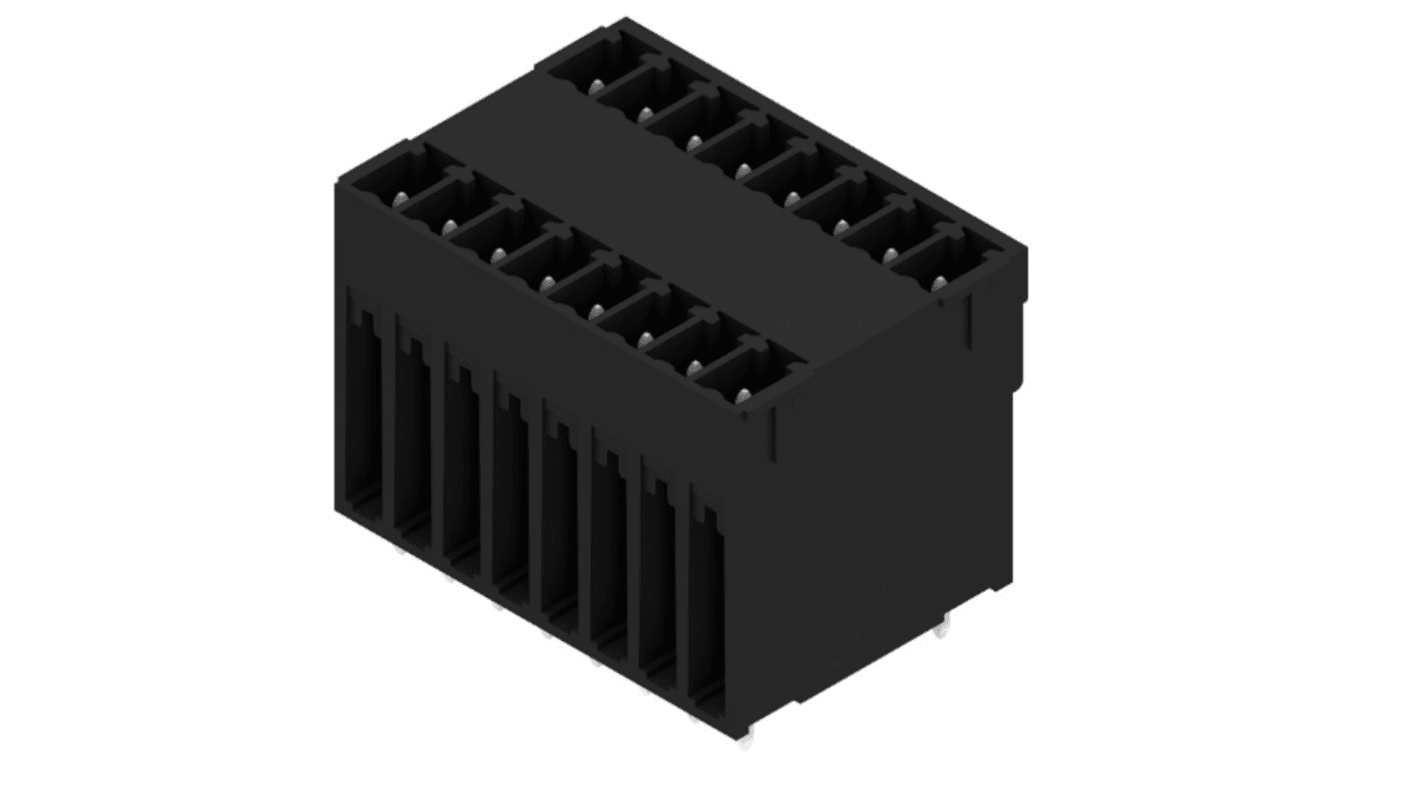

Weidmuller, SCD-THR Male PCB Header, 3.81mm Pitch, 16 Way, 2 Row
- RS Stock No.:
- 255-8138
- Mfr. Part No.:
- 1031020000
- Brand:
- Weidmüller
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 255-8138
- Mfr. Part No.:
- 1031020000
- Brand:
- Weidmüller
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Weidmüller | |
| Number of Contacts | 16 | |
| Number of Rows | 2 | |
| Pitch | 3.81mm | |
| Gender | Male | |
| Mounting Type | PCB | |
| Series | SCD-THR | |
| Width | 31.87mm | |
| Termination Method | PCB | |
Select all | ||
|---|---|---|
Brand Weidmüller | ||
Number of Contacts 16 | ||
Number of Rows 2 | ||
Pitch 3.81mm | ||
Gender Male | ||
Mounting Type PCB | ||
Series SCD-THR | ||
Width 31.87mm | ||
Termination Method PCB | ||
- COO (Country of Origin):
- CN
Weidmuller SCD-THR Series PCB Header, 16 Contacts, Male Gender - 1031020000
This PCB header is designed for efficient connection on printed circuit boards. The product features a dual-row layout comprising 16 contacts arranged on a 3.81mm pitch. With dimensions of 31.87mm in width and an overall height of 25.1mm, it ensures optimal space utilisation on PCBs. The component facilitates reflow soldering and is suitable for a range of electronic applications.
