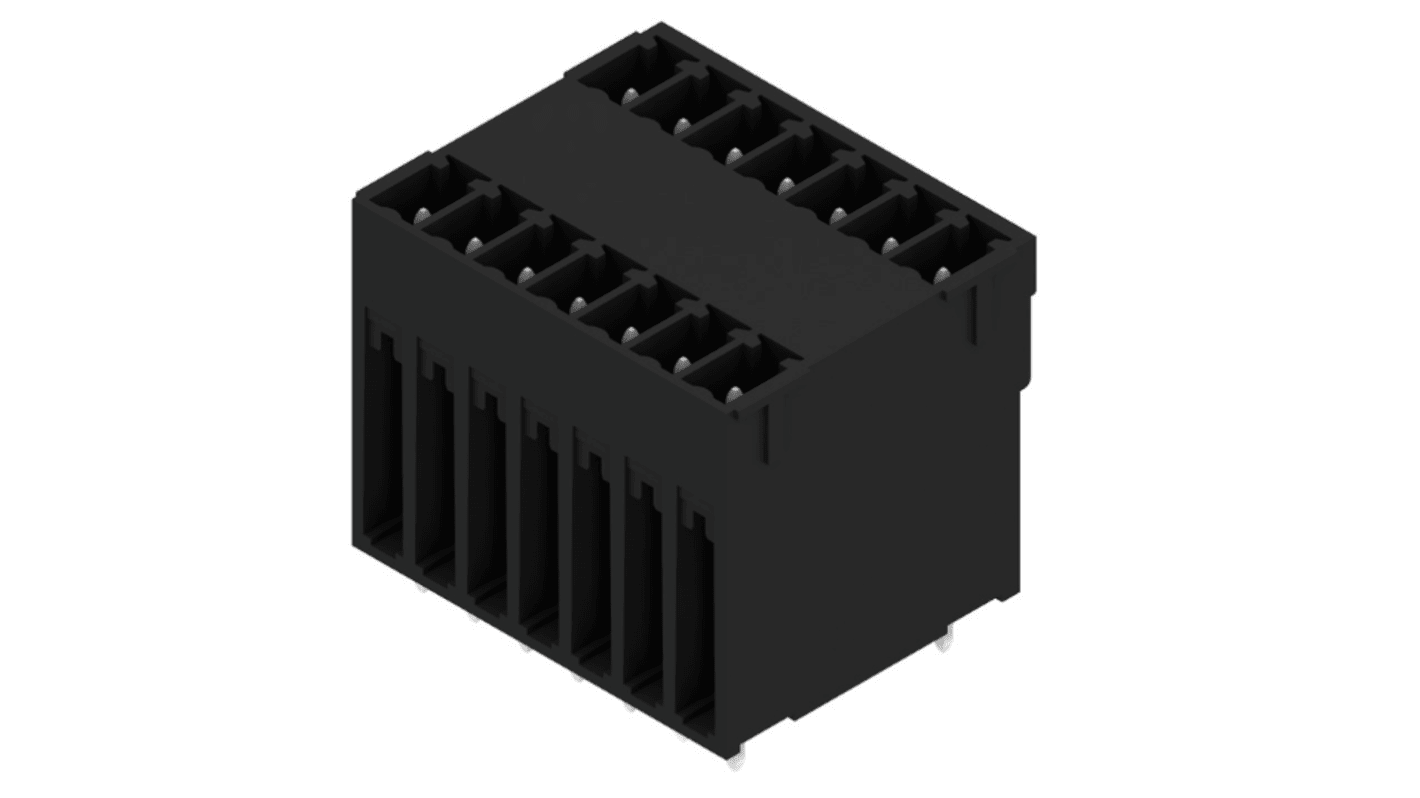

Weidmuller, SCD-THR Male PCB Header, 3.81mm Pitch, 14 Way, 2 Row
- RS Stock No.:
- 255-8137
- Mfr. Part No.:
- 1031010000
- Brand:
- Weidmüller
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 255-8137
- Mfr. Part No.:
- 1031010000
- Brand:
- Weidmüller
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Weidmüller | |
| Number of Contacts | 14 | |
| Number of Rows | 2 | |
| Pitch | 3.81mm | |
| Gender | Male | |
| Mounting Type | PCB | |
| Series | SCD-THR | |
| Width | 28.06mm | |
| Termination Method | PCB | |
Select all | ||
|---|---|---|
Brand Weidmüller | ||
Number of Contacts 14 | ||
Number of Rows 2 | ||
Pitch 3.81mm | ||
Gender Male | ||
Mounting Type PCB | ||
Series SCD-THR | ||
Width 28.06mm | ||
Termination Method PCB | ||
- COO (Country of Origin):
- CN
Weidmuller SCD-THR Series PCB Header, 14 Contacts, 3.81mm Pitch - 1031010000
This PCB Header is a high-temperature-resistant two-tier connector designed for reflow soldering. With a pitch of 3.81mm and capable of accommodating 14 contacts across two rows, this connector is ideal for efficient connectivity in electronic applications. Its robust construction and design cater to the demands of automation and electrical industries.
Features & Benefits
• Supports dual row connections for space-efficient design
• Flush access for front board connectivity enhances usability
• Tinned black finish provides superior corrosion resistance
• Compact form factor optimises PCB real estate
• Easily labelled and coded for customised requirement identification
• Flush access for front board connectivity enhances usability
• Tinned black finish provides superior corrosion resistance
• Compact form factor optimises PCB real estate
• Easily labelled and coded for customised requirement identification
Applications
• Used for automation systems for streamlined connections
• Ideal for electronic devices requiring compact layout
• Suitable for reflow soldering in PCB assembly
• Recommended for electrical enclosures for secure connectivity
• Ideal for electronic devices requiring compact layout
• Suitable for reflow soldering in PCB assembly
• Recommended for electrical enclosures for secure connectivity
How does this product enhance connection stability in high-temperature environments?
The connector is specifically designed to withstand temperatures up to 120°C, ensuring stable performance across various applications, reducing the risk of connections failing under heat stress.
What is the significance of the 3.81mm pitch in this connector?
The 3.81mm pitch is a standard measurement that allows for compatibility with various layouts of electronic components, ensuring seamless integration into existing PCB designs and reducing revision times.
How can you ensure proper soldering during assembly?
Adhering to recommended soldering profiles, such as maintaining peak temperatures around 260°C for a maximum of 10 seconds, ensures robust connections without causing thermal damage during the soldering process.
