JST, XA Female Connector Housing, 2.5mm Pitch, 10 Way, 1 Row
- RS Stock No.:
- 175-4881
- Mfr. Part No.:
- XARR-10V
- Brand:
- JST
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 175-4881
- Mfr. Part No.:
- XARR-10V
- Brand:
- JST
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JST | |
| Number of Contacts | 10 | |
| Number of Rows | 1 | |
| Pitch | 2.5mm | |
| Gender | Female | |
| Mounting Type | Cable Mount | |
| Series | XA | |
| For Use With | XA Connectors | |
| Body Orientation | Straight | |
| Length | 27.5mm | |
| Width | 21.6mm | |
| Housing Material | Polyamide | |
Select all | ||
|---|---|---|
Brand JST | ||
Number of Contacts 10 | ||
Number of Rows 1 | ||
Pitch 2.5mm | ||
Gender Female | ||
Mounting Type Cable Mount | ||
Series XA | ||
For Use With XA Connectors | ||
Body Orientation Straight | ||
Length 27.5mm | ||
Width 21.6mm | ||
Housing Material Polyamide | ||
- COO (Country of Origin):
- JP

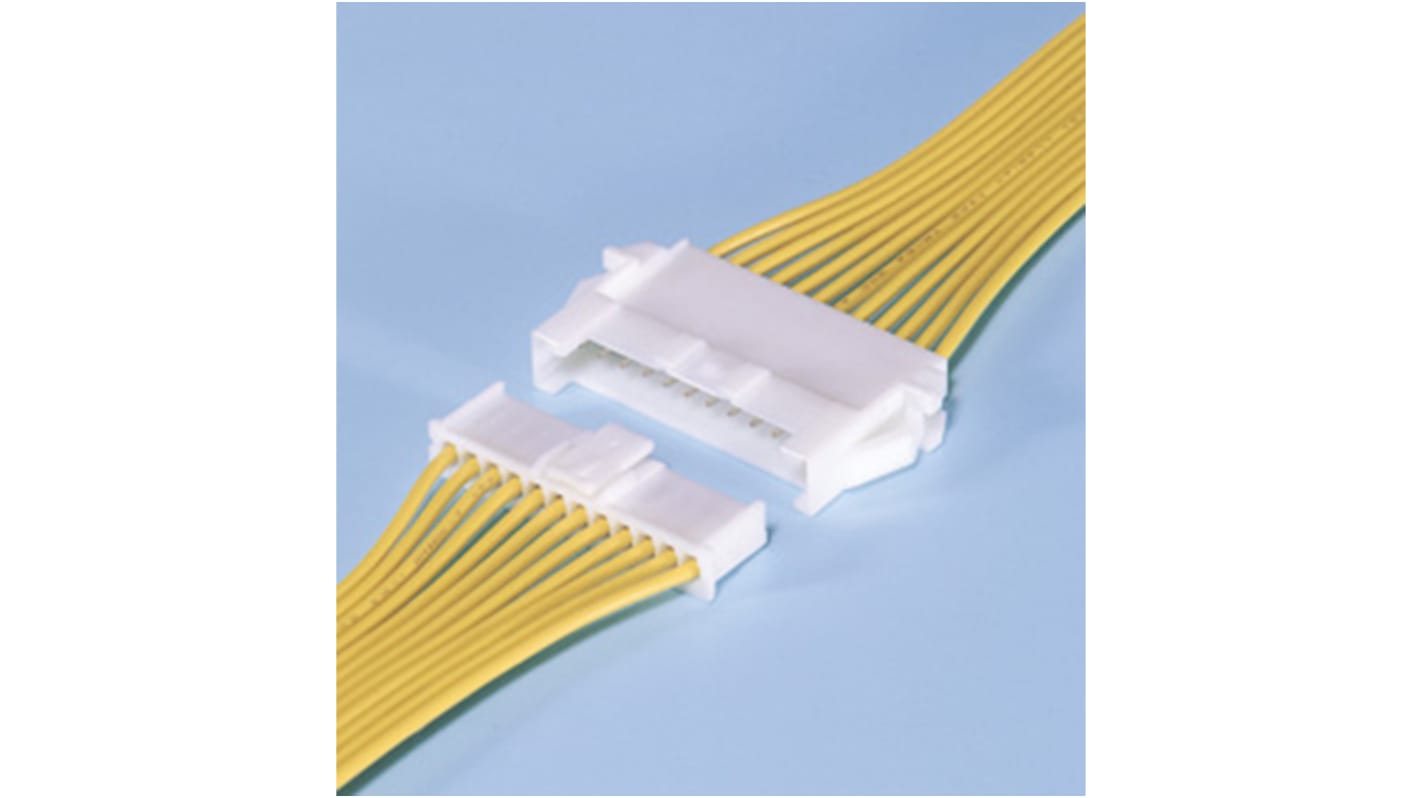

The JST XARR-10V is a XA series, 10 way, 2. 5 mm pitch, receptacle housing (for pin contact) crimp style wire to wire connector with panel locks.
Secure locking mechanism
Mountable type secondary retainer
Common socket with XA connector for printed circuit board
Inner type contact lance
Mountable on variety of panels
Mountable type secondary retainer
Common socket with XA connector for printed circuit board
Inner type contact lance
Mountable on variety of panels
