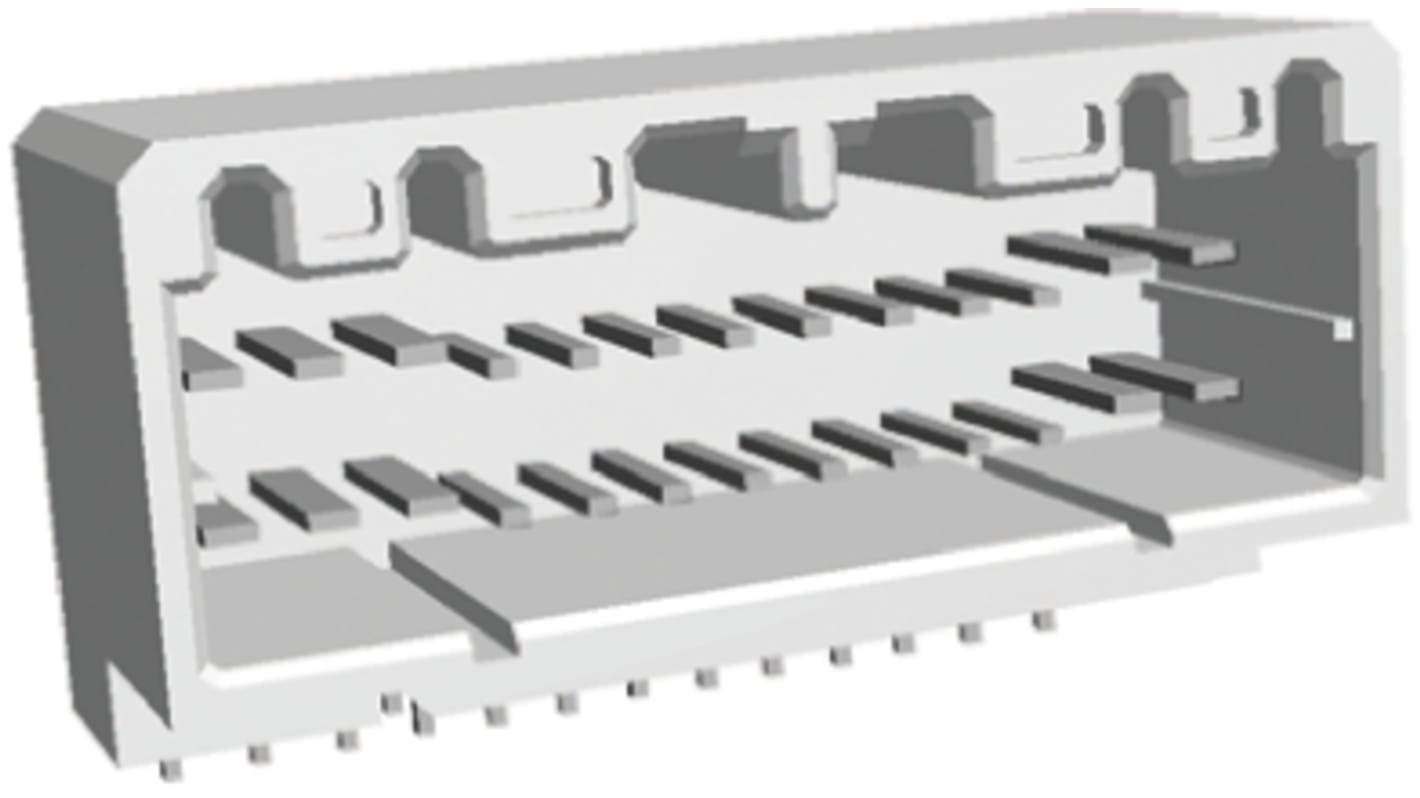

TE Connectivity, MULTILOCK 040/070 Female Connector Housing, 3.5 mm Pitch, 26 Way, 2 Row Right Angle
- RS Stock No.:
- 161-4101
- Mfr. Part No.:
- 178811-1
- Brand:
- TE Connectivity
Subtotal (1 tube of 10 units)*
£79.95
(exc. VAT)
£95.94
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 21 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 10 + | £7.995 | £79.95 |
*price indicative
- RS Stock No.:
- 161-4101
- Mfr. Part No.:
- 178811-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Connector Housing | |
| Number of Contacts | 26 | |
| Number of Rows | 2 | |
| Pitch | 3.5mm | |
| Connector Gender | Female | |
| Mount Type | Through Hole | |
| For Use With | Wire-to-Board Connector | |
| Orientation | Right Angle | |
| Housing Material | Polybutylene Terephthalate | |
| Series | MULTILOCK 040/070 | |
| Width | 21.9mm | |
| Length | 45.4mm | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Connector Housing | ||
Number of Contacts 26 | ||
Number of Rows 2 | ||
Pitch 3.5mm | ||
Connector Gender Female | ||
Mount Type Through Hole | ||
For Use With Wire-to-Board Connector | ||
Orientation Right Angle | ||
Housing Material Polybutylene Terephthalate | ||
Series MULTILOCK 040/070 | ||
Width 21.9mm | ||
Length 45.4mm | ||
Standards/Approvals No | ||
TE Connectivity MULTILOCK 040/070 Cable Mount Hybrid I/O Plug Housing Connectors
TE Connectivity MULTILOCK Connectors and Contacts
This is a miniature high density connector system offering a wire to wire and wire to board I/O solution commonly used in the automotive industry but suitable for many varying signal transfer applications.
Snap in, crimp contacts for cable receptacles
Board mounting options are pre-loaded with male contacts
For wire to board connections utilise a cable and a board receptacle
Cable cap accepts female contacts, cable plug accepts male contacts
Cable cap mates cable plug to allow wire to wire connections
High density wiring connectors with 2.5mm contact centres
