- RS Stock No.:
- 249-3146
- Mfr. Part No.:
- ANT-2.4-FPC-LV100UF
- Brand:
- Linx
700 In stock - FREE next working day delivery available
Added
Price Each (In a Bag of 100)
£3.56
(exc. VAT)
£4.27
(inc. VAT)
Units | Per unit | Per Bag* |
100 - 100 | £3.56 | £356.00 |
200 - 400 | £3.382 | £338.20 |
500 + | £3.213 | £321.30 |
*price indicative |
- RS Stock No.:
- 249-3146
- Mfr. Part No.:
- ANT-2.4-FPC-LV100UF
- Brand:
- Linx
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

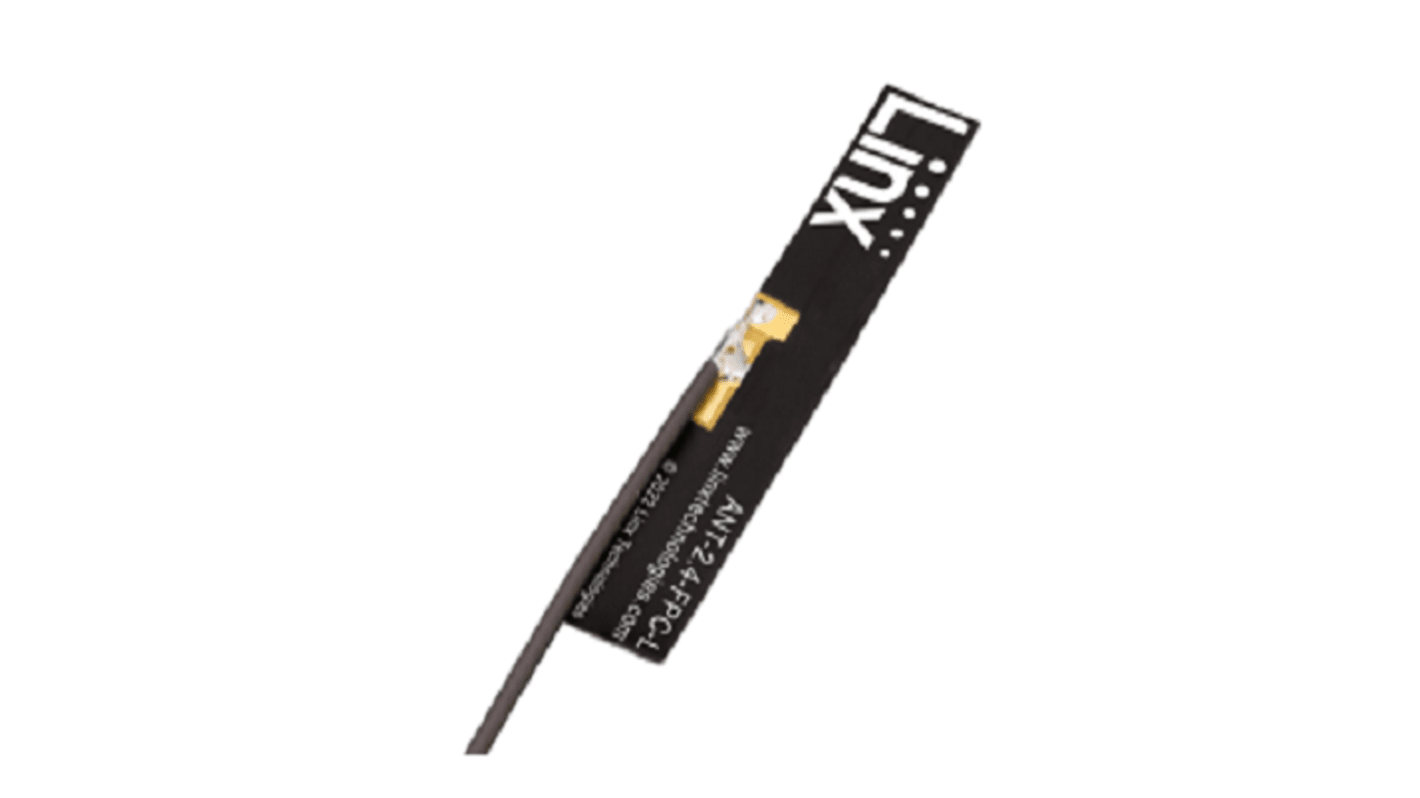

The Linx technologies Linx ANT-2.4-FPC-LV series antennas are 45 mm x 7 mm adhesive flexible printed circuit (FPC) antennas for 2.4 GHz ISM applications. These antennas provide a ground plane independent dipole internal/embedded antenna solution. The flexibility and adhesive backing makes the ANT-2.4-FPC-LV series easy to mount in RF transparent (e.g. plastic) enclosures, enabling environmental sealing and for protection from antenna damage. Connection is made to the radio via a coaxial cable terminated in an MHF1/U.FL-type plug (female socket), MHF4 plug (female socket) or MMCX plug (male pin) connector.
Performance at 2.4 GHz to 2.5 GHz
VSWR ≤ 1.4
Efficiency 81%
Ground plane independent dipole antenna
Compact, low-profile
45.2 mm x 7.2 mm x 0.1 mm
Adhesive backing permanently adheres to non metal enclosures using 3M 467MP™/200MP adhesive
Flexible to fit in challenging enclosures
VSWR ≤ 1.4
Efficiency 81%
Ground plane independent dipole antenna
Compact, low-profile
45.2 mm x 7.2 mm x 0.1 mm
Adhesive backing permanently adheres to non metal enclosures using 3M 467MP™/200MP adhesive
Flexible to fit in challenging enclosures
Specifications
Attribute | Value |
---|---|
RF Protocols | ISM Band |
Internal/External | Internal |
Frequency Range | 2.4 GHz |
Antenna Physical Form | PCB |
Mounting Type | Adhesive |
Antenna Mounting Type | Adhesive |
Connector Type | U.FL |
Gain | 4.3dBi |
Cable Length | 100mm |
Connector Gender | Female |
Antenna Directivity | Omnidirectional |
Antenna Internal Construction | Dipole |
Dimensions | 45 x 7 x 0.1mm |
Weight | 0.7g |
Height | 45mm |
Width | 7mm |
Depth | 0.1mm |
Series | FPC |
Maximum Operating Temperature | +85°C |
Minimum Operating Temperature | -40°C |
