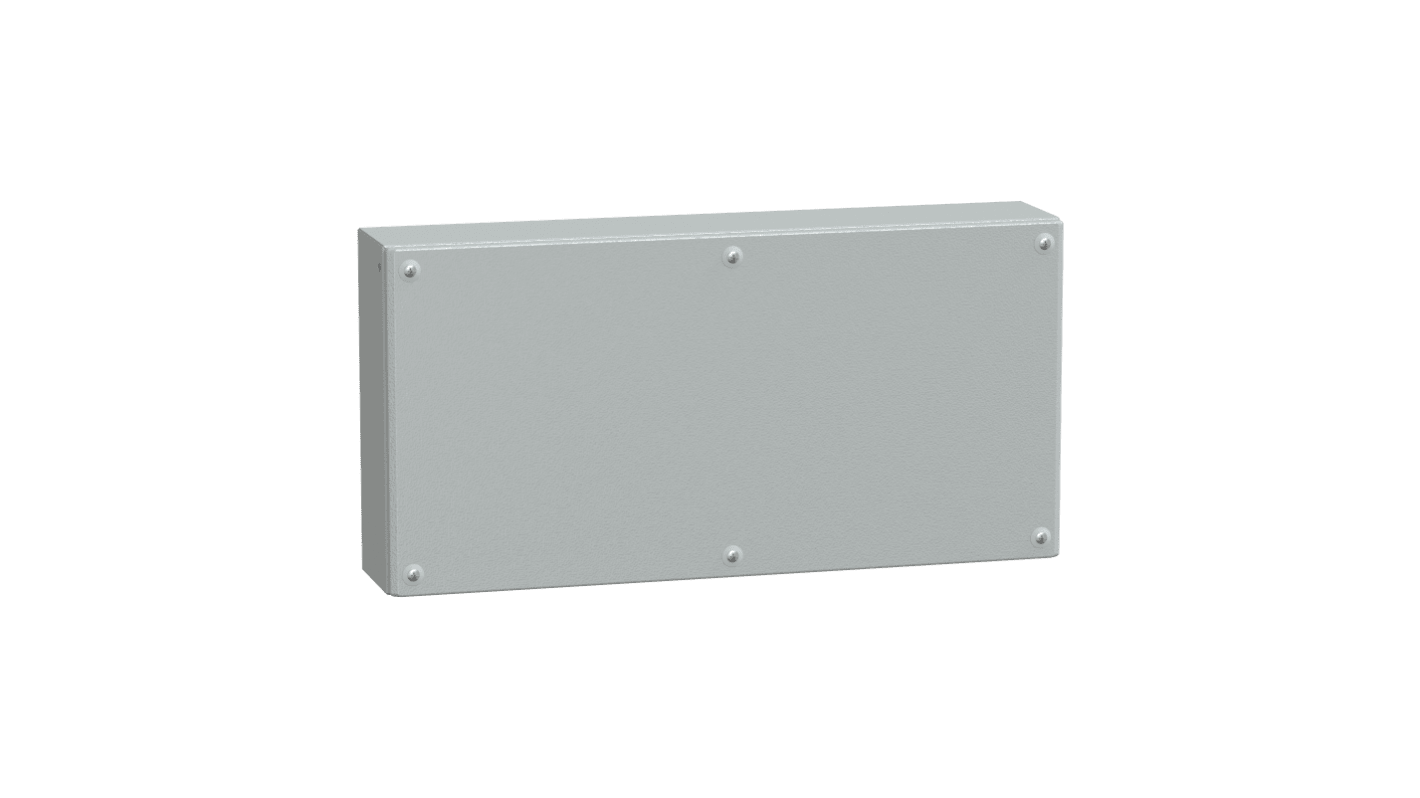

Schneider Electric Spacial SBM Series Steel Wall Box, IP66, 300 mm x 600 mm x 120mm
- RS Stock No.:
- 783-9338
- Mfr. Part No.:
- NSYSBM306012
- Brand:
- Schneider Electric
6 In stock - FREE next working day delivery available
Added
Price Each
£119.02
(exc. VAT)
£142.82
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £119.02 |
| 5 + | £111.87 |
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 783-9338
- Mfr. Part No.:
- NSYSBM306012
- Brand:
- Schneider Electric
Legislation and Compliance
Product Details
Schneider Electric Spacial SBM Industrial Wall Box Enclosures.
The Spacial SBM steel enclosures from Schneider Electric are available in three versions and are designed for use in industrial machine and building applications. The SBM wall boxes offer excellent perfomance with up to date design a quality product.
The wall mounting enclosures have a single piece rectangular body with folded gutters in the front and 2 (or 3*) drilled profiles for installing mounting plates and DIN rails in the rear, fixing centres of 12.5 mm.
The enclosure cover is equipped with a polyurethane sealing gasket and 2, 3, 4 or 6 half-turn threaded screws, depending on the version (**). An M6 x 16 earth stud is welded in the cover to provide equipotential connection with the body.
The wall mounting enclosures have a single piece rectangular body with folded gutters in the front and 2 (or 3*) drilled profiles for installing mounting plates and DIN rails in the rear, fixing centres of 12.5 mm.
The enclosure cover is equipped with a polyurethane sealing gasket and 2, 3, 4 or 6 half-turn threaded screws, depending on the version (**). An M6 x 16 earth stud is welded in the cover to provide equipotential connection with the body.
Features and Benefits.
• 28 sizes available increasing to 42 by using the extension box accessory
• 80mm and 120mm depths available, with or without pre-built FL 21 cable entries
• IP66 protection meaning the enclosures are dust tight and protect against powerful jets of water and heavy seas
• External mechanical impact resistance of up to IK10 (joules 20) meaning the wall box gives protection against a 5 kg object dropped from 40 cm in height
• Can be Installed with just a screwdriver
• Direct fixing though the rear or with external mounting lugs
• Protected inside and outside with polyester grey paint, RAL 7035
• Attractive and tough design for protection of sensitive electronics
• 80mm and 120mm depths available, with or without pre-built FL 21 cable entries
• IP66 protection meaning the enclosures are dust tight and protect against powerful jets of water and heavy seas
• External mechanical impact resistance of up to IK10 (joules 20) meaning the wall box gives protection against a 5 kg object dropped from 40 cm in height
• Can be Installed with just a screwdriver
• Direct fixing though the rear or with external mounting lugs
• Protected inside and outside with polyester grey paint, RAL 7035
• Attractive and tough design for protection of sensitive electronics
Typical Applications.
The Spacial SDB range from Schneider are suitable for use in underground parking, road and railway tunnels.
Note
(*) 3 profiles for width 800 mm, (**) 2 for Bus box (3 screws for width greater than 400 mm), 4 for Flat and Entry boxes (6 screws for width greater than 400 mm).
NSYSBM306012 Spacial SBM Multi-Purpose Industrial Wall Box Enclosure.
- SBM Series – Industrial Enclosure.
- Flat face box.
- Wall mounted.
- Single piece body folded and welded.
- Plain door / lid.
- Fixes with half turn metal screw.
- Outside sealed area: PZ2 screwdriver captive screw lock.
- Cover is removable with captive screws.
- Made from sheet steel with a Polyester powder coating finish, Grey (RAL 7035).
- IP 66 IEC 60529.
- IK 10 conforming to IEC 62262.
What is supplied?
- 1 x Enclosure door / cover, 6 x cover screws, 1 x Enclosure body.
Approvals
BV, DNV, GL, LR, UL.
Standards
IEC 62208.
Specifications
Attribute | Value |
|---|---|
| External Height | 300 mm |
| External Width | 600 mm |
| External Depth | 120mm |
| Body Material | Steel |
| Transparent Door | No |
| IP Rating | IP66 |
| Chassis Plate | No |
| Door Lock Type | Screw |
| Gland Plate | No |
| Colour | Grey |
| RAL Code | RAL 7035 |
| Series | Spacial SBM |
| Better World Product | Yes |
| Better World Verification | Green Premium |
| External Mounting Type | Bracket |
| For Protection Of | Multipurpose |
| Special Features | Removable Cover |
| IK Rating | IK10 |
| Fixing Kit | No |
| Internal Mounting Type | Panel |
