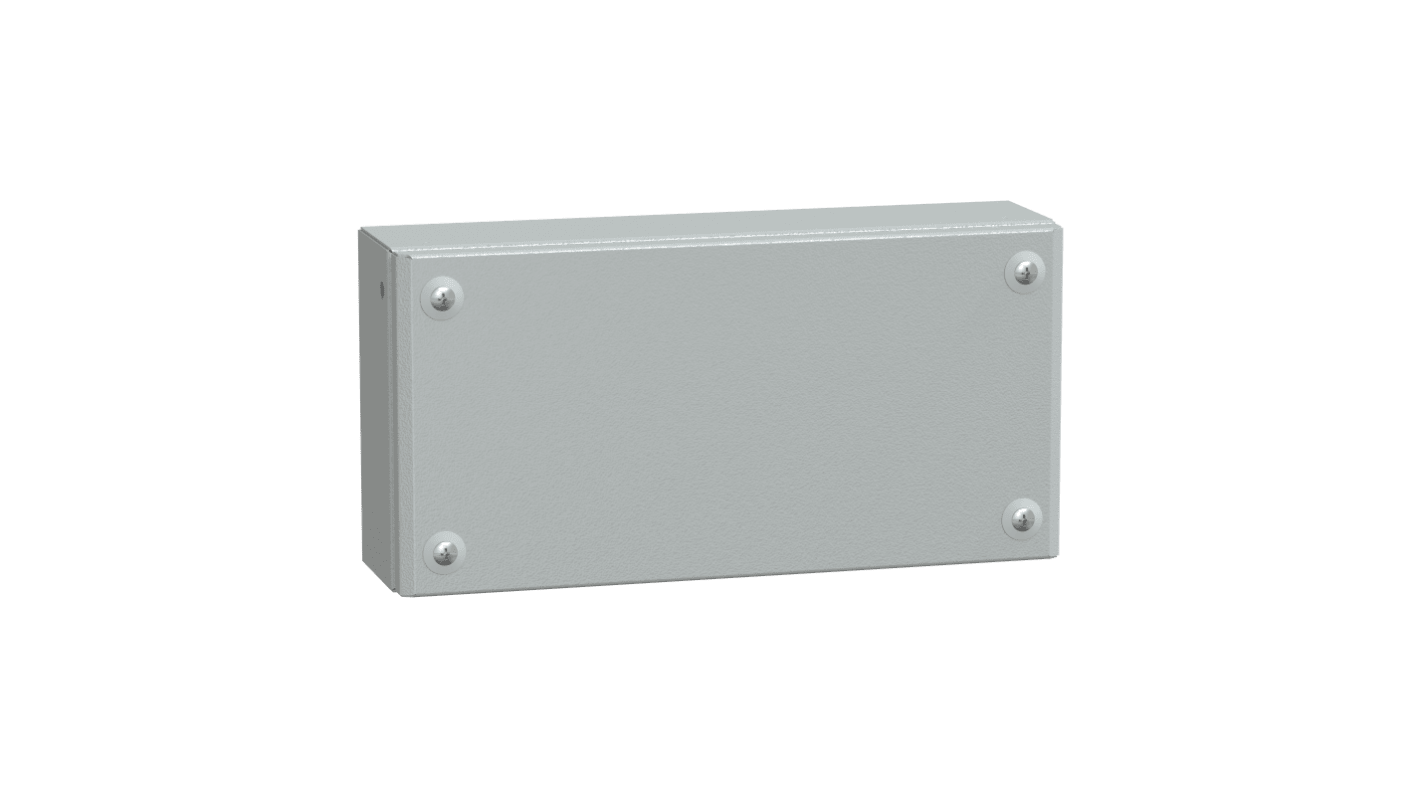

Schneider Electric PanelSeT SBM Series Steel Wall Box, IP66, 150 mm x 300 mm x 80 mm
- RS Stock No.:
- 783-9268
- Mfr. Part No.:
- NSYSBM15308
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£55.84
(exc. VAT)
£67.01
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 9 unit(s) ready to ship
- Plus 9 unit(s) shipping from 16 June 2026
- Plus 9 unit(s) shipping from 30 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £55.84 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 783-9268
- Mfr. Part No.:
- NSYSBM15308
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| External Height | 150mm | |
| Product Type | Wall Box | |
| External Depth | 80mm | |
| Body Material | Steel | |
| Transparent Door | No | |
| IP Rating | IP66 | |
| Chassis Plate | No | |
| Door Lock Type | Screw | |
| Gland Plate | No | |
| Internal Mount Type | Panel | |
| External Width | 300mm | |
| Mounting plate | No | |
| Colour | Grey | |
| Series | PanelSeT SBM | |
| Standards/Approvals | RoHS, DNV, UL, REACH, BV, IEC 62208, LR | |
| Better World Product | Yes | |
| Better World Claim | Designed for Disassembly | |
| IK Rating | IK10 | |
| Fixing Kit | No | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
External Height 150mm | ||
Product Type Wall Box | ||
External Depth 80mm | ||
Body Material Steel | ||
Transparent Door No | ||
IP Rating IP66 | ||
Chassis Plate No | ||
Door Lock Type Screw | ||
Gland Plate No | ||
Internal Mount Type Panel | ||
External Width 300mm | ||
Mounting plate No | ||
Colour Grey | ||
Series PanelSeT SBM | ||
Standards/Approvals RoHS, DNV, UL, REACH, BV, IEC 62208, LR | ||
Better World Product Yes | ||
Better World Claim Designed for Disassembly | ||
IK Rating IK10 | ||
Fixing Kit No | ||
Schneider Electric NSYSBM15308 wall mounting enclosures
What are the external dimensions?
NSYSBM15308 has external dimensions of 150 x 300 x 80 mm.
What is supplied?
The NSYSBM15308 enclosure is supplied with a steel body, 1 cover with a half turn metal screw and 4 cover screws.
Can the wall box be used outside?
Yes the NSYSBM15308 has an Ingress Protection rating of IP66 so can be used inside or outside.
What type of lock does it have?
The enclosure has an outside sealed area: PZ2 screwdriver captive screw
Schneider Electric Spacial SBM Industrial Wall Box Enclosures.
The Spacial SBM steel enclosures from Schneider Electric are available in three versions and are designed for use in industrial machine and building applications. The SBM wall boxes offer excellent perfomance with up to date design a quality product.
The wall mounting enclosures have a single piece rectangular body with folded gutters in the front and 2 (or 3*) drilled profiles for installing mounting plates and DIN rails in the rear, fixing centres of 12.5 mm.
The enclosure cover is equipped with a polyurethane sealing gasket and 2, 3, 4 or 6 half-turn threaded screws, depending on the version (**). An M6 x 16 earth stud is welded in the cover to provide equipotential connection with the body.
Features and Benefits.
• 28 sizes available increasing to 42 by using the extension box accessory
• 80mm and 120mm depths available, with or without pre-built FL 21 cable entries
• IP66 protection meaning the enclosures are dust tight and protect against powerful jets of water and heavy seas
• External mechanical impact resistance of up to IK10 (joules 20) meaning the wall box gives protection against a 5 kg object dropped from 40 cm in height
• Can be Installed with just a screwdriver
• Direct fixing though the rear or with external mounting lugs
• Protected inside and outside with polyester grey paint, RAL 7035
• Attractive and tough design for protection of sensitive electronics
Typical Applications.
The Spacial SDB range from Schneider are suitable for use in underground parking, road and railway tunnels.
Note
(*) 3 profiles for width 800 mm, (**) 2 for Bus box (3 screws for width greater than 400 mm), 4 for Flat and Entry boxes (6 screws for width greater than 400 mm).
Standards
IEC 62208 which is the reference standard regarding empty enclosures for device assemblies for protection and manoeuvre to low voltage.
