Schneider Electric PanelSet S3D Series Steel Wall Box, IP66, 1000 mm x 600 mm x 400 mm
- RS Stock No.:
- 701-8452
- Mfr. Part No.:
- NSYS3D10640P
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£368.71
(exc. VAT)
£442.45
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
- Plus 2 unit(s) shipping from 11 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £368.71 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 701-8452
- Mfr. Part No.:
- NSYS3D10640P
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| External Height | 1000mm | |
| Product Type | Wall Box | |
| External Depth | 400mm | |
| Body Material | Steel | |
| Transparent Door | No | |
| IP Rating | IP66 | |
| Chassis Plate | No | |
| Door Lock Type | Double Bar | |
| Gland Plate | Yes | |
| Internal Mount Type | Panel | |
| Colour | Grey | |
| Mounting plate | No | |
| External Width | 600mm | |
| Series | PanelSet S3D | |
| Standards/Approvals | LR, REACH, UL, BV, IEC 62208, DNV, RoHS, cUL | |
| Better World Product | Yes | |
| Fixing Kit | Yes | |
| IK Rating | IK10 | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
External Height 1000mm | ||
Product Type Wall Box | ||
External Depth 400mm | ||
Body Material Steel | ||
Transparent Door No | ||
IP Rating IP66 | ||
Chassis Plate No | ||
Door Lock Type Double Bar | ||
Gland Plate Yes | ||
Internal Mount Type Panel | ||
Colour Grey | ||
Mounting plate No | ||
External Width 600mm | ||
Series PanelSet S3D | ||
Standards/Approvals LR, REACH, UL, BV, IEC 62208, DNV, RoHS, cUL | ||
Better World Product Yes | ||
Fixing Kit Yes | ||
IK Rating IK10 | ||
- COO (Country of Origin):
- FR
Schneider Electric NSYS3D10640P

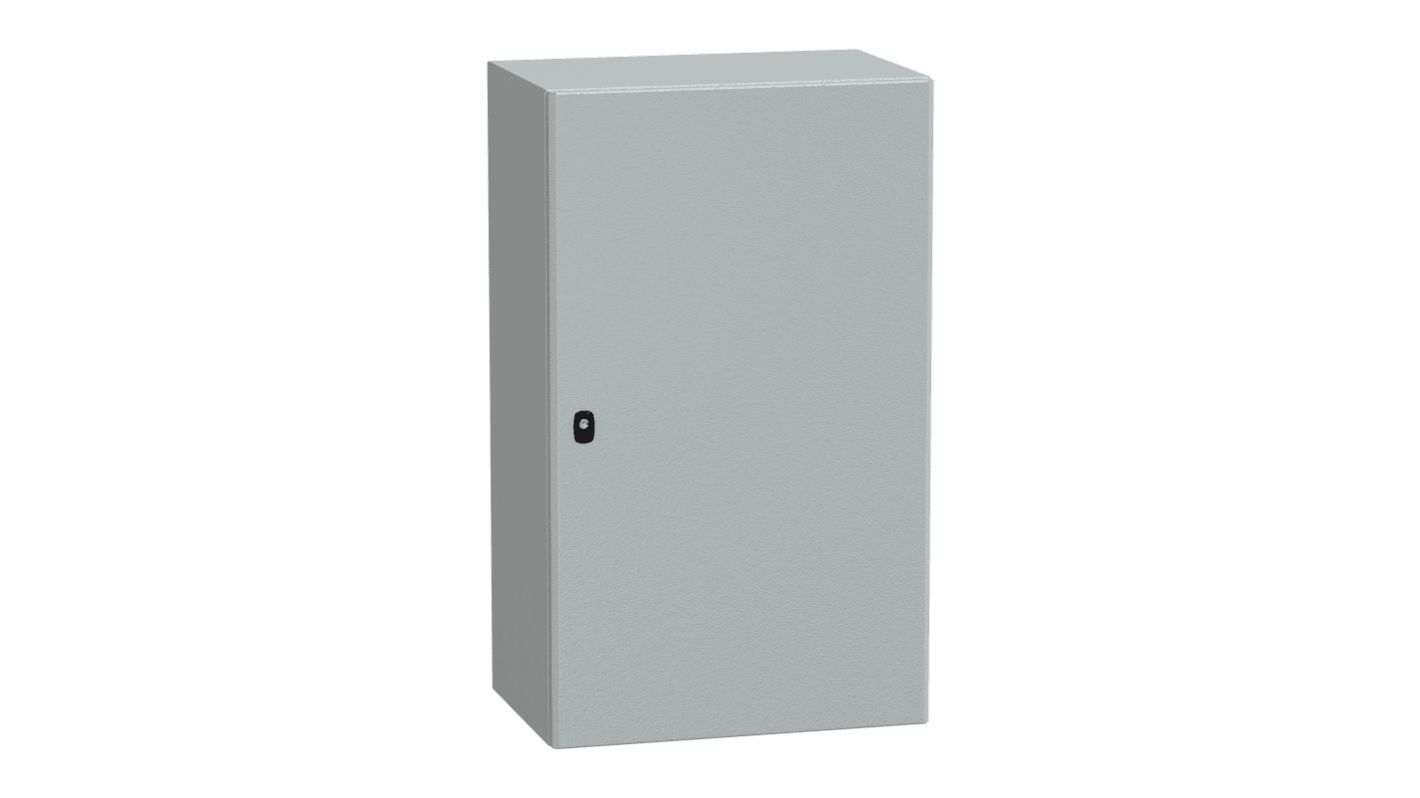

Spacial S3D wall mounted steel enclosure with plain door. 1000 x 600 x 400 mm. Single piece body, mounting plate and 1 cable gland plate included. 3-point closure system with handle and 3 mm double bar lock insert. Steel made, epoxy-polyester powder finish. Protection IP 66, IK10, Grey RAL 7035.
• Galvanised steel mounting plate to secure the enclosure firmly to the wall
• Dimensions of 1000 (H) x 600 (W) x 400mm (D) offer ample space to accommodate large components
• UV-resistant so it won't deteriorate under direct sunlight
• 3mm double-bar lock to prevent unauthorised access and tampering
Applications
• Telecommunication devices
• Data banks
• Server rooms
The Schneider Electric PanelSet S3D tspt door w/o mount plate is an compact enclosure used in Multi-purpose Application. This enclosures comes with or without mounting plates with Standard type of gland plate & with single door type.
Can I use this wall box in fire-prone areas?
As the wall box is non-combustible, it won't burn when a fire occurs. This makes it a good choice for use in hazardous areas as it will protect the components it houses from damage.
Standards
Compliance with enclosure standards IEC 62208, UL, CUL, BV, DNV and GL.
