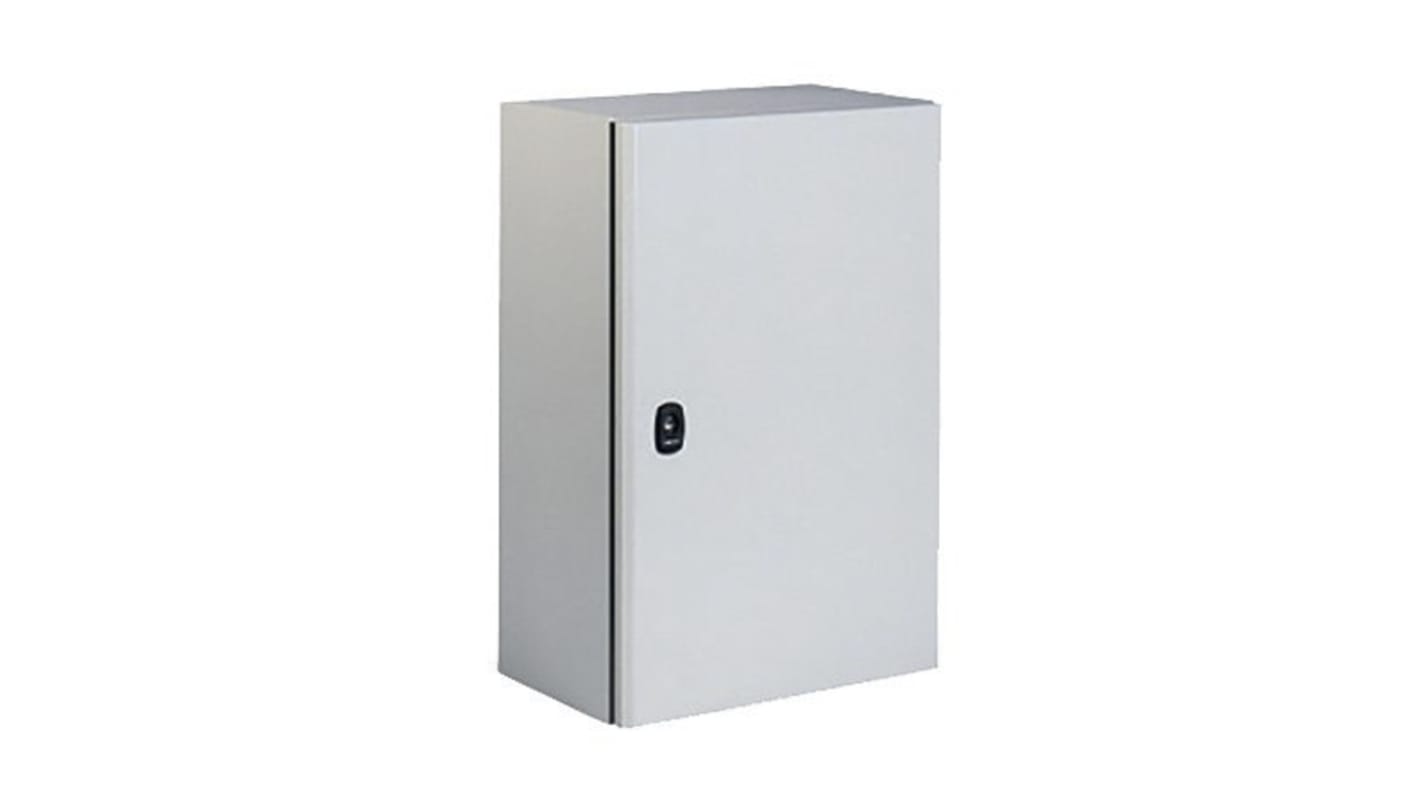

Schneider Electric PanelSeT S3DEX Series Steel Wall Box, IP66, ATEX, 600 mm x 600 mm x 250mm

RS Stock No.:: 701-8389
Mfr. Part No.:: NSYS3DEX6625
Brand:: Schneider Electric

Schneider Electric PanelSeT S3DEX Series Steel Wall Box, IP66, ATEX, 600 mm x 600 mm x 250mm

Subtotal (1 unit)*

£299.13

(exc. VAT)

£358.96

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

4 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£299.13

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:: 701-8389
Mfr. Part No.:: NSYS3DEX6625
Brand:: Schneider Electric

Spacial S3DEX ATEX Wall Box Enclosures.

From Schneider Electric this is the Spacial S3DEX steel wall mounting enclosures have a 1 piece folded and welded body with a double plate thickness gutter shaped front profile. The Wall box enclosures are certified for use in ATEX II2 or II3 classifications hazardous areas. This mean that the wall box enclosures can be wall mounted where rare explosion risks are probable.

Spacial S3DEX should be used with other ATEX certified electrical, pneumatic and hydraulic enclosure components. S3DEx wall box enclosures comply with explosion risks in environments charged with gas and dust plus designed for use in group II classified category 2.

What is ATEX?

Two European directives, ATEX 99/92/CE and ATEX 94/9/CE, applicable to locations under potentially Explosive Atmospheres.

Outside European Union, equivalent references are IEC standards 60079 and 61241.

ATEX defines a potentially explosive atmosphere as a mix of flammable substances in the form of gas, vapour or dust (cloud deposit) which, in air under normal atmospheric conditions, can catch fire in the form of an explosion when exposed to an ignition source.

Since July 1st, 2003, ATEX 94/9/CE makes compulsory certified equipment when intended for use in potentially explosive zones, gaseous or dusty atmospheres.

Features and Benefits.

IP66 protection meaning the enclosures are dust tight and protect against powerful jets of water and heavy seas

External mechanical impact resistance of IK10 (protected against a 5kg object dropped from 20cm

ATEX certification means that the enclosures are suitable for using in a potentially explosive atmosphere

Enclosures up to 600 mm high have one central lock with no locking bars

Enclosures above 600 mm high have one central lock and a double locking bar, making three locking points in total

Plain door with polyurethane seal

External earthing by crimped blind nut (earth braid not supplied).

A range of S3D Spacial wall box enclosures and sizes available.

A range of Spacial SD3 enclosures accessories are available.

The multi-purpose enclosures have a textured paint finish RAL 7035 light grey.

Spacial S3DEX Applications.

Chemical and petrochemical.

Offshore industry,

Food industry.

Flour mills.

Grain drying areas.

Petrol and gas stations.

Wool and aluminium work environments.

Note

The lock is a quarter turn, cam with key.

Supplied with

4 shouldered M8x25 backstuds and 4 crimped blind nuts

NSYS3DEX6625 Spacial S3DEX Compact Wall Box Enclosure.

Spacial S3DEX

ATEX Certified.

Compact enclosure wall box.

Without a mounting plate or gland plate.

Wall mounting.

For potential explosive atmospheres.

Includes, door lock, and door, body with a clamped blind nut.

Gutter shaped front rail double sheet thickness, Single piece body

120° Reversible door opening.

3 Points lock, 3 mm Double -bar lock.

Grey (RAL 7035) colour with Epoxy -polyester powder finish.

Marking II 2 GD Ex e IIC Gb Ex tb IIIC Db according to the ATEX directive 94/9/EC.

Protection IP66 enclosures with single door conforming to IEC 60529, IK10 conforming to IEC 62262.

Standards

EN 60079 -0: 2012, EN 60079 -7: 2007, EN 60079 -31: 2009.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Schneider Electric
	External Height	600 mm
	External Width	600 mm
	External Depth	250mm
	Body Material	Steel
	Transparent Door	No
	IP Rating	IP66
	Chassis Plate	No
	Door Lock Type	Double Bar
	Gland Plate	No
	Colour	Grey
	Series	PanelSeT S3DEX
	RAL Code	RAL 7035
	Hazardous Area Certification	ATEX
	External Mounting Type	Bracket
	Better World Verification	Green Premium
	Better World Product	Yes
	Special Features	120° Door Opening
	IK Rating	IK10
	Fixing Kit	Yes
	Internal Mounting Type	Panel

	Select all
	Brand Schneider Electric
	External Height 600 mm
	External Width 600 mm
	External Depth 250mm
	Body Material Steel
	Transparent Door No
	IP Rating IP66
	Chassis Plate No
	Door Lock Type Double Bar
	Gland Plate No
	Colour Grey
	Series PanelSeT S3DEX
	RAL Code RAL 7035
	Hazardous Area Certification ATEX
	External Mounting Type Bracket
	Better World Verification Green Premium
	Better World Product Yes
	Special Features 120° Door Opening
	IK Rating IK10
	Fixing Kit Yes
	Internal Mounting Type Panel
