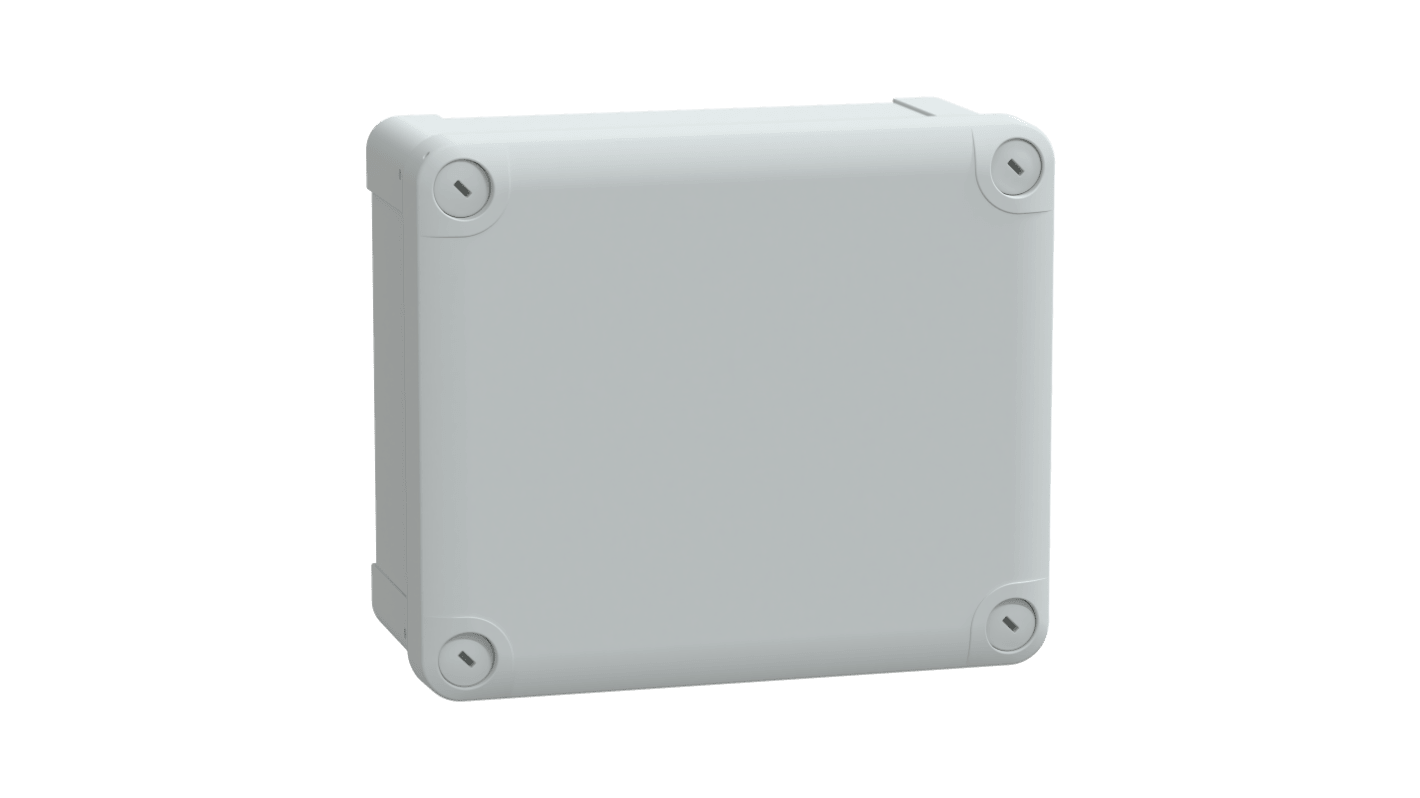

Schneider Electric PanelSeT Series Polycarbonate Wall Box, IP66, 192 mm x 164 mm x 87mm

View all Wall Boxes

Subtotal (1 unit)*

£29.93

(exc. VAT)

£35.92

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 23 unit(s) ready to ship
  • Plus 8 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£29.93

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:
689-9815
Mfr. Part No.:
NSYTBP19168
Brand:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

External Height

192 mm

External Width

164 mm

External Depth

87mm

Body Material

Polycarbonate

Transparent Door

No

IP Rating

IP66

Chassis Plate

No

Door Lock Type

Screw

Gland Plate

No

Colour

Grey

Series

PanelSeT

RAL Code

RAL 7035

Better World Verification

Green Premium

Application

General Purpose

Better World Product

Yes

External Mounting Type

Wall

Standards Met

UL

Special Features

Flame Resistant

IK Rating

IK08

Fixing Kit

No

Internal Mounting Type

Mounting Bosses

Thalassa PC plastic industrial casing, IP66


The Thalassa TBP series from Schneider Electric is a range of multi-purpose polycarbonate wall mounting enclosures with an electrical insulation class II. The enclosures have a rounded design which helps increase the boxes robustness.

Features and Benefits


• IP66 protection meaning the enclosures are dust tight and protect against powerful jets of water and heavy seas
• External mechanical impact resistance of IK08 (joules 5) meaning the wall box is protected against a 1.7kg object dropped from 29.5 cm in height
• Usage temperature of -25° C to +80° C
• Halogen free
• Self-extinguishing provides you with the added safety regarding fire protection
• Various plugs in body shell for attaching accessories
• Multiple wall-mounting methods: directly by the holes on the base of the case, by channels outside the sealed area, by fixing wrap-over clamps

Typical Applications


The range of Thalassa TBP enclosures are suitable for the protection of small size components that require little intervention or maintenance.

Standards

EN 50102, IEC 60695-2-11, IEC 536, IEC 60529, IEC 62208

Schneider Electric Wall Box, 1-Piece Moulded Body Type, Plastic Screws - Thalassa TBP Series - NSYTBP19168


Safeguard your sensitive electronic devices with this wall box from Schneider Electric. It's made from robust polycarbonate that resists impact to keep components safe in tough conditions. Pre-made knockouts make installing equipment a breeze, as wires easily pass through the holes at the rear of the unit. The enclosure is manufactured for thermal resistance up to +960°C, so its contents stay safe in the event of fire. Compact dimensions of 192 (H) x 164 (W) x 87mm (D) make this a space-efficient choice.

Features & Benefits


• Light 0.45kg weight means strain is minimal
• Polycarbonate material is insulating, to prevent electric shocks
• Handles constant temperatures between -25°C and +80°C for use in harsh industrial environments
• IP66 rating means it's completely dust-tight and protected against high-pressure water jets from all directions

Applications


• Engineering workshops
• Manufacturing plants
• Storage facilities

Is this assembly environmentally friendly?


Yes. This wall box is free from SVHC, mercury and toxic heavy metals so it's a green option for your workspace.

What's included with this product?


It comes with a base unit, cover and four cover screws so you can get set up immediately.

Approvals

DEMKO, SEMKO, TÜV, UL.

Standards

UL 508 A, IEC 62208 which is the reference standard regarding empty enclosures for device assemblies for protection and manoeuvre to low voltage
