Fibox CAB PCQ Series Polycarbonate Wall Box, IP66, IP67, 172 mm x 198 mm x 298 mm
- RS Stock No.:
- 509-3322
- Mfr. Part No.:
- CAB PCQ 302017 T CABINET
- Brand:
- Fibox
Subtotal (1 unit)*
£93.40
(exc. VAT)
£112.08
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 9 unit(s) ready to ship
- Plus 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £93.40 |
*price indicative
- RS Stock No.:
- 509-3322
- Mfr. Part No.:
- CAB PCQ 302017 T CABINET
- Brand:
- Fibox
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Fibox | |
| External Height | 172mm | |
| Product Type | Wall Box | |
| External Depth | 298mm | |
| Body Material | Polycarbonate | |
| Transparent Door | No | |
| IP Rating | IP66, IP67 | |
| Chassis Plate | No | |
| Door Lock Type | Quick Release Lock | |
| Gland Plate | No | |
| Colour | Grey | |
| Internal Mount Type | Panel | |
| Mounting plate | Yes | |
| External Width | 198mm | |
| Series | CAB PCQ | |
| Standards/Approvals | EN, IEC, UL | |
| Fixing Kit | No | |
| IK Rating | IK08 | |
| Select all | ||
|---|---|---|
Brand Fibox | ||
External Height 172mm | ||
Product Type Wall Box | ||
External Depth 298mm | ||
Body Material Polycarbonate | ||
Transparent Door No | ||
IP Rating IP66, IP67 | ||
Chassis Plate No | ||
Door Lock Type Quick Release Lock | ||
Gland Plate No | ||
Colour Grey | ||
Internal Mount Type Panel | ||
Mounting plate Yes | ||
External Width 198mm | ||
Series CAB PCQ | ||
Standards/Approvals EN, IEC, UL | ||
Fixing Kit No | ||
IK Rating IK08 | ||
- COO (Country of Origin):
- FI
Fibox Quick Series Wall Mount Enclosures

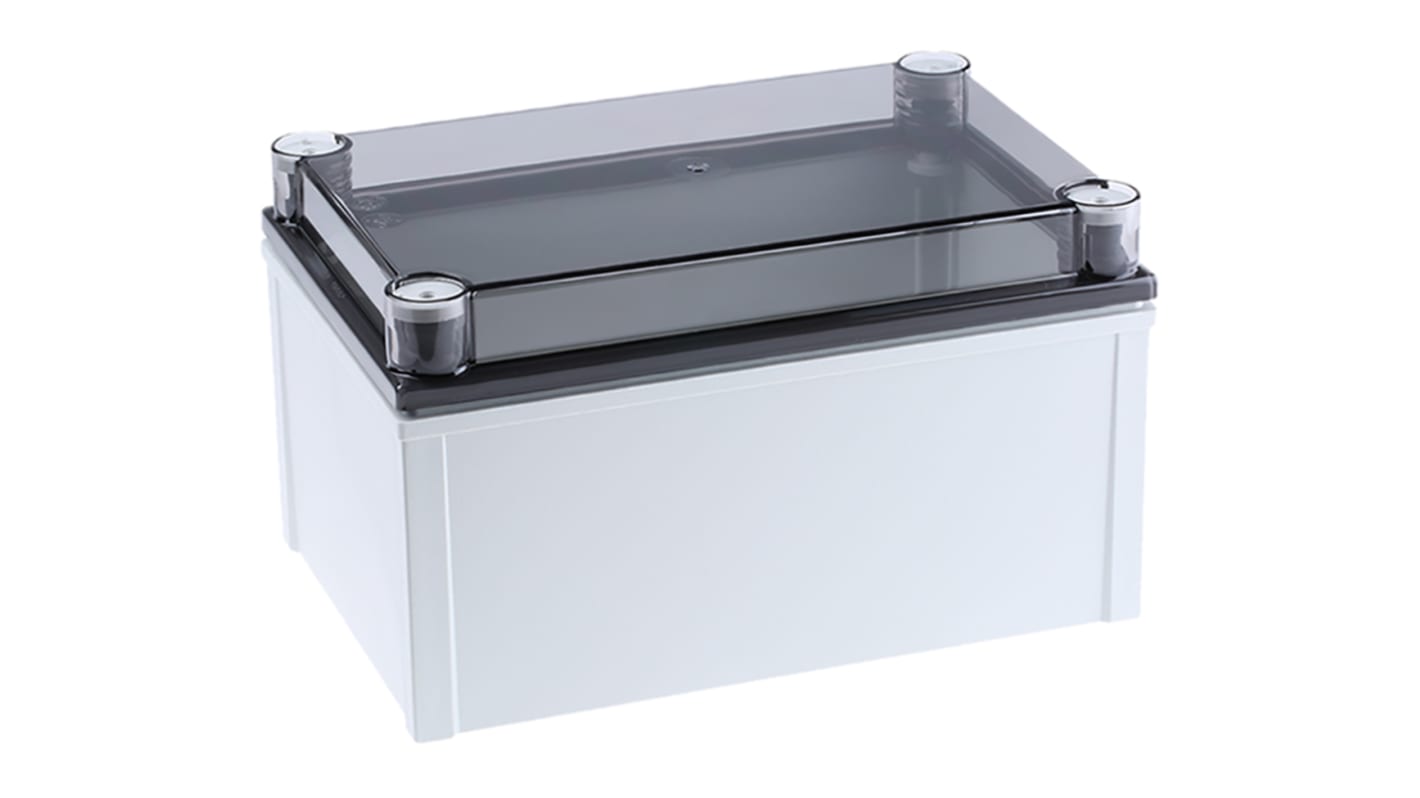

The QUICK series from Fibox are wall mounted cabinets made from high impact resistant polycarbonate, which are ideally suited to harsh industrial and outdoor environments. These enclosures are equipped with quick screw covers for easy access. Transparent cover options allow easy viewing of installed equipment and indicators.
Features and Benefits
• Equipped with "Quick" turn screw covers
• Wall mountable (brackets listed separately)
• High impact resistant polycarbonate
• Grey or smoked transparent lids
• UL 94-5V flammability rating
• IP66/IP67 rating
• IK08 impact resistance rating
Standards
UL 508; NEMA type 1, 4, 4X, 12 & 13.
