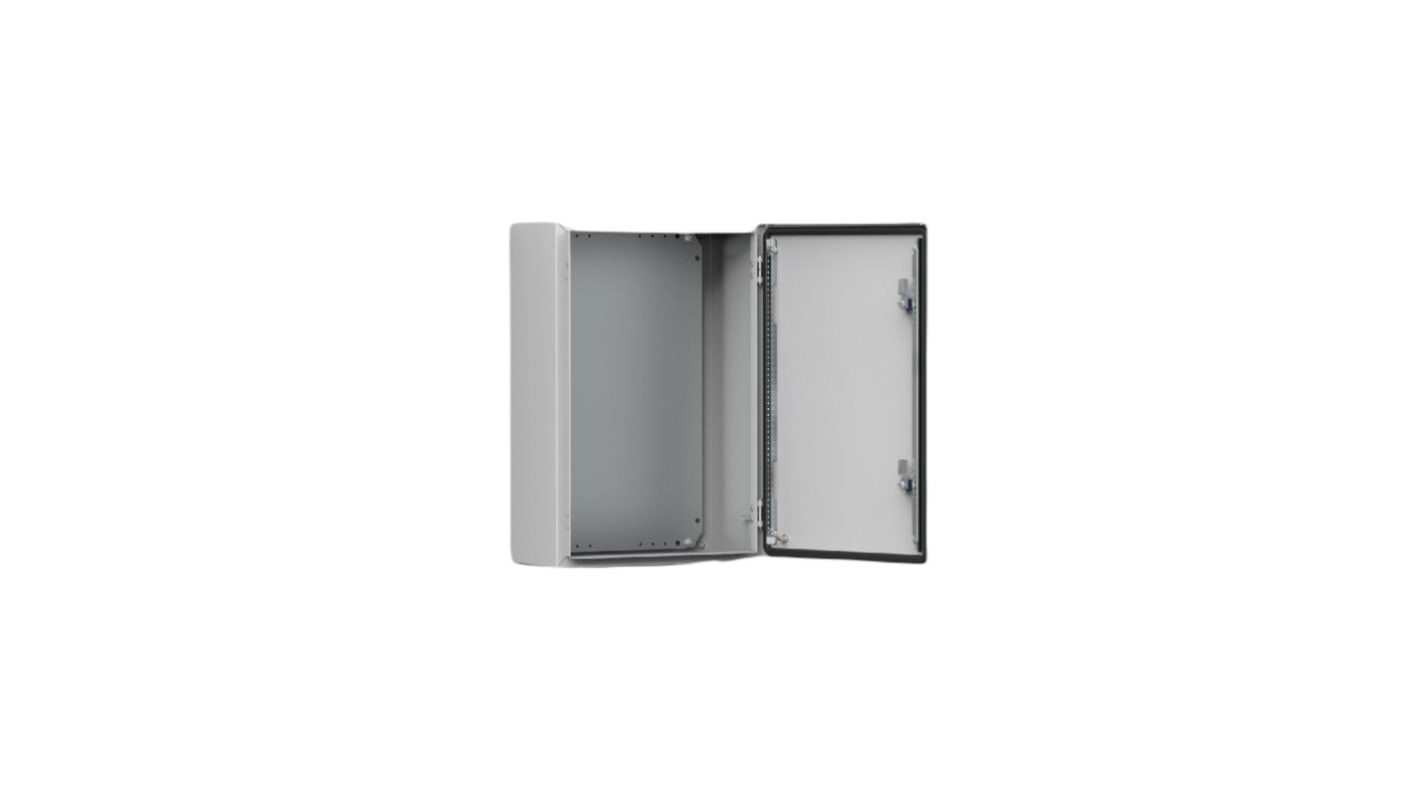

nVent HOFFMAN MAS Series Steel Wall Box, IP66, 500 mm x 500 mm x 300 mm
- RS Stock No.:
- 283-2258
- Distrelec Article No.:
- 302-83-175
- Mfr. Part No.:
- MAS0505030R5
- Brand:
- nVent HOFFMAN
Subtotal (1 unit)*
£201.36
(exc. VAT)
£241.63
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 5 unit(s) ready to ship
- Plus 8 unit(s) shipping from 15 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £201.36 |
*price indicative
- RS Stock No.:
- 283-2258
- Distrelec Article No.:
- 302-83-175
- Mfr. Part No.:
- MAS0505030R5
- Brand:
- nVent HOFFMAN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | nVent HOFFMAN | |
| Product Type | Wall Box | |
| External Height | 500mm | |
| External Depth | 300mm | |
| Body Material | Steel | |
| Transparent Door | No | |
| IP Rating | IP66 | |
| Gland Plate | Yes | |
| Mounting plate | Yes | |
| Internal Mount Type | Screw | |
| External Width | 500mm | |
| Colour | Light Grey | |
| Series | MAS | |
| Standards/Approvals | TYPE 4, DNV, UL 508A Listed, File No. E92044 cUL Listed per CSA C22.2 No.0, CE, No.14, GOST, No.0.4, 12 CSA, No.94, TYPE 12, 12 IEC 62208 IP66 KEMA, Maritime, File No. E92044 NEMA/EEMAC Type 4, Lloyds, File No. 1442951:Type 4 | |
| Hazardous Area Certification | No | |
| IK Rating | IK10 | |
| Fixing Kit | Yes | |
| Select all | ||
|---|---|---|
Brand nVent HOFFMAN | ||
Product Type Wall Box | ||
External Height 500mm | ||
External Depth 300mm | ||
Body Material Steel | ||
Transparent Door No | ||
IP Rating IP66 | ||
Gland Plate Yes | ||
Mounting plate Yes | ||
Internal Mount Type Screw | ||
External Width 500mm | ||
Colour Light Grey | ||
Series MAS | ||
Standards/Approvals TYPE 4, DNV, UL 508A Listed, File No. E92044 cUL Listed per CSA C22.2 No.0, CE, No.14, GOST, No.0.4, 12 CSA, No.94, TYPE 12, 12 IEC 62208 IP66 KEMA, Maritime, File No. E92044 NEMA/EEMAC Type 4, Lloyds, File No. 1442951:Type 4 | ||
Hazardous Area Certification No | ||
IK Rating IK10 | ||
Fixing Kit Yes | ||
RoHS Status: Exempt
- COO (Country of Origin):
- RO
The nVent Hoffman mild steel single door wall mounted enclosure, with a IP66 protection degree, is available off the shelf in many different sizes. This enclosure is well suited for many different applications. The risk for component failure, and with that unnecessary downtime, is eliminated as water and dust are prevented from entering the enclosure.
Folded and seam welded
Customized lock with double bit for easy opening of the door
Gland plate opening situated at the far rear of the enclosure, to make cabling onto the mounting plate easier
Complies with IP66 , TYPE 4, 12, IK 10
RAL 7035 structured powder coating
