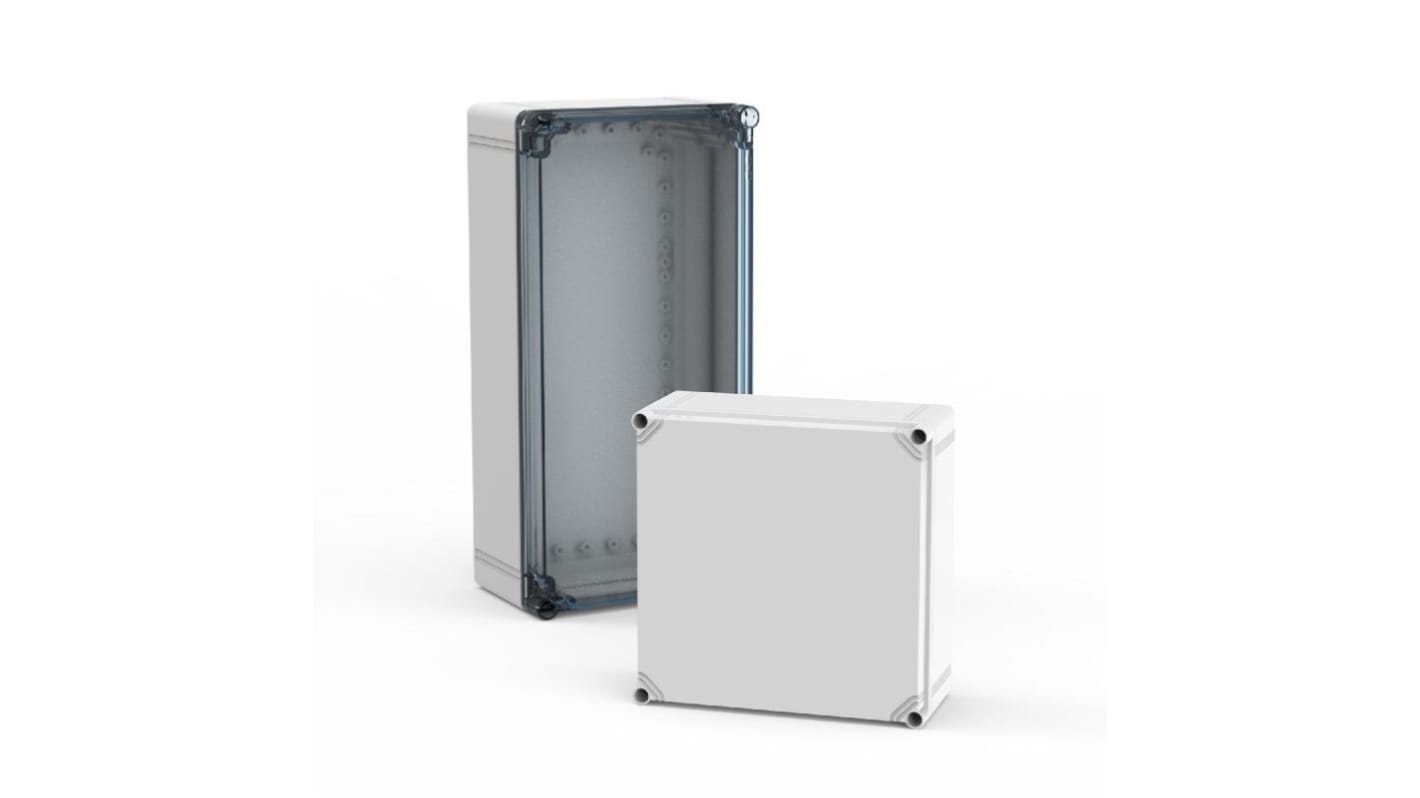

nVent HOFFMAN OABP Series Polycarbonate, ABS Terminal Box, IP66, IP67, 400 mm x 600 mm x 132 mm
- RS Stock No.:
- 269-8884
- Mfr. Part No.:
- OABP406013GE
- Brand:
- nVent HOFFMAN
Subtotal (1 unit)*
£205.92
(exc. VAT)
£247.10
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £205.92 |
*price indicative
- RS Stock No.:
- 269-8884
- Mfr. Part No.:
- OABP406013GE
- Brand:
- nVent HOFFMAN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | nVent HOFFMAN | |
| Product Type | Terminal Box | |
| External Height | 400mm | |
| External Depth | 132mm | |
| Body Material | Polycarbonate, ABS | |
| IP Rating | IP66, IP67 | |
| Mounting plate | Yes | |
| Internal Mount Type | DIN Rail | |
| Colour | RAL 7035 | |
| External Width | 600mm | |
| Series | OABP | |
| Standards/Approvals | UKCA, CE, GOST | |
| Hazardous Area Certification | No | |
| Select all | ||
|---|---|---|
Brand nVent HOFFMAN | ||
Product Type Terminal Box | ||
External Height 400mm | ||
External Depth 132mm | ||
Body Material Polycarbonate, ABS | ||
IP Rating IP66, IP67 | ||
Mounting plate Yes | ||
Internal Mount Type DIN Rail | ||
Colour RAL 7035 | ||
External Width 600mm | ||
Series OABP | ||
Standards/Approvals UKCA, CE, GOST | ||
Hazardous Area Certification No | ||
RoHS Status: Exempt
- COO (Country of Origin):
- EE
The nVent Hoffman ABS terminal box range, OABP, with a IP 66, 67 protection degree. It can be extended in depth. It is available off the shelf in many different sizes. Deeper components may be installed when an extension frame, OPCP-EE, is used. The OABP range is well suited for demanding environments, since water and dust are prevented from entering the terminal box, thus eliminating the risk for component failure, and with that unnecessary downtime.
Flammability UL94 HB
Protection IP 66, 67
