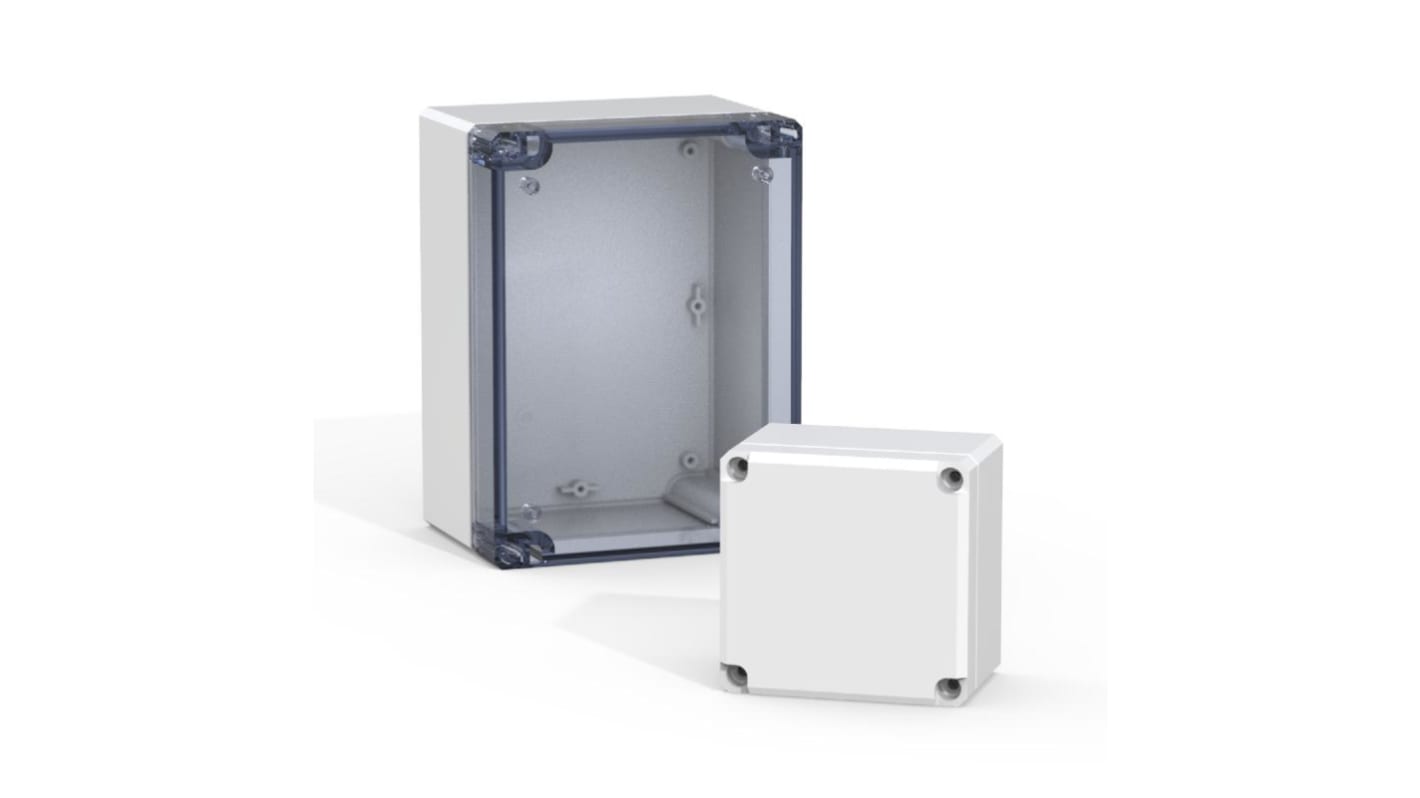

nVent HOFFMAN DABP Series Polycarbonate, ABS Terminal Box, IP67, IP66 Transparent Door, 150 mm x 200 mm x 76 mm
- RS Stock No.:
- 269-8764
- Mfr. Part No.:
- DABP152008GE
- Brand:
- nVent HOFFMAN
Subtotal (1 unit)*
£25.11
(exc. VAT)
£30.13
(inc. VAT)
Add 2 units to get free delivery
Temporarily out of stock
- 6 unit(s) shipping from 23 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £25.11 |
*price indicative
- RS Stock No.:
- 269-8764
- Mfr. Part No.:
- DABP152008GE
- Brand:
- nVent HOFFMAN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | nVent HOFFMAN | |
| External Height | 150mm | |
| Product Type | Terminal Box | |
| External Depth | 76mm | |
| Body Material | Polycarbonate, ABS | |
| Transparent Door | Yes | |
| IP Rating | IP67, IP66 | |
| Colour | Light Grey | |
| Mounting plate | Yes | |
| External Width | 200mm | |
| Series | DABP | |
| Standards/Approvals | IP, UL94 HB, CE, RoHS Status: Exempt, UKCA, GOST | |
| Hazardous Area Certification | No | |
| Fixing Kit | Yes | |
| IK Rating | IK07, IK06 | |
| Select all | ||
|---|---|---|
Brand nVent HOFFMAN | ||
External Height 150mm | ||
Product Type Terminal Box | ||
External Depth 76mm | ||
Body Material Polycarbonate, ABS | ||
Transparent Door Yes | ||
IP Rating IP67, IP66 | ||
Colour Light Grey | ||
Mounting plate Yes | ||
External Width 200mm | ||
Series DABP | ||
Standards/Approvals IP, UL94 HB, CE, RoHS Status: Exempt, UKCA, GOST | ||
Hazardous Area Certification No | ||
Fixing Kit Yes | ||
IK Rating IK07, IK06 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- EE
The nVent Hoffman ABS terminal box range, DABP with a IP 66, 67 protection degree. It is available off the shelf in many different sizes. The DABP range is well suited for demanding environments, since water and dust are prevented from entering the terminal box, thus eliminating the risk for component failure, and with that unnecessary downtime. ABS box, halogen-free, suitable for indoor use. Low UV radiation resistance.
Protection IP 66, 67
Finish RAL 7035
