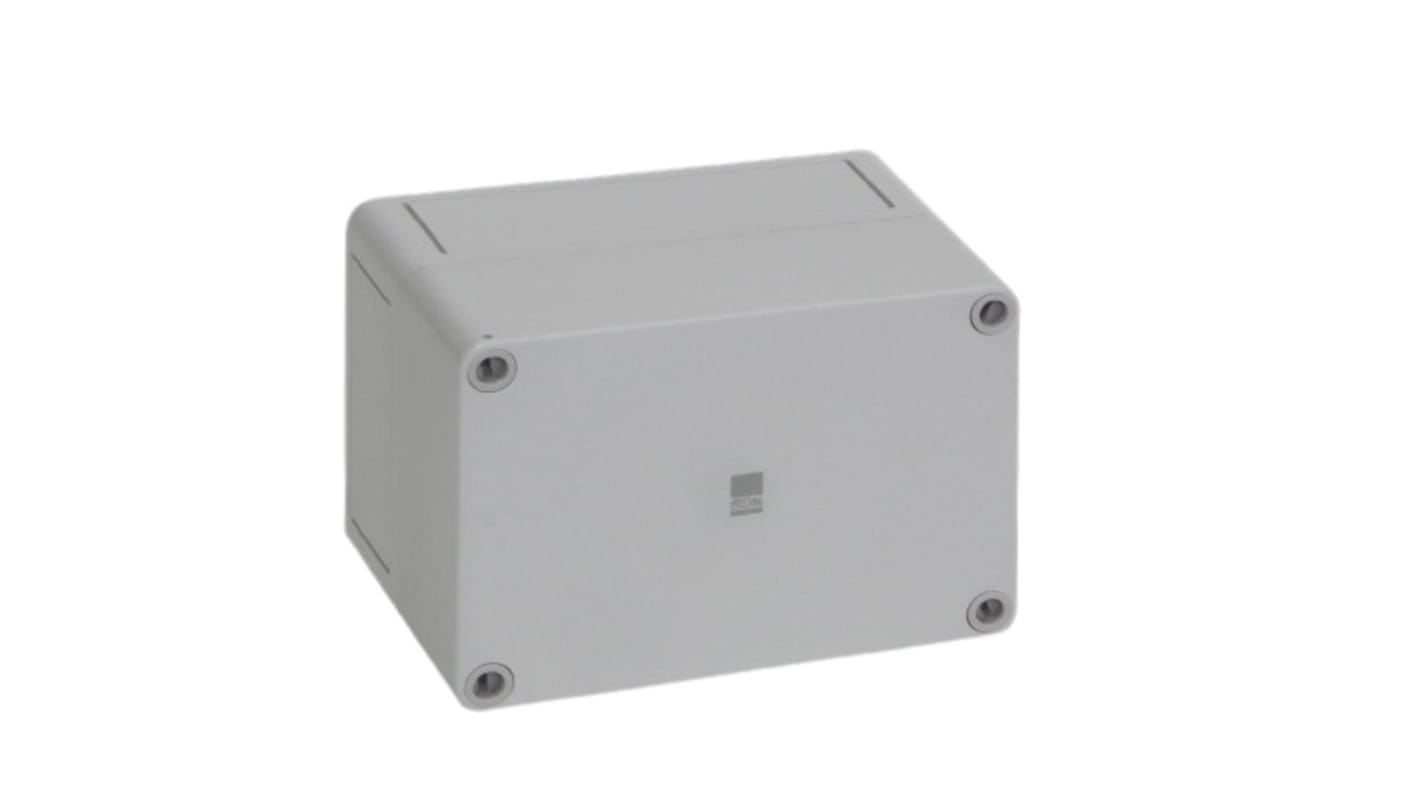

Rittal PK Series Polycarbonate Wall Box, IP66, 94 mm x 130 mm x 81mm
- RS Stock No.:
- 263-3811
- Mfr. Part No.:
- 9509000
- Brand:
- Rittal
Subtotal (1 pack of 4 units)*
£54.712
(exc. VAT)
£65.656
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship
- Plus 24 unit(s) shipping from 06 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 4 + | £13.678 | £54.71 |
*price indicative
- RS Stock No.:
- 263-3811
- Mfr. Part No.:
- 9509000
- Brand:
- Rittal
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Rittal | |
| External Height | 94 mm | |
| External Width | 130 mm | |
| External Depth | 81mm | |
| Body Material | Polycarbonate | |
| Transparent Door | No | |
| IP Rating | IP66 | |
| Gland Plate | No | |
| Colour | RAL 7035 | |
| RAL Code | RAL 7035 | |
| Series | PK | |
| IK Rating | IK08 | |
Select all | ||
|---|---|---|
Brand Rittal | ||
External Height 94 mm | ||
External Width 130 mm | ||
External Depth 81mm | ||
Body Material Polycarbonate | ||
Transparent Door No | ||
IP Rating IP66 | ||
Gland Plate No | ||
Colour RAL 7035 | ||
RAL Code RAL 7035 | ||
Series PK | ||
IK Rating IK08 | ||
- COO (Country of Origin):
- DE
The PK series terminal housings are made of fibreglass-reinforced polycarbonate and provide optimum protection for installing electronic modules, relays etc. These enclosures are rugged and protect electric and electronic components from water and dust accumulation. They are specifically suited for use with control components (actuators).Available with a light grey cover or a clear cover. The enclosure consists of two parts (upper and lower), 4 cover screws and 4 insulating covers for mounting the bottom plate.
Fibre-glass reinforced polycarbonate housing
Color - Grey (RAL7035)
All-round foamed-in PU seal
Polyamide cover screws
Polyethylene Insulating bungs
IP66 / NEMA 4x Rating Standards
Color - Grey (RAL7035)
All-round foamed-in PU seal
Polyamide cover screws
Polyethylene Insulating bungs
IP66 / NEMA 4x Rating Standards
