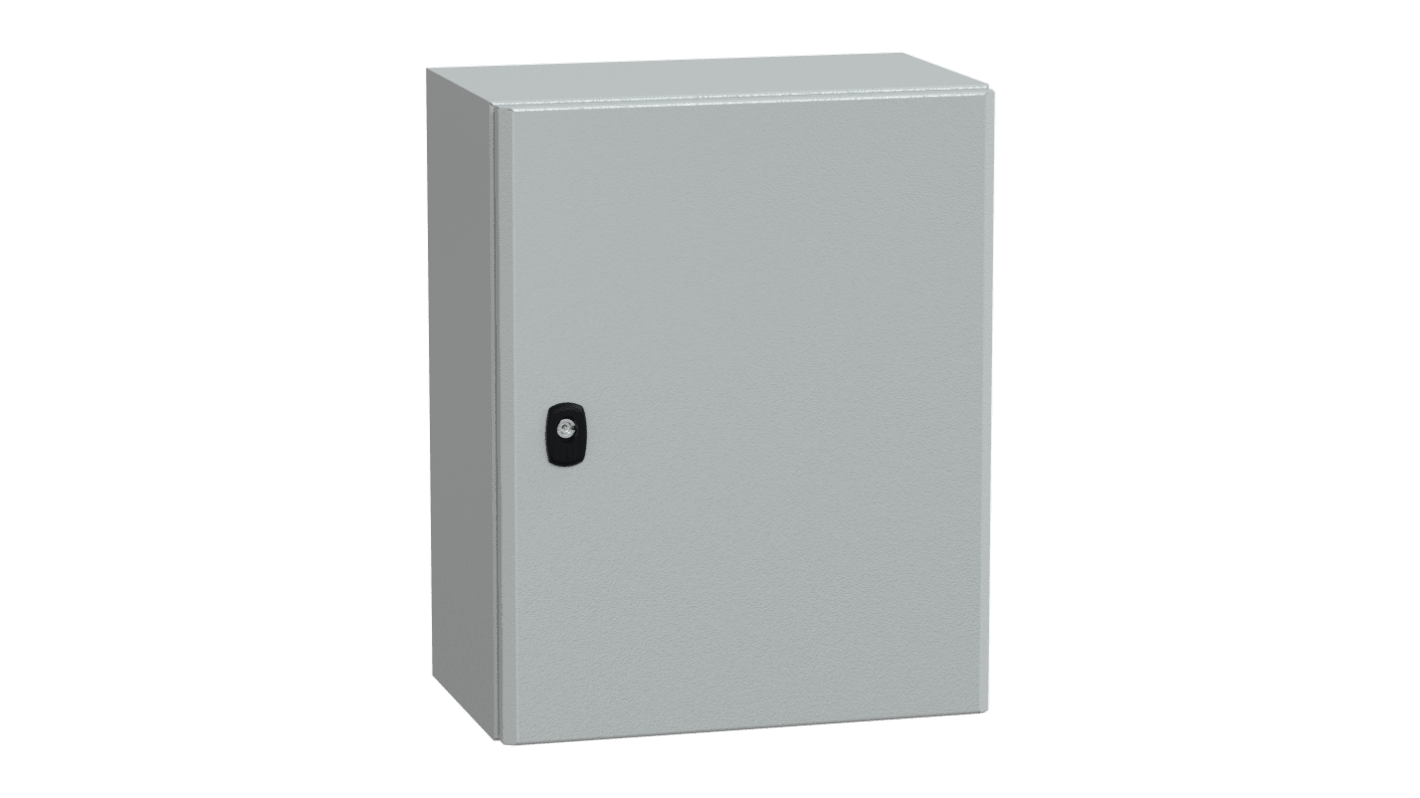

Schneider Electric PanelSet S3D Series Steel Wall Box, IP66, 500 mm x 400 mm x 250 mm
- RS Stock No.:
- 220-6416
- Mfr. Part No.:
- NSYS3D5425
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£135.59
(exc. VAT)
£162.71
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £135.59 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 220-6416
- Mfr. Part No.:
- NSYS3D5425
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Wall Box | |
| External Height | 500mm | |
| External Depth | 250mm | |
| Body Material | Steel | |
| Transparent Door | No | |
| IP Rating | IP66 | |
| Door Lock Type | Double Bar | |
| Gland Plate | Yes | |
| Mounting plate | No | |
| Colour | Grey | |
| External Width | 400mm | |
| Series | PanelSet S3D | |
| Standards/Approvals | BV, REACH, LR, IEC 62208, RoHS, DNV, UL, cUL | |
| Better World Product | Yes | |
| IK Rating | IK10 | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Wall Box | ||
External Height 500mm | ||
External Depth 250mm | ||
Body Material Steel | ||
Transparent Door No | ||
IP Rating IP66 | ||
Door Lock Type Double Bar | ||
Gland Plate Yes | ||
Mounting plate No | ||
Colour Grey | ||
External Width 400mm | ||
Series PanelSet S3D | ||
Standards/Approvals BV, REACH, LR, IEC 62208, RoHS, DNV, UL, cUL | ||
Better World Product Yes | ||
IK Rating IK10 | ||
- COO (Country of Origin):
- FR
The Schneider Electrics PanelSet S3D having dimensions of 250x300x150 mm.
Green premium product
Mercury free IP degree of protection IP66
