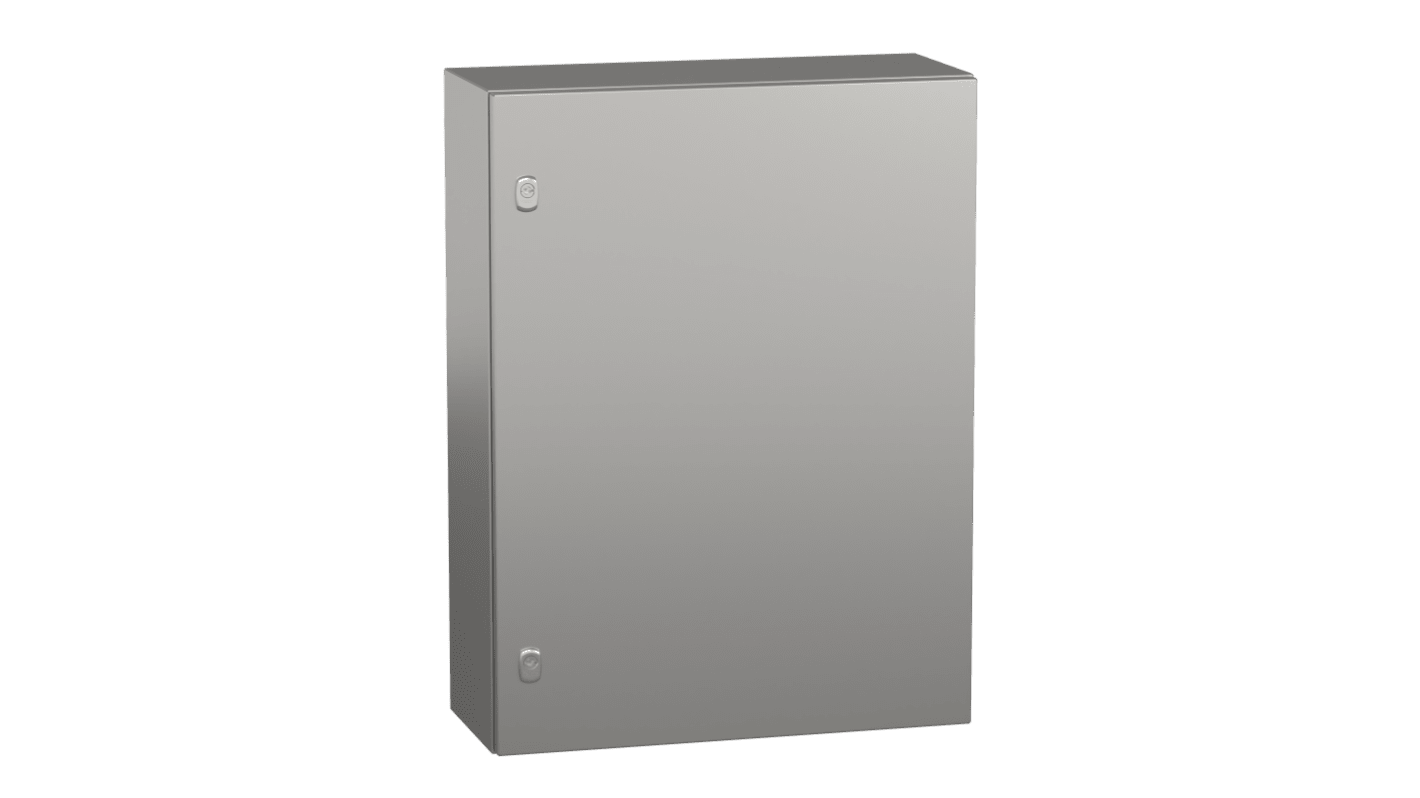

Schneider Electric PanelSeT S3X Series 304 Stainless Steel Wall Box, IP66, 800 mm x 600 mm x 250mm

View all Wall Boxes

Subtotal (1 unit)*

£644.78

(exc. VAT)

£773.74

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 7 unit(s) ready to ship
  • Plus 5 unit(s) ready to ship from another location
  • Plus 6 unit(s) shipping from 19 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£644.78

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:
186-5016
Mfr. Part No.:
NSYS3X8625
Brand:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

External Height

800 mm

External Width

600 mm

External Depth

250mm

Body Material

304 Stainless Steel

Transparent Door

No

IP Rating

IP66

Chassis Plate

No

Door Lock Type

Double Bar

Gland Plate

No

Colour

Unpainted

Series

PanelSeT S3X

External Mounting Type

Bracket

Better World Verification

Green Premium

Better World Product

Yes

Special Features

120° Door Opening

Standards Met

IEC 62208

Internal Mounting Type

Panel

IK Rating

IK10

Fixing Kit

No

Schneider Electric Spacial S3X Stainless Steel Wall Box Enclosures.


From Schneider Electric this is the Spacial S3X range of 304 stainless steel wall-mounting enclosures are made from a one-piece metal sheet, folded and welded on the corner’s excellent performance in exposed environments. The Spacial S3X wall box has a front rail gutter protecting the wall box enclosure and contents form water, oil and other liquid penetration.

Spacial S3X Wall Box Enclosure Features.


  • Stainless steel AISI 304L or AISI 316L.

  • Various sizes with a plain door AISI 304L or AISI 316L.

  • 6 Other sizes available with a transparent door AISI 304L.

  • Polished Scotch Brite finish.

  • Watertight (IP66 single door, IP 55 double door), (IK 10 plain door, IK 08 glazed door).

  • 120° opening, reversible door can be mounted on the left or the right.

  • Stainless steel concealed hinges.

  • Hinges are mounted along height dimension.

  • Easy to mount indoors or outdoors.

  • Easy to clean and hygienic.

Schneider Electric Wall Box, Scotch-Brite Finish, Stainless Steel Hinges - Spacial S3X Series - NSYS3X8625


Get your kit off the ground and under cover in this wall box from Schneider Electric. It lets you securely lock away user-restricted systems like security, lighting or fuse devices behind a two-point locking mechanism. Forced entry is made difficult by the accompanying 3mm double bar. As the enclosure carries an IP66 rating, you can trust it to seal out dust and moisture that could otherwise compromise your setup's reliability. You only need a plain mounting plate (375-8471) or modular chassis (211-0848) to mount equipment inside.

Features & Benefits


• Reversible door mounting to suit your available space
• Durable Zamak lock resists corrosion and impact damage for long-lasting performance
• Spacious dimensions of 800 (H) x 600 (W) x 250 (D) offer plenty of room for your gear

Applications


• Medical centres
• Equipment controls
• Security systems

Can I customise this cabinet?


Yes, this product is compatible with many Spacial S3X series products. For example, you can upgrade it with a door stay (126-7382) to keep it open during maintenance, or boost the security features with this chrome-plated handle lock (221-0683).

How much does this wall box weigh?


It weighs a manageable 22.47kg, allowing you to lift and hold the enclosure in place during installation.

Standards

IEC 62208
