Schneider Electric PanelSet S3D Series Steel Wall Box, IP66, 500 mm x 400 mm x 250mm

RS Stock No.:: 126-8154
Distrelec Article No.:: 304-09-087
Mfr. Part No.:: NSYS3D5425P
Brand:: Schneider Electric

Schneider Electric PanelSet S3D Series Steel Wall Box, IP66, 500 mm x 400 mm x 250mm

Price Each**

£154.27

(exc. VAT)

£185.12

(inc. VAT)

2 In stock - FREE next working day delivery available*

8 In stock - FREE next working day delivery available

2 available from Europe for delivery within 2 working day(s).

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Units	Per unit
1 +	£154.27

**price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:: 126-8154
Distrelec Article No.:: 304-09-087
Mfr. Part No.:: NSYS3D5425P
Brand:: Schneider Electric

Schneider Electric Spacial S3D Steel Wall Box Enclosures.

From schneider Electric this is the S3D series of Steel wall boxes, wall mounted enclosures. The S3D are enclosures are light and you can choose from IP 66, IP 55 IK 10 and IK 08 models. This durable and hard-wearing wall box has a high UV resistance with treated hinges including aluminium hinge pins. A 120° opening, reversible door can be easily removed and has a 20 mm return fold ensuring the door stays rigid and in place. This is a truly Universal wall box enclosure with additional safety features, easy to install and mount plus choose from various chassis, door types and sizes available. The S3D Wall Box includes a plasma welding, chamfered door edge and is Epoxy-polyester powder coated.

Spacial S3D Wall Box Enclosure Features.

Light with a folded cross structure steel sheet.

One-piece body folded and welded, double plate thickness gutter shaped front profile.

Flat rear panel.

IP 66 (single door) protection, IP 55 (double door) protection.

IK 10 impact resistance (plain doors), IK 08 impact resistance (glazed doors).

Choose from plain or glazed doors.

Sizes available from 300X200X150 to 1400X1000X300 mm.

120° reversible door opening.

2 or 3 removable concealed hinges with 3 closure points.

1 welded earth studs on the door and enclosure body.

4 welded back studs shouldered 10mm for direct mounting of chassis.

Wall mounting brackets fixed from the outside.

Wide choice of cable gland plates that can be equipped with quick cable entrance.

Wide range of chassis (silk-screened chassis, micro-perforated chassis, perforated chassis).

Protection.

IK10 meaning that the enclosures are protected against 20 joules of impact (the equivalent to the impact of a 5kg mass dropped from 400mm above the impacted surface).

IP66 gives protection against dust and powerful water jets. Can be used on ship decks.

Applications.

Industrial automation and industrial control

Dedicated enclosure with EMC enclosure S3HF (10 dimensions).

Dedicated enclosure with terminal enclosure S3DB (11 dimensions).

Wide choice of accessories chassis, cable entrance and cable management.

Electrical distribution

Dedicated enclosure with Spacial S3DM (8 dimensions enclosure with Depth 150mm).

Electronics and Industrial Networks

Dedicated enclosure Spacial VDM (equipped with 19'' frame).

Schneider Electric NSYS3D5425P

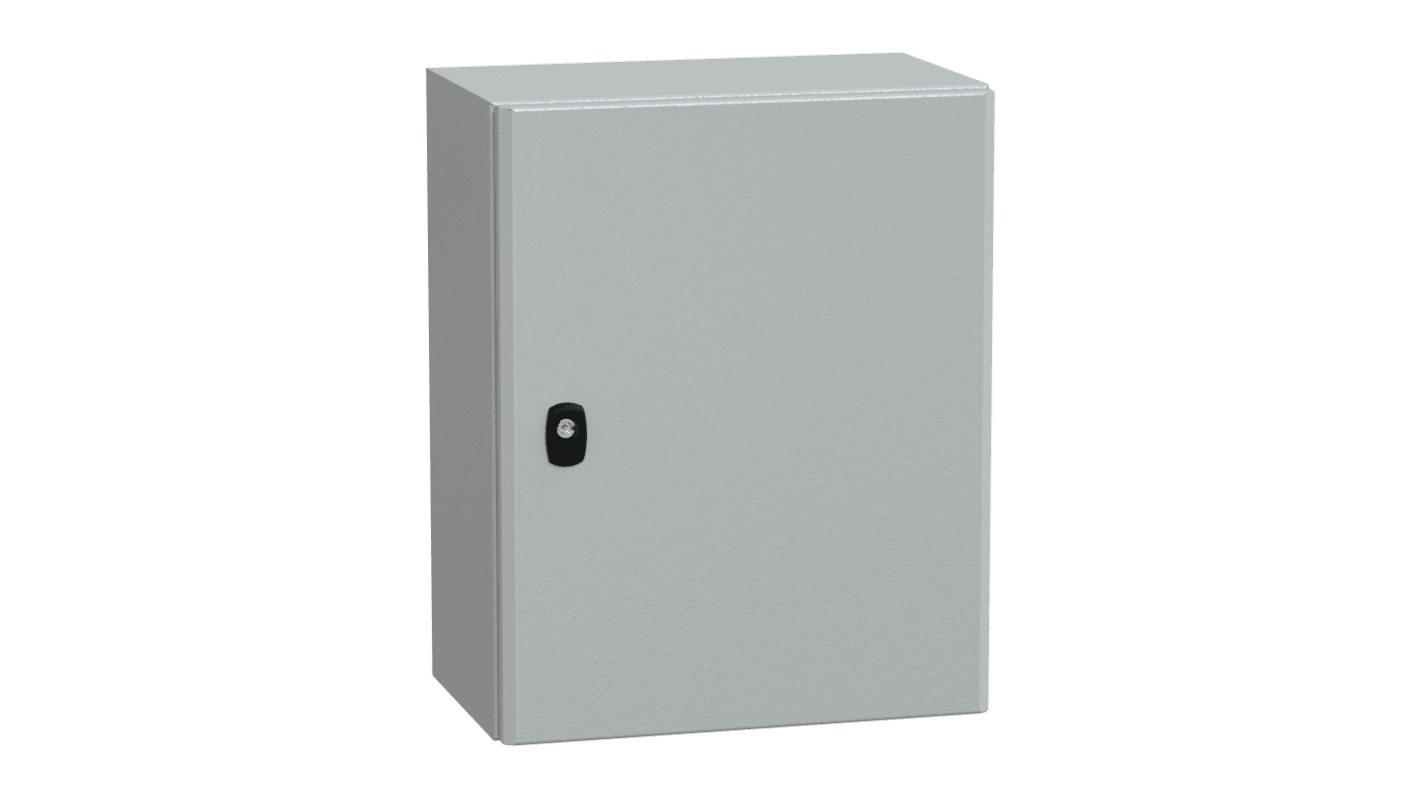

Spacial S3D wall mounted steel enclosure with plain door. 500 x 400 x 250 mm. Single piece body, mounting plate included. 3 mm double bar lock insert. Steel made, epoxy-polyester powder finish. Protection IP 66, IK10, Grey RAL 7035.

NSYS3D5425P Spacial S3D Multi-purpose Compact Wall Box Enclosure with Mounting Plate.

Compact.

Multi-purpose.

Wall mounting.

Plain door.

Plain mounting plate.

Standard gland plate.

Gutter -shaped front rail double sheet thickness Single piece body.

120° Reversible Door opening.

3 mm double -bar lock.

Hinges, Cable gland plate and mounting plate are removable.

Mounting plate is Galvanized steel, and the enclosure is steel.

Epoxy -polyester powder enclosure finish with a Gey colour RAL 7035.

IP66 conforming to IEC 60529.

IK10 conforming to IEC 62262.

What is included?

1 x Enclosure body, 1 x Mounting plate, 1 x Door and lock, 1 x Cable gland plate.

Approvals

BV, CUL, DNV, GL, LR, UL.

Standards

IEC 62208

Attribute	Value
External Height	500 mm
External Width	400 mm
External Depth	250mm
Body Material	Steel
Transparent Door	No
IP Rating	IP66
Chassis Plate	No
Door Lock Type	Double Bar
Gland Plate	Yes
Colour	Grey
RAL Code	RAL 7035
Series	PanelSet S3D
External Mounting Type	Bracket
Better World Product	Yes
Better World Verification	Green Premium
For Protection Of	Multipurpose
Special Features	120° Door Opening
Internal Mounting Type	Panel
IK Rating	IK10
Fixing Kit	No
