Lascar Digital Voltmeter DC, LCD Display 3.5-Digits 0.1 %
- RS Stock No.:
- 106-4831
- Mfr. Part No.:
- DPM 600
- Brand:
- Lascar
Image representative of range
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 106-4831
- Mfr. Part No.:
- DPM 600
- Brand:
- Lascar
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lascar | |
| Current Type | DC | |
| Number of Digits | 3.5 | |
| Display Type | LCD | |
| Cutout Height | 32mm | |
| Cutout Width | 62mm | |
| Supply Voltage | 5 → 14 V dc | |
| Digit Height | 12.7 mm | |
| Meter Accuracy | 0.1 % | |
| Analogue Effect | Digits Only | |
| Minimum Temperature | 0°C | |
| Meter Type | Voltmeter | |
| Maximum Temperature | +50°C | |
| Select all | ||
|---|---|---|
Brand Lascar | ||
Current Type DC | ||
Number of Digits 3.5 | ||
Display Type LCD | ||
Cutout Height 32mm | ||
Cutout Width 62mm | ||
Supply Voltage 5 → 14 V dc | ||
Digit Height 12.7 mm | ||
Meter Accuracy 0.1 % | ||
Analogue Effect Digits Only | ||
Minimum Temperature 0°C | ||
Meter Type Voltmeter | ||
Maximum Temperature +50°C | ||
- COO (Country of Origin):
- CN

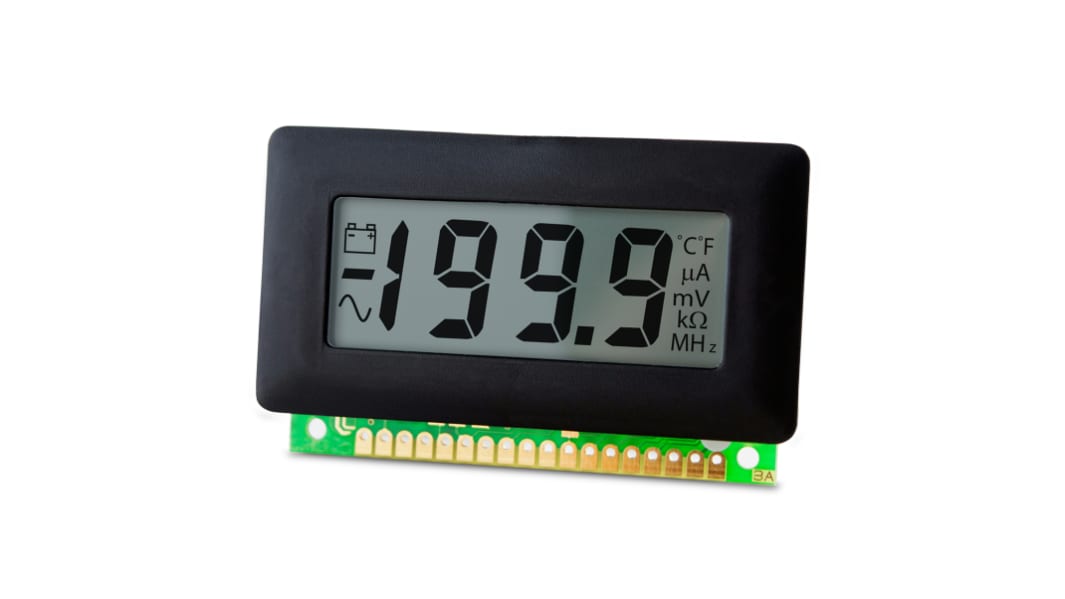

200mV LCD Voltmeter with Annunciators
The DPM 600 from Lascar is an ultra-low profile LCD meter using advanced components and construction techniques to provide an unrivalled combination of high performance, elegant appearance and low cost. The DPM 600 is pin for pin compatible with many existing DPMs. It's very low current consumption results in an extended battery life, making it especially suitable for portable equipment.
Features and Benefits
12.7mm Digit Height
Logic Selectable Decimal Points
Auto-zero
Auto-Polarity
200mV d.c. Full Scale Reading
User Adjustable Low Battery Indication
