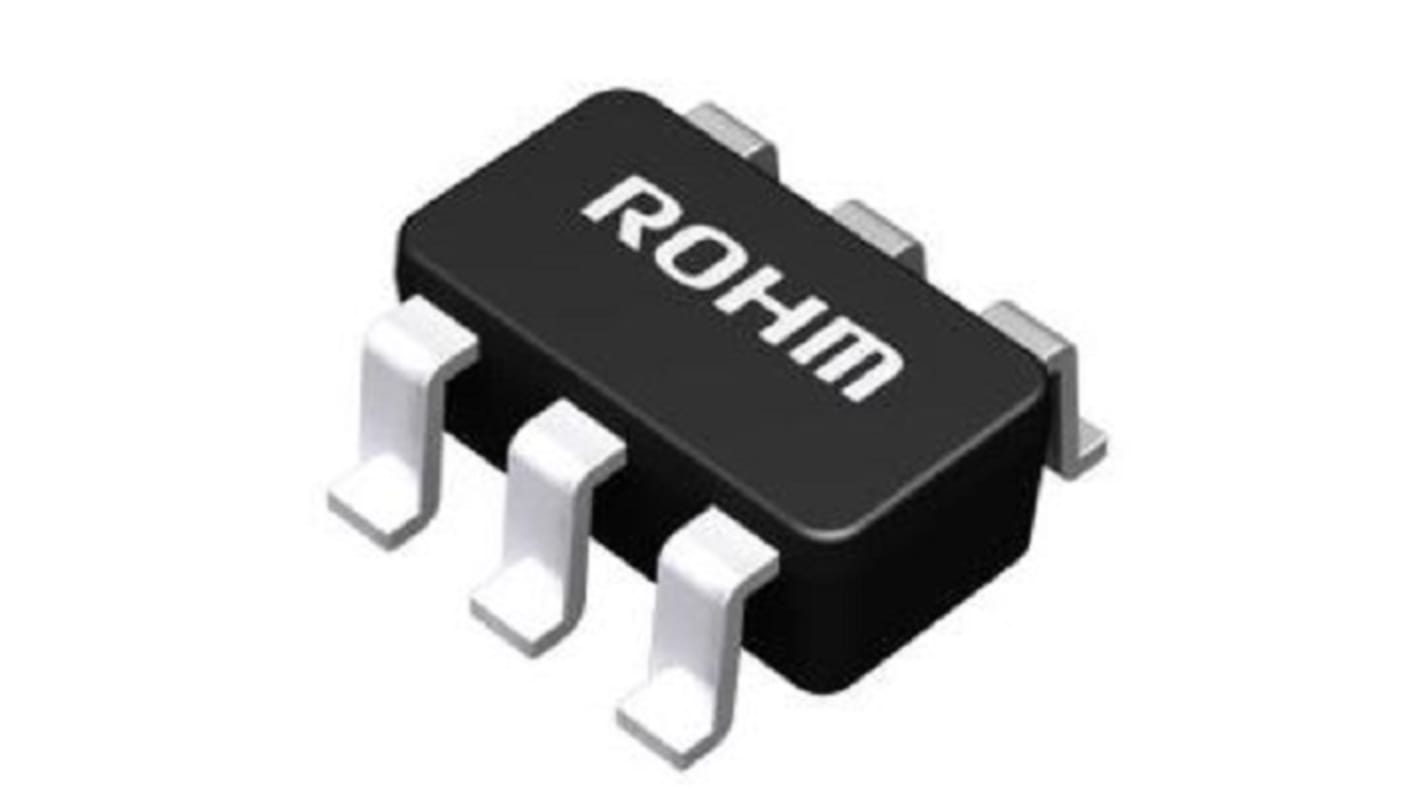

ROHM 1 CMOS Voltage Detector 6-Pin SSOP-6
- RS Stock No.:
- 240-3970
- Mfr. Part No.:
- BD48W00G-CTR
- Brand:
- ROHM
Subtotal (1 reel of 3000 units)*
£1,095.00
(exc. VAT)
£1,314.00
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.365 | £1,095.00 |
*price indicative
- RS Stock No.:
- 240-3970
- Mfr. Part No.:
- BD48W00G-CTR
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | CMOS Voltage Detector | |
| Sub Type | CMOS Voltage Detector | |
| Number of Supervisors | 1 | |
| Watchdog Timer | No | |
| Manual Reset | No | |
| Power Fail Detection | Yes | |
| Mount Type | Surface | |
| Package Type | SSOP-6 | |
| Pin Count | 6 | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 150°C | |
| Series | BD48W00G-C | |
| Standards/Approvals | RoHS | |
| Maximum Supply Voltage | 7V | |
| Automotive Standard | AEC-Q100 | |
| Minimum Supply Voltage | -0.3V | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type CMOS Voltage Detector | ||
Sub Type CMOS Voltage Detector | ||
Number of Supervisors 1 | ||
Watchdog Timer No | ||
Manual Reset No | ||
Power Fail Detection Yes | ||
Mount Type Surface | ||
Package Type SSOP-6 | ||
Pin Count 6 | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 150°C | ||
Series BD48W00G-C | ||
Standards/Approvals RoHS | ||
Maximum Supply Voltage 7V | ||
Automotive Standard AEC-Q100 | ||
Minimum Supply Voltage -0.3V | ||
The ROHM The ROHM window voltage detector IC is highly accurate, with low current consumption feature that uses CMOS process. It has dual N-channel open drain output. Detection voltage can be control by external resistors.
AEC-Q100 qualified
Functional safety supportive automotive products
Under and over voltage monitor
Very small, lightweight and thin package
