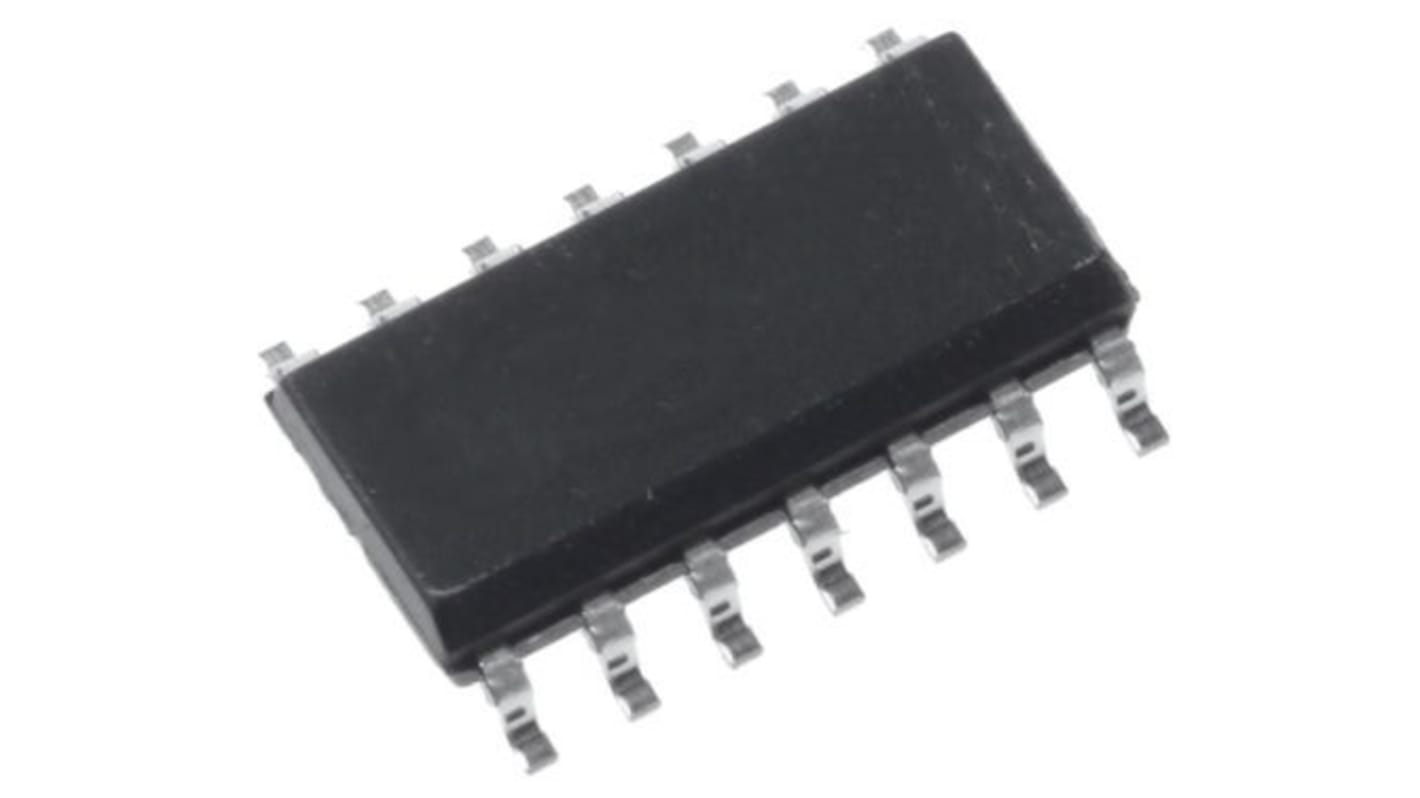

Maxim Integrated 5-Channel Voltage Monitor 14-Pin SOIC, MAX8216CSD+
- RS Stock No.:
- 191-3998
- Mfr. Part No.:
- MAX8216CSD+
- Brand:
- Maxim Integrated
Subtotal (1 tube of 50 units)*
£220.00
(exc. VAT)
£264.00
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 50 unit(s), ready to ship
Units | Per unit | Per Tube* |
---|---|---|
50 + | £4.40 | £220.00 |
*price indicative
- RS Stock No.:
- 191-3998
- Mfr. Part No.:
- MAX8216CSD+
- Brand:
- Maxim Integrated
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Maxim Integrated | |
Number of Supervisors | 5 | |
Mounting Type | Surface Mount | |
Package Type | SOIC | |
Pin Count | 14 | |
Dimensions | 8.75 x 4 x 1.5mm | |
Maximum Monitored Voltage | 15V | |
Maximum Operating Supply Voltage | 11 V | |
Minimum Operating Temperature | 0 °C | |
Minimum Monitored Voltage | -5V | |
Minimum Operating Supply Voltage | 2.7 V | |
Maximum Operating Temperature | +70 °C | |
Select all | ||
---|---|---|
Brand Maxim Integrated | ||
Number of Supervisors 5 | ||
Mounting Type Surface Mount | ||
Package Type SOIC | ||
Pin Count 14 | ||
Dimensions 8.75 x 4 x 1.5mm | ||
Maximum Monitored Voltage 15V | ||
Maximum Operating Supply Voltage 11 V | ||
Minimum Operating Temperature 0 °C | ||
Minimum Monitored Voltage -5V | ||
Minimum Operating Supply Voltage 2.7 V | ||
Maximum Operating Temperature +70 °C | ||
The MAX8215 contains five voltage comparators, four are for monitoring +5V, -5V, +12V, and -12V, and the fifth monitors any desired voltage. The MAX8216 is identical, except it monitors ±15V supplies instead of ±12V. The resistors required to monitor these voltages and provide comparator hysteresis are included on-chip. All comparators have open-drain outputs. These devices consume 250μA max supply current over temperature.
4 Dedicated Comparators plus 1 Auxiliary Comparator
5V Dedicated Comparator Has ±1.25% Accuracy
-5V, +12V, -12V, +15V, -15V Dedicated Comparators Have ±1.5% Accuracy
Overvoltage/Undervoltage Detection or Programmable Delay Using Auxiliary Comparator
Internal 1.24V Reference with ±1% Initial Accuracy
Wide Supply Range: 2.7V to 11V
Built-In Hysteresis
250μA Max Supply Current Over Temp.
Independent Open-Drain Outputs
All Precision Components Included
Applications
Data Acquisition Systems
Industrial Controllers
Industrial Equipment
Microprocessor Voltage Monitor: +5V, -5V, +12V, -12V Supply Monitoring (MAX8215), +5V, -5V, +15V, -15V Supply Monitoring (MAX8216)
Mobile Radios
Overvoltage/Undervoltage Detection with Uncommitted Comparator
Portable Instruments
5V Dedicated Comparator Has ±1.25% Accuracy
-5V, +12V, -12V, +15V, -15V Dedicated Comparators Have ±1.5% Accuracy
Overvoltage/Undervoltage Detection or Programmable Delay Using Auxiliary Comparator
Internal 1.24V Reference with ±1% Initial Accuracy
Wide Supply Range: 2.7V to 11V
Built-In Hysteresis
250μA Max Supply Current Over Temp.
Independent Open-Drain Outputs
All Precision Components Included
Applications
Data Acquisition Systems
Industrial Controllers
Industrial Equipment
Microprocessor Voltage Monitor: +5V, -5V, +12V, -12V Supply Monitoring (MAX8215), +5V, -5V, +15V, -15V Supply Monitoring (MAX8216)
Mobile Radios
Overvoltage/Undervoltage Detection with Uncommitted Comparator
Portable Instruments
