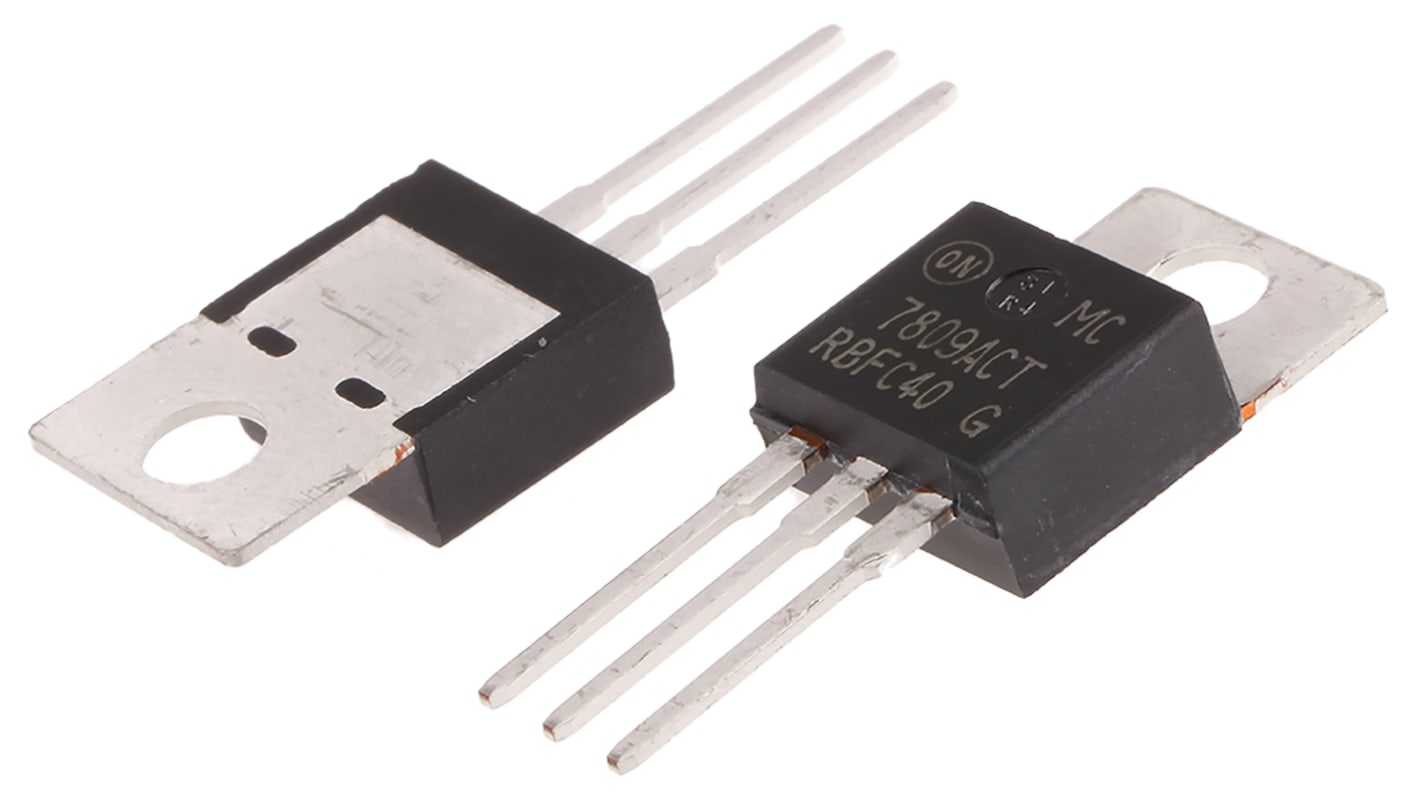

onsemi MC7809ACTG, 1 Linear Voltage, Voltage Regulator 2.2A, 9 V 3-Pin, TO-220

View all Voltage Regulators
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Packaging Options:
RS Stock No.:
785-6942
Mfr. Part No.:
MC7809ACTG
Brand:
onsemi
Find similar products by selecting one or more attributes.
Select all

Brand

onsemi

Regulator Type

Linear Voltage

Maximum Output Current

2.2A

Number of Outputs

1

Output Voltage

9 V

Line Regulation

16 mV

Load Regulation

25 mV

Polarity

Positive

Mounting Type

Through Hole

Package Type

TO-220

Quiescent Current

6mA

Pin Count

3

Power Rating

15W

Output Type

Fixed

Dimensions

10.28 x 4.82 x 15.75mm

Maximum Input Voltage

40 V dc

Maximum Operating Temperature

+125 °C

Height

15.75mm

Minimum Operating Temperature

0 °C

Length

10.28mm

Width

4.82mm
