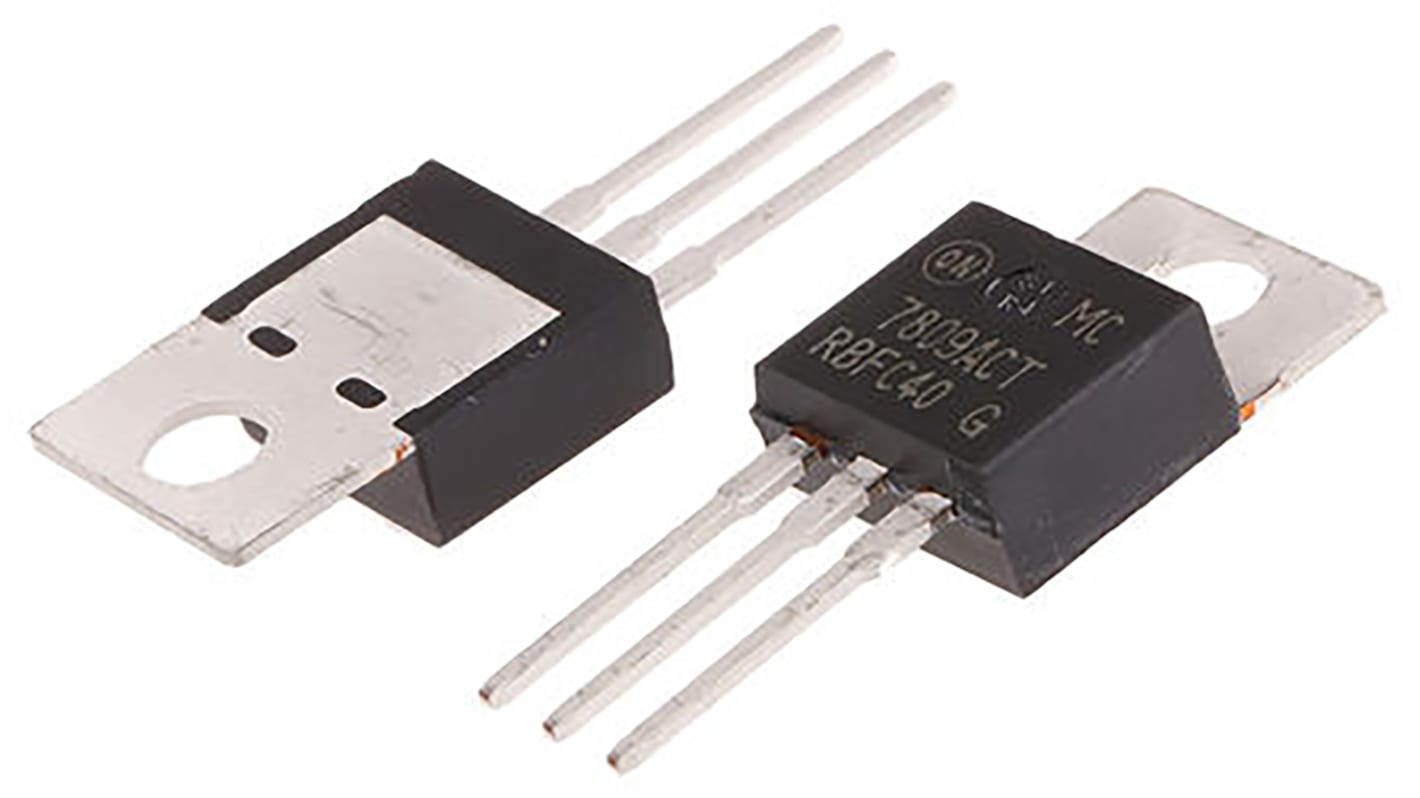

onsemi MC7809ACTG, Voltage Regulator 15 W 40V TO-220 3-Pin
- RS Stock No.:
- 121-6354
- Mfr. Part No.:
- MC7809ACTG
- Brand:
- onsemi
Subtotal (1 tube of 50 units)*
£20.30
(exc. VAT)
£24.35
(inc. VAT)
FREE delivery for orders over £50.00
Stock information currently inaccessible
Units | Per unit | Per Tube* |
|---|---|---|
| 50 + | £0.406 | £20.30 |
*price indicative
- RS Stock No.:
- 121-6354
- Mfr. Part No.:
- MC7809ACTG
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Product Type | Voltage Regulator | |
| Package Type | TO-220 | |
| Polarity | Positive | |
| Mount Type | Through Hole | |
| Quiescent Current | 6mA | |
| Pin Count | 3 | |
| Power Rating | 15W | |
| Series | MC78xx | |
| Width | 4.82 mm | |
| Length | 10.28mm | |
| Height | 15.75mm | |
| Maximum Input Voltage | 40V | |
| Maximum Operating Temperature | 125°C | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Product Type Voltage Regulator | ||
Package Type TO-220 | ||
Polarity Positive | ||
Mount Type Through Hole | ||
Quiescent Current 6mA | ||
Pin Count 3 | ||
Power Rating 15W | ||
Series MC78xx | ||
Width 4.82 mm | ||
Length 10.28mm | ||
Height 15.75mm | ||
Maximum Input Voltage 40V | ||
Maximum Operating Temperature 125°C | ||
- COO (Country of Origin):
- MY
7809 Linear Voltage Regulator, ON Semiconductor
Linear Voltage Regulators, ON Semiconductor
