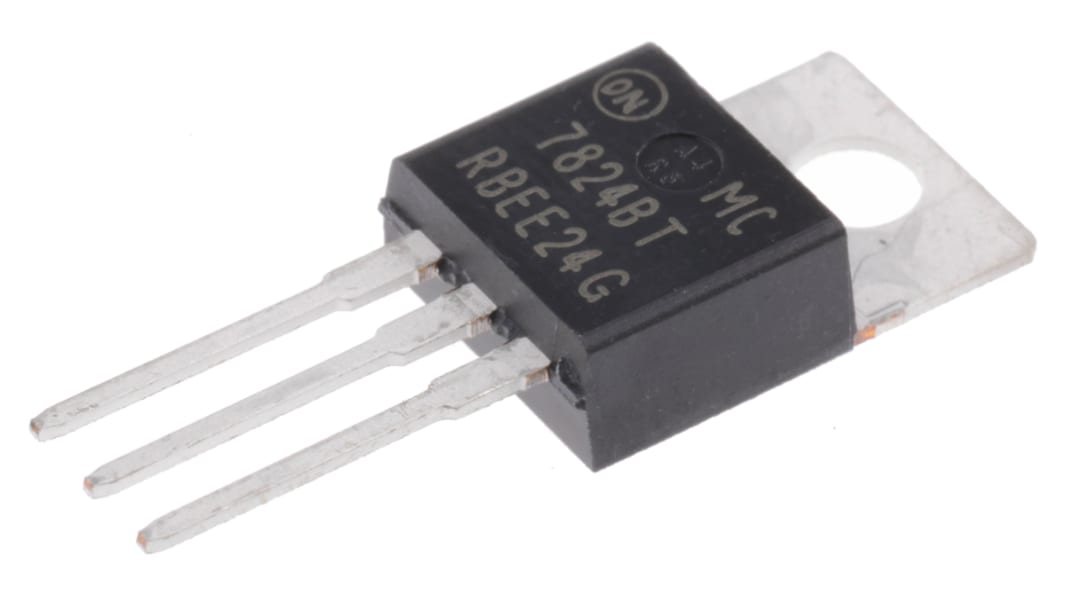

onsemi MC7824BTG, 1 Linear Voltage, Voltage Regulator 1A, 24 V 3-Pin, TO-220

View all Voltage Regulators
Bulk discount available

Subtotal (1 pack of 10 units)*

£3.43

(exc. VAT)

£4.12

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 50 unit(s) ready to ship
  • Plus 220 unit(s) ready to ship from another location
  • Plus 410 unit(s) shipping from 29 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
10 - 90£0.343£3.43
100 - 240£0.296£2.96
250 - 490£0.256£2.56
500 - 990£0.225£2.25
1000 +£0.205£2.05

*price indicative

Packaging Options:
RS Stock No.:
785-6998
Mfr. Part No.:
MC7824BTG
Brand:
onsemi
Find similar products by selecting one or more attributes.
Select all

Brand

onsemi

Maximum Output Current

1A

Regulator Type

Linear Voltage

Number of Outputs

1

Output Voltage

24 V

Line Regulation

480 mV

Load Regulation

480 mV

Polarity

Positive

Mounting Type

Through Hole

Package Type

TO-220

Quiescent Current

8mA

Pin Count

3

Output Type

Fixed

Power Rating

15W

Dimensions

10.28 x 4.82 x 15.75mm

Height

15.75mm

Maximum Operating Temperature

+125 °C

Minimum Operating Temperature

-40 °C

Maximum Input Voltage

40 V dc

Length

10.28mm

Width

4.82mm

7824 Linear Voltage Regulator, ON Semiconductor



Linear Voltage Regulators, ON Semiconductor
