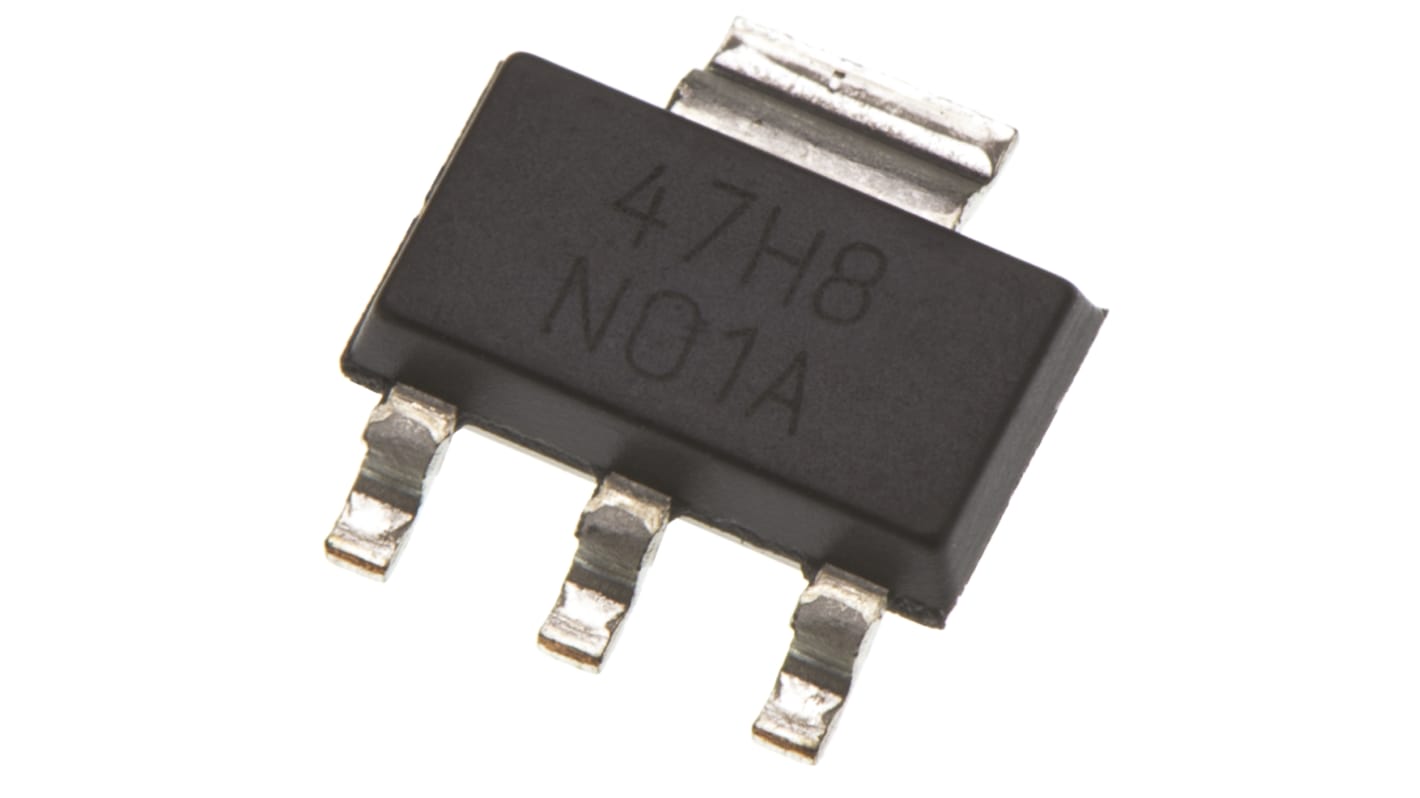

Texas Instruments, 1.2 → 37 V Linear Voltage Regulator, 1A, 1-Channel, Adjustable 3+Tab-Pin, SOT-223

View all Voltage Regulators
Discontinued
Packaging Options:

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
onsemi LM317D2TG, 1 Linear Voltage, Voltage Regulator 1.5A, 1.2 → 37 V 3-Pin, D2PAK
RS Stock No.
464-097

Each (In a Pack of 10)

£0.812

(exc. VAT)

£0.974

(inc. VAT)

RS Stock No.:
533-5705
Mfr. Part No.:
LM317EMP/NOPB
Brand:
Texas Instruments
Find similar products by selecting one or more attributes.
Select all

Brand

Texas Instruments

Maximum Output Current

1A

Output Voltage

1.2 → 37 V

Number of Outputs

1

Line Regulation

0.04 %/V

Load Regulation

0.5 %

Mounting Type

Surface Mount

Polarity

Positive

Package Type

SOT-223

Reference Voltage

1.25V

Pin Count

3+Tab

Output Type

Adjustable

Dimensions

6.5 x 3.56 x 1.6mm

Height

1.6mm

Minimum Operating Temperature

0 °C

Maximum Input Voltage

40 V

Maximum Operating Temperature

+125 °C

Minimum Input Voltage

4.2 V

Length

6.5mm

Width

3.56mm

LM117/LM317 Adjustable Voltage Regulators


The Texas Instruments LM117/LM317 series of adjustable three-terminal positive voltage regulators are available with current ratings of 0.1, 0.5 and 1.5A. Output voltage range is from 1.25 V to 37 V and is set by two external resistors. These robust and reliable devices incorporate current limiting, thermal overload protection, and safe operating area protection.

Output Voltage Range: 1.2 V to 37 V
Output Current: 1.5 A (LM317), 0.5 A (LM317M), 0.1 A (LM317L)
Typical line regulation: 0.01%
Typical load regulation: 0.1%


Linear Voltage Regulators, Texas Instruments


A range of fixed and adjustable Linear Voltage regulators from Texas Instruments. The range includes both positive and negative polarity devices with output current ratings from 100mA up to 5A.
