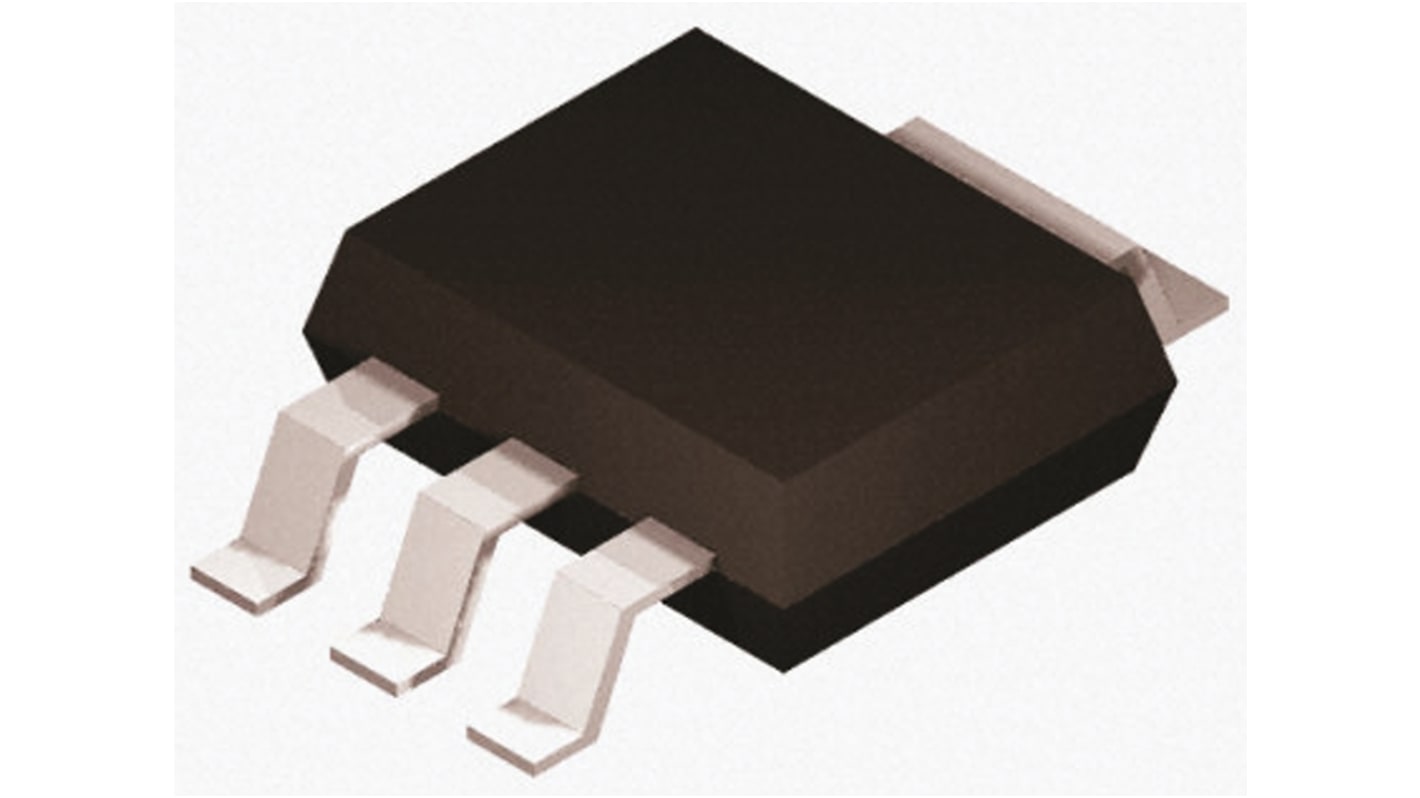

Texas Instruments TLV1117LV15DCYT, 1 Low Noise LDO, Voltage Regulator 1A, 1.5 V 3+Tab-Pin, SOT-223
- RS Stock No.:
- 162-7840
- Mfr. Part No.:
- TLV1117LV15DCYT
- Brand:
- Texas Instruments
Available to back order for despatch when stock is available
Added
Price Each (On a Reel of 250)
£0.191
(exc. VAT)
£0.229
(inc. VAT)
| Units | Per unit | Per Reel* |
| 250 + | £0.191 | £47.75 |
| *price indicative | ||
- RS Stock No.:
- 162-7840
- Mfr. Part No.:
- TLV1117LV15DCYT
- Brand:
- Texas Instruments
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
LDO (Low Dropout) Linear Voltage Regulators, 1A, TLV11 Series, Texas Instruments
LDO (Low Dropout) Linear Voltage Regulators, Texas Instruments
A range of Texas Instruments Low Dropout (LDO) Linear Voltage regulators. LDO voltage regulators are able to operate with a small input-output differential making them suitable for a variety of applications where conventional regulators would be unsatisfactory. The latest generation of LDO regulators offers low quiescent current levels and reduced output noise together with excellent line voltage regulation and high PSRR.
Specifications
Attribute | Value |
|---|---|
| Regulator Type | Low Noise LDO |
| Maximum Output Current | 1A |
| Output Voltage | 1.5 V |
| Number of Outputs | 1 |
| Line Regulation | 5 mV |
| Load Regulation | 35 mV |
| Accuracy | 2% |
| Mounting Type | Surface Mount |
| Polarity | Positive |
| Package Type | SOT-223 |
| Quiescent Current | 100µA |
| Pin Count | 3+Tab |
| Output Type | Fixed |
| Dimensions | 6.7 x 3.7 x 1.7mm |
| Minimum Input Voltage | 2 V |
| Minimum Operating Temperature | -40 °C |
| Height | 1.7mm |
| Maximum Operating Temperature | +125 °C |
| Maximum Input Voltage | 5.5 V |
| Length | 6.7mm |
| Width | 3.7mm |
